Self-Contained Siren or Siren/Strobe
Features:
9~15 VDC
Low current draw
120dB Warble-tone siren
25W Speaker (siren and speaker input
cannot be connected at the same time)
Audio input can be used for broadcast
Built-in tamper alarm output
Easy installation
SH-816S-BQ
SH-816S-SQ/x*
*Replace "x" with the first letter of the lens color, amber, clear, blue, red.
®
Manual
Siren
Siren/Strobe
Weatherproof for outdoor/indoor use, IP65
Mount directly to wall or to most common
back boxes
In addition to the above, SH-816S-SQ adds:
Bright xenon tube strobe light
Strobe can be triggered separate from siren
Strobe available in amber, clear, blue, or red

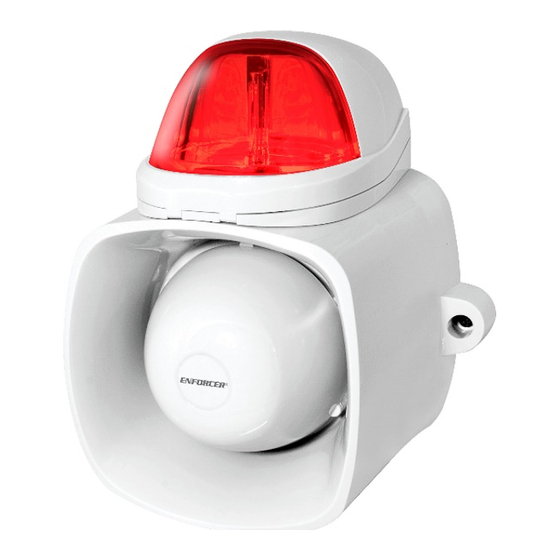

SH-816S-SQ/R shown
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SECO-LARM Enforcer SH-816S-SQ Series
Summary of Contents for SECO-LARM Enforcer SH-816S-SQ Series
- Page 1 Self-Contained Siren or Siren/Strobe Manual SH-816S-SQ/R shown SH-816S-BQ Siren SH-816S-SQ/x* Siren/Strobe *Replace "x" with the first letter of the lens color, amber, clear, blue, red. Features: 9~15 VDC Weatherproof for outdoor/indoor use, IP65 Low current draw Mount directly to wall or to most common ...
- Page 2 Housing material White polycarbonate plastic Dimensions "x4 "x4 " (155x126x115 mm) "x7"x4 " (155x178x115 mm) Weight 1-lb 13-oz (812g) 2-lb 2-oz (957g) Overview: Siren/Strobe Siren " (115mm) " (155mm) " (155mm) " (115mm) 7" (178mm) " (126mm) SECO-LARM U.S.A., Inc.
- Page 3 Fig. 3 Wiring terminals the terminal plugs are correctly engaged (see Fig. 1). 7. Attach the main unit to the back using the two screws removed in step 2. STROBE TAMPER +12VDC TAMPER SPEAKER SPEAKER SIREN +12VDC SECO-LARM U.S.A., Inc.
- Page 4 WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if...
