Wireless Entry Alert System
E-931CS22RFCQ
Installation Manual

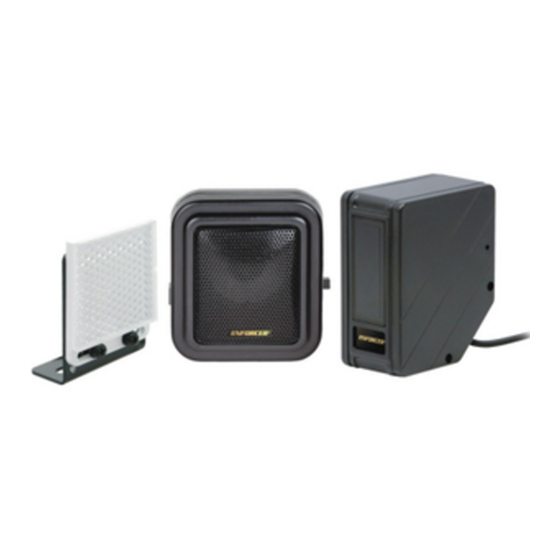

The ENFORCER Wireless Entry Alert System is a self-contained easy-to-install alert system for
commercial or home applications. Each set contains a reflective photoelectric beam sensor that,
when tripped, communicates wirelessly with a speaker installed up to 328ft (100m) away*.
Additional speakers may be installed to alert more than one area on the property.
• For monitoring a driveway or for use as an entrance indicator
• No wiring necessary between sensor and speaker
• Sensor range: Up to 22ft (7m)
• Sensor is weatherproof for outdoor use
• Speaker makes chime or alarm sound if beam is interrupted
• Wireless range: Up to 328ft (100m) between the sensor and speaker
• Each sensor can be paired with an unlimited number of speakers
• Each speaker can be paired with up to 5 sensors
*Range may vary depending on the installation and operating environment.
Advertisement
Related Manuals for SECO-LARM ENFORCER E-931CS22RFCQ
Summary of Contents for SECO-LARM ENFORCER E-931CS22RFCQ
- Page 1 Wireless Entry Alert System E-931CS22RFCQ Installation Manual The ENFORCER Wireless Entry Alert System is a self-contained easy-to-install alert system for commercial or home applications. Each set contains a reflective photoelectric beam sensor that, when tripped, communicates wirelessly with a speaker installed up to 328ft (100m) away*. Additional speakers may be installed to alert more than one area on the property.
- Page 2 3. Adjust the timer duration by turning the timer adjustment screw using the included screwdriver. Maximum clockwise sets the timer for 30 seconds; maximum counter-clockwise sets the timer for 3 seconds. NOTE: Timer mode only applies if Alarm is chosen as the alert tone. SECO-LARM U.S.A., Inc.
- Page 3 2. Test the counter. Each time the beam is broken, the counter should automatically increase by 1. 3. Manually add or subtract 1 by pressing the "+" or "-" buttons 4. Reset the counter by pressing RESET. SECO-LARM U.S.A., Inc.
- Page 4 SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
