Transmits up to 1,300ft (400m)
color video or up to 1,950ft (600m)
B/W video
Passive operation – No external
power required
High immunity from interference
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
Passive Video Baluns
Installation Manual
EB-P101-01Q
Passive Video Balun
EB-P101-20Q
Passive Video Balun with 6" Pigtail
Uses low-cost Cat5e/6 cable
instead of costly coaxial cable
Screwless terminal blocks for
easy installation
Small size allows mounting of
multiple baluns behind a DVR
Advertisement
Related Manuals for SECO-LARM ENFORCER EB-P101-01Q
Summary of Contents for SECO-LARM ENFORCER EB-P101-01Q

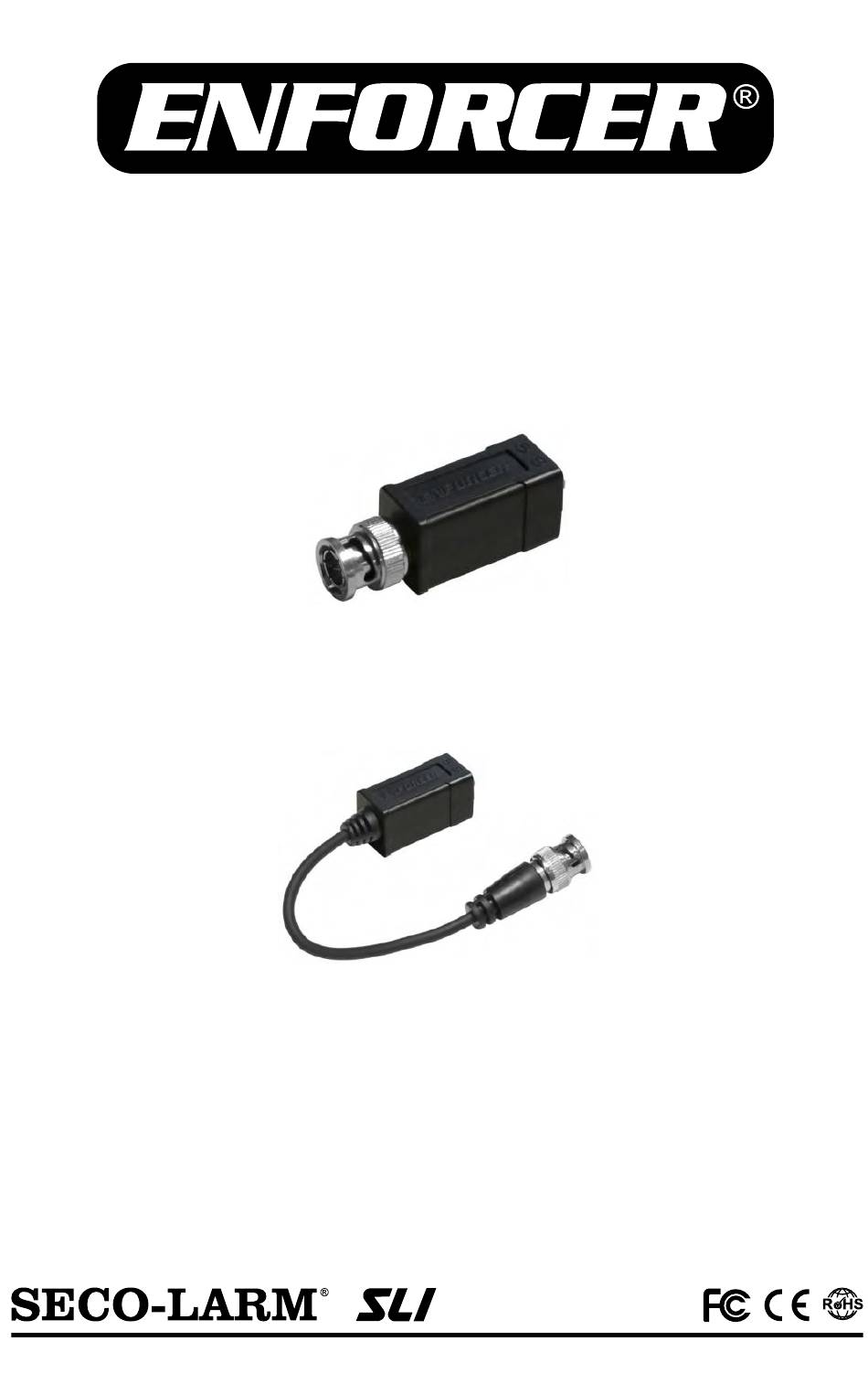

- Page 1 Passive Video Baluns Installation Manual EB-P101-01Q Passive Video Balun EB-P101-20Q Passive Video Balun with 6” Pigtail Transmits up to 1,300ft (400m) Uses low-cost Cat5e/6 cable color video or up to 1,950ft (600m) instead of costly coaxial cable B/W video ...
- Page 2 10 x Passive video baluns with 6” pigtail 1 x Manual 1 x Manual Overview: EB-P101-01Q ” Screwless (15mm) Connector terminal blocks ” (46mm) ” (15mm) EB-P101-20Q Screwless Connector terminal blocks ” (15mm) ” 4” 2” ” (102mm) (51mm) (15mm) (30mm) SECO-LARM U.S.A., Inc.
- Page 3 DVR. ENFORCER Dome Camera Passive Video Baluns Elite 3X connected to a DVR Dome Camera Elite 3X Bullet Camera Note: Shorter range may result when used with a DVR. SECO-LARM U.S.A., Inc.
- Page 4 SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
