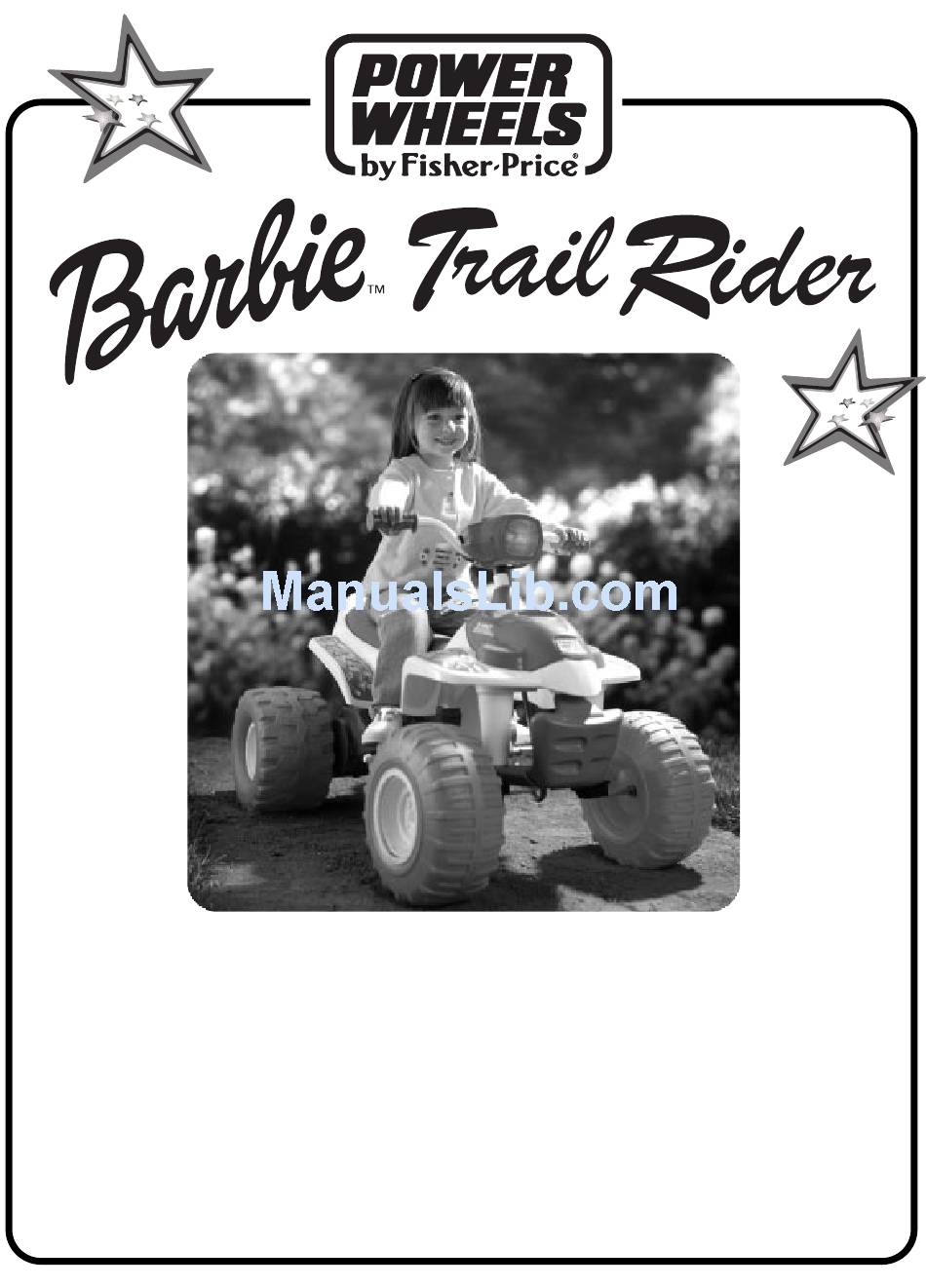

Product features may vary from the picture above.
Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 78476
Tools needed for assembly: Phillips Screwdriver, Slotted Screwdriver, Hammer,
and Pliers (not included); Cap Nut Assembly Tool (included).
Use only with a Power Wheels
®
6 Volt Lead-Acid Rechargeable Battery with A-Style Connector
and built-in thermal fuse and a Power Wheels
®
Super 6
™
Volt Charger (both included).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 78476 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price 78476

Summary of Contents for Fisher-Price 78476

  • Page 1 Owner’s Manual with Assembly Instructions Please read this manual and save it with your original sales receipt. For Model 78476 Tools needed for assembly: Phillips Screwdriver, Slotted Screwdriver, Hammer, and Pliers (not included); Cap Nut Assembly Tool (included). Use only with a Power Wheels ®...

  • Page 2: Table Of Contents

    Important Information ..............2 Warnings .

  • Page 3: Warnings

    • Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.

  • Page 4: Parts

    • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 5 Console Steering Bushing Foam Spacer* Not Shown: Label Sheet, Literature Bag * Do not discard the foam spacer packaged with the battery. Save it for use in the vehicle's battery compartment. Cap Nut – 6 * For your convenience, extra washers, screws and cap nuts may have been included. #6 x "...

  • Page 6: Parts Diagram

    Vehicle Body Cowling Seat Rear Wheel - 2 Rear Hubcap - 2 Cap Nut - 6 Steering Column Front Wheel - 2 Front Hubcap - 2 Console - Upper Parts Diagram Console - Headlight Console - Lower Microphone 6 Volt Battery Hand Grip - 2 Handlebar "...

  • Page 7: Battery Charging

    WARNING • The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury. • Never allow children to charge the battery. Battery charging must be done by adults only.
  • Page 8 A-Style Charger Connector A-Style Battery Connector Incorrect • Plug the charger and battery connectors together. Push firmly to make sure the two connectors are completely joined. Battery Charging NO GAP • Plug the charger into a standard 120 volt wall outlet. Correct Note: If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”.

  • Page 9: Assembly

    • Fit a cap nut onto one end of the rear axle. • Tap the other end of the rear axle with a hammer to secure the cap nut on the end of the rear axle. Note: You may want to position the cap nut on a scrap block of wood to protect the assembly surface.
  • Page 10 Bushing Rear Hubcap Cap Nut Cap Nut Assembly Tool Rear Wheel Driver • Slide a washer onto the rear axle. • Slide the rear wheel driver onto the rear axle. Make sure the rear wheel driver fits onto the pins on the motor assembly.
  • Page 11 Front Side Shifter Handle • Press the tab under the back of the seat and lift to remove the seat. • Fit the rectangular opening in the cowling over the shifter handle. • Align the front, side and rear tabs on the cowling with the slots in the vehicle body but do not snap the tabs into the slots.
  • Page 12 Lower Console #6 x " screw #8 x 1" screw Note: For packaging reasons, the console/headlight has been pre-assembled at the factory. You will need to disassemble the console/headlight to assemble it to the handlebar. • Loosen and remove the #6 x with a Phillips screwdriver.
  • Page 13 Steering Column • Fit a cap nut on the curved end of the steering column. • Support the steering column and tap the cap nut with a hammer to secure it on the end of the steering column. • Position the vehicle body upright. Helpful Hint: You may want the help of another adult to support the steering column near the steering linkage while assembling the handlebar to the vehicle body.
  • Page 14 BARBIE is a U.S. trademark of Mattel, Inc. Dash and Rear View • Apply labels as shown. For best results, make sure your hands and the areas to which the labels will be applied are clean and dry. Assembly Handgrip Handlebar •...

  • Page 15: Label Decoration

    Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...
  • Page 16 Label Decoration Left Side...

  • Page 17: Battery Installation

    Important Note: Use only a Power Wheels A-style connector and built-in thermal fuse. Use of any other battey can damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels Super 6 ®...

  • Page 18: Battery Care And Disposal

    Battery Care and Disposal Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.

  • Page 19: Rules For Safe Driving

    WARNING • Adult supervision is required. Children do not have the judgement necessary to avoid many accidents. Be sure that children operating this vehicle can do so safely and that they are supervised at all times. • Never use near steps, driveways, steep inclines, roadways, alleys, swimming pool areas or other bodies of water.

  • Page 20: How To Operate Your Vehicle

    How to Operate Your Vehicle Driving Forward Shifter • Make sure the shifter is in the DRIVE position • Press the foot pedal. The vehicle will drive forward at a maximum of 3 mph. • Help your child practice steering to learn how far and how quickly to turn the handlebar when driving forward.

  • Page 21: Problems And Solutions Guide

    Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels toll-free at 1-800-348-0751 between 8 AM and 5 PM (EST) Monday through Friday. Or, contact your local Power Wheels the Authorized Service Center list beginning on page 24.
  • Page 22 Vehicle was running but suddenly stopped Problems and Solutions Guide Problem Vehicle was running but Tripped thermal fuse suddenly stopped (cont.) Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse Vehicle runs sluggishly...
  • Page 23 Problems and Solutions Guide Problem Problem Vehicle runs sluggishly (cont.) Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Sometimes the vehicle doesn’t Loose wire or connector run, but other times it does Motor or electrical switch damage When the foot pedal is pressed, Loose wire or connector the vehicle won’t run without...

  • Page 24: Authorized Service Centers

    We are continually expanding our Authorized Service Center Network. Please check this listing for the Authorized Service Center nearest you. If there is not one in your area, please call Power Wheels ® ALABAMA BIRMINGHAM - Frigid Service & Sales, 701 Graymont Ave.
  • Page 25 INDIANAPOLIS - Sullivan Hardware Do-It Center, 7021 N. Keystone, 46220, (317) 255-9230 NEW ALBANY - Wells Hardware, Inc., 1011 Vincennes Street, 47150, (812) 944-4523 SOUTH BEND - Ray’s TV and Appliance, 60717 US 31 South, 46614, (219) 291-1630 SOUTH BEND (OSCEOLA) - AAA Appliance Service Co., 11868 Lincoln Way West, 46561, (219) 679-4981 TERRE HAUTE - Corey Electronics,1101 S.
  • Page 26 HICKORY - First Flight Bicycles, 2435 N. Center Street, 28601, (704) 324-9350 RALEIGH - Authorized Appliance Service Center, 800 North Person Street, 27604, (919) 834-3476 STATESVILLE - First Flight Bicycles, 216 S. Center St., 28677, (704) 878-9683 WILMINGTON - American Tool & Tractor, 102 Eastwood Road, Ste.
  • Page 28 Authorized Service Center list in this manual. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2000 Mattel, Inc. All rights reserved. Fisher-Price, Power Wheels by Fisher-Price and BARBIE are U.S. trademarks of Mattel, Inc. Printed in the U.S.A.
