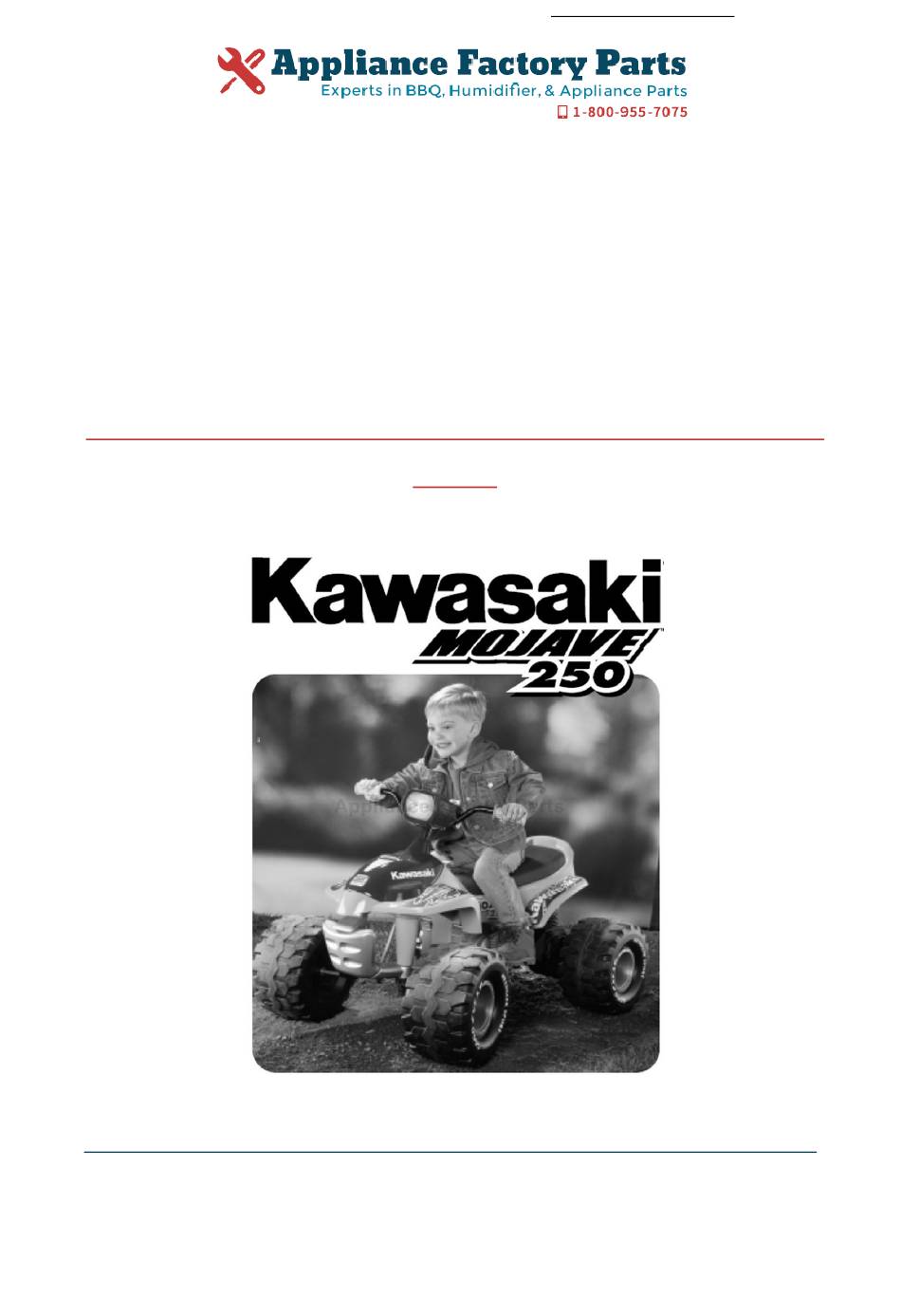

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE 78473 Owner's Manual Shop genuine replacement parts for FISHER PRICE 78473 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...
  • Page 2 Goodyear (and winged foot design) and Wrangler (for tires) are trademarks of The Goodyear Tire & Rubber Company, used with permission. Fisher-Price, Power Wheels by Fisher-Price, Power Lock and Power Stick are U.S. trademarks of Mattel, Inc. Owner’s Manual with Assembly Instructions For Model 78473 Please read this manual and save it with your original sales receipt.

  • Page 3: Table Of Contents

    Table of Contents Important Information ..............2 Warnings and Cautions .

  • Page 4: Warnings And Cautions

    Warnings and Cautions ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery clamp. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.

  • Page 5: Parts

    Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 6 Parts Console Assembly Microphone 6 Volt Charger (Upper, Lower, Headlight) 6 Volt Battery Handlebar Steering Bushing Rear Axle Cap Nut Foam Spacer* Handlebar Neck Assembly Tool Round Bushing - 2 Hex Bushing - 4 Not Shown: Label Sheet * Do not discard the foam spacer packaged with the battery. Save it for use in the vehicle's battery compartment. #8 x 1"...

  • Page 7: Parts Diagram

    Parts Diagram Note: Some parts are assembled on both sides of the vehicle. This illustration shows assembly on right side only. 2" Screw - 2 Microphone Vehicle Body 6 Volt Battery Rear Axle Cowling Hand Grip - 2 Steering Bushing Seat Handlebar #6 x...

  • Page 8: Battery Charging

    Battery Charging ELECTRICAL HAZARD About Thermal Fuses Your Power Wheels ® battery is equipped with a built-in thermal fuse. The thermal fuse is a self-resetting safety WARNING device which automatically “trips” and shuts down operation of the vehicle if the vehicle is overloaded or the driving conditions too severe.
  • Page 9 Battery Charging A-Style Charger Connector A-Style Battery Connector NO GAP • Plug the charger into a standard 120 volt wall outlet. Incorrect Correct Note: If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”. •...

  • Page 10: Assembly

    Assembly Vehicle Body WARNING Rear Axle Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children Motor Assembly Pins should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 11 Assembly Front Axle Hex Bushing Washer Bushing Hubcap Round Cap Nut Cap Nut Bushing Assembly Tool Wheel Hubcap Cap Nut Cap Nut Assembly Tool Rear Washer Wheel Driver • Slide a washer onto one of the front axles. • Slide a washer onto the rear axle. •...
  • Page 12 Assembly Front Tabs Front Tabs PRESS HERE To Snap Side Tabs Cowling Side Side Tabs Tabs Rear Tab Shifter Handle Harness Wires Channel • Press firmly on each side of the cowling to snap the four side tabs into the slots in the vehicle body. Make sure the rear tab stays aligned with the slots.
  • Page 13 Assembly #8 x 1" Screws Lower Console/Headlight Upper Console Handlebar Headlight Lower Console Neck #6 x " Screw #6 x " Screw #8 x 1" Screw • Position the handlebar upright. IMPORTANT! For packaging reasons, the console/headlight • Fit the neck under the handlebar, with the holes in the has been pre-assembled at the factory.
  • Page 14 Cap Nut Steering Column Handlebar Steering Assembly Column Cap Nut • Fit a cap nut on the curved end of the steering column. • Support the steering column and tap the cap nut with a • Slide the handlebar assembly onto the steering column, hammer to secure it on the end of the steering column.
  • Page 15 Assembly Microphone "T" End Handgrip Hole ® Handlebar • Bend the plastic tip at the end of the microphone cord so that it forms a "T". • Insert the "T" end of the microphone cord into the hole in the console. Pull gently on the microphone cord to make sure it is secure in the console.

  • Page 16: Label Decoration

    Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...
  • Page 17 Label Decoration ® Left Side...

  • Page 18: Battery Installation

    Battery Installation IMPORTANT! Use only a Power Wheels ® battery with Motor A-style connector and built-in thermal fuse. Use of any Harness other battery can damage your vehicle. Make sure Connector that you charge the battery for at least 18 hours using the enclosed Power Wheels ®...

  • Page 19: Battery Care And Disposal

    Battery Care Battery Care and Disposal and Disposal Care Disposal If a battery leak develops, avoid contact with the leaking • Your Power Wheels ® battery is a sealed lead-acid acid and place the damaged battery in a plastic bag. See battery.

  • Page 20: Rules For Safe Driving

    Rules for Safe Driving RIDING HAZARD WARNING Prevent Injuries and Deaths • Direct Adult Supervision Required • Keep Children Within Safe Riding Areas These areas must be: - away from swimming pools and other Use vehicle on generally level ground ONLY! bodies of water to prevent drownings - generally level to prevent tipovers 7.

  • Page 21: How To Operate Your Vehicle

    How to Operate Your Vehicle Driving Forward To Stop Shifter • Your vehicle has a patented, electronic braking system that automatically stops the vehicle when your child’s foot is lifted from the pedal. • Make sure your child is comfortable with steering the vehicle and automatically knows how to stop.

  • Page 22: Problems And Solutions Guide

    Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels authorized service center.
  • Page 23 Problems and Solutions Guide Problem Possible Cause Solution Vehicle was running but Loose wire or loose connectors Check all wires and connectors. Make sure the battery suddenly stopped connector is tightly plugged into the motor harness connector, and that there are no loose wires around the motors.
  • Page 24 Problems and Solutions Guide Problem Possible Cause Solution Problem Possible Cause Solution Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the first time. After first-time use, recharge the battery for at least 14 hours after each use.

  • Page 25: Authorized Service Centers

    Authorized Service Centers We are continually expanding our Authorized Service Center Network. Please check this listing for the Authorized Service Center nearest you. If there is not one in your area, please call Power Wheels ® Consumer Relations at 1-800-348-0751. ALABAMA CALIFORNIA GRAND JUNCTION - V &...
  • Page 26 Authorized Service Centers ORLANDO - Southern Electric Co., 510 N. HAWAII FT. WAYNE - Southside Vacuum Co. Inc., Parramore Avenue, 32801, (407) 841-8824, 3702 South Calhoun Street, 46807, HONOLULU - McCully Bicycle & Sporting (800) 940-8824 (219) 745-7788, (888) 209-8113 Goods, 932 Hausten Street, 96826, PANAMA CITY - Callaway Vacuum &...
  • Page 27 Authorized Service Centers KENTUCKY LOWELL - Lowell Appliance Service Center, Inc., MINNESOTA 564 Dutton Street, 01854, (508) 454-8731 GREENVILLE – Malone Lumber Do-It Center, BLAINE - Barness #1, 8701 Central Ave. NE, 204 W. Depot Street, 42345, (270) 338-3252 MAYNARD - Gramp’s Garage, 16 Main Street, 55434, (763) 780-7229 01754, (508) 461-0463 LEXINGTON - AutoHobby Model Raceway,...
  • Page 28 Authorized Service Centers NORTH PLATTE - Sperry TV, 1855 West A EAST AURORA - Sem-Fab of Western NewYork, FARGO - General Parts & Supply Co., 10 S. 18th Street, Westfield Shopping Center, 69010, 455 Olean Road, 14052, (716) 655-5228 Street, 58103, (701) 235-4161, (800) 279-9987 (308) 532-5200 ELMIRA - Capabilities, Inc., 1149 Sullivan Street, OHIO...
  • Page 29 Authorized Service Centers OREGON PUERTO RICO TEXAS EUGENE - Oldfield’s, 1465 West 7th, 97402, MAYAGUEZ - Cardona Appliance Service, AMARILLO - Reid’s Appliance Service, Inc., (541) 485-6000, (800) 944-0238 8 San Vicente Sreet, 00680, (787) 832-8366 906 Georgia, 79102, (806) 373-8812 PORTLAND - Appliance Repair Central, MAYAGUEZ - AAA Melendez Rental, AUSTIN - Harrell Supply and Service, Inc.,...
  • Page 30 Authorized Service Centers VIRGINIA WASHINGTON HARRISVILLE - Western Auto, 1107 E. Main St., 26362, (304) 643-2226 BLACKSTONE - Bevell’s True Value Hardware, ARLINGTON - Cordz Limited, 105 North Olympic 109 North High Street, 23824, (804) 292-7208, Avenue, 98223, (360) 435-2471 HUNTINGTON - Mike’s Appliance and Service, (800) 883-1270 212 20th Street, 25703, (304) 522-0737...

  • Page 31: O Statement Of Limited Warranty

    Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the Power Wheels ® 6 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®...
  • Page 33 Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2001 Mattel, Inc. All rights reserved. Fisher-Price, Power Wheels by Fisher-Price, Power Lock and Power Stick are U.S. trademarks of Mattel, Inc. ® and ™ designate U.S. trademarks of Mattel, Inc.
