CHAPTER FOUR:
HARDWARE CONFIGURATION
The following iMcV-FiberLinX features are hardware configurable only:
selecting management port, host/remote/standalone selection, and Half-
Duplex on the fiber port. The iMcV-FiberLinX includes the AutoCross fea-
ture which is hard-coded. You can also use the EXT MGMT port on iMcV-
FiberLinX as a serial port.
AutoCross Feature for Twisted Pair Connection
All twisted pair ports on the iMcV-FiberLinX include AutoCross, a feature
that automatically selects between a crossover workstation or pass-through
connection depending on the connected device. A MDI/MDIX button is
not required.

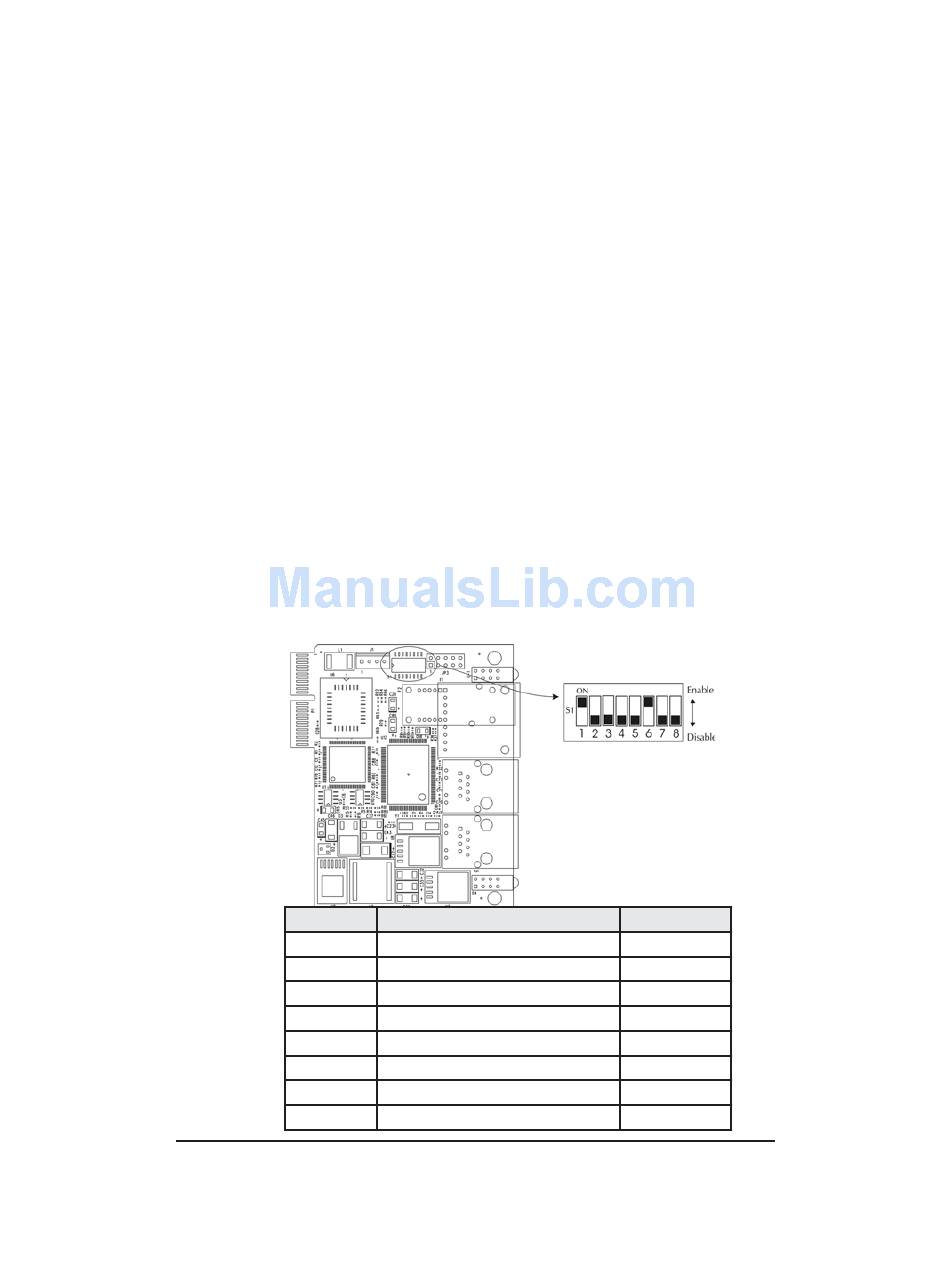

DIP Switch Settings
Before installing the iMcV-FiberLinX, set all features which are hardware-
configurable. Use the DIP switches, located at position S1 on iMcV-
FiberLinX, for configuration.
S
WITCH
1
2
3
4
5
6
7
8

Figure H: Dipswitch Settings

F
UNCTION
SNMP on EXT MGMT port
SNMP on DATA port
SNMP on OPTICS port
Half-Duplex on OPTICS port
Factory Use — Do not change
Basic Mode
Remote Unit
Host Unit
12
D
EFAULT
ON
OFF
OFF
OFF
OFF
ON
OFF
OFF
