Non-VLAN Environment
Host/Remote Application— No VLAN IDs
When deploying iMcV-FiberLinX in pairs and NOT assigning VLAN IDs,
use the iMcV-FiberLinX's Basic Mode. This mode includes a pre-defined
group of settings, providing for easy configuration.

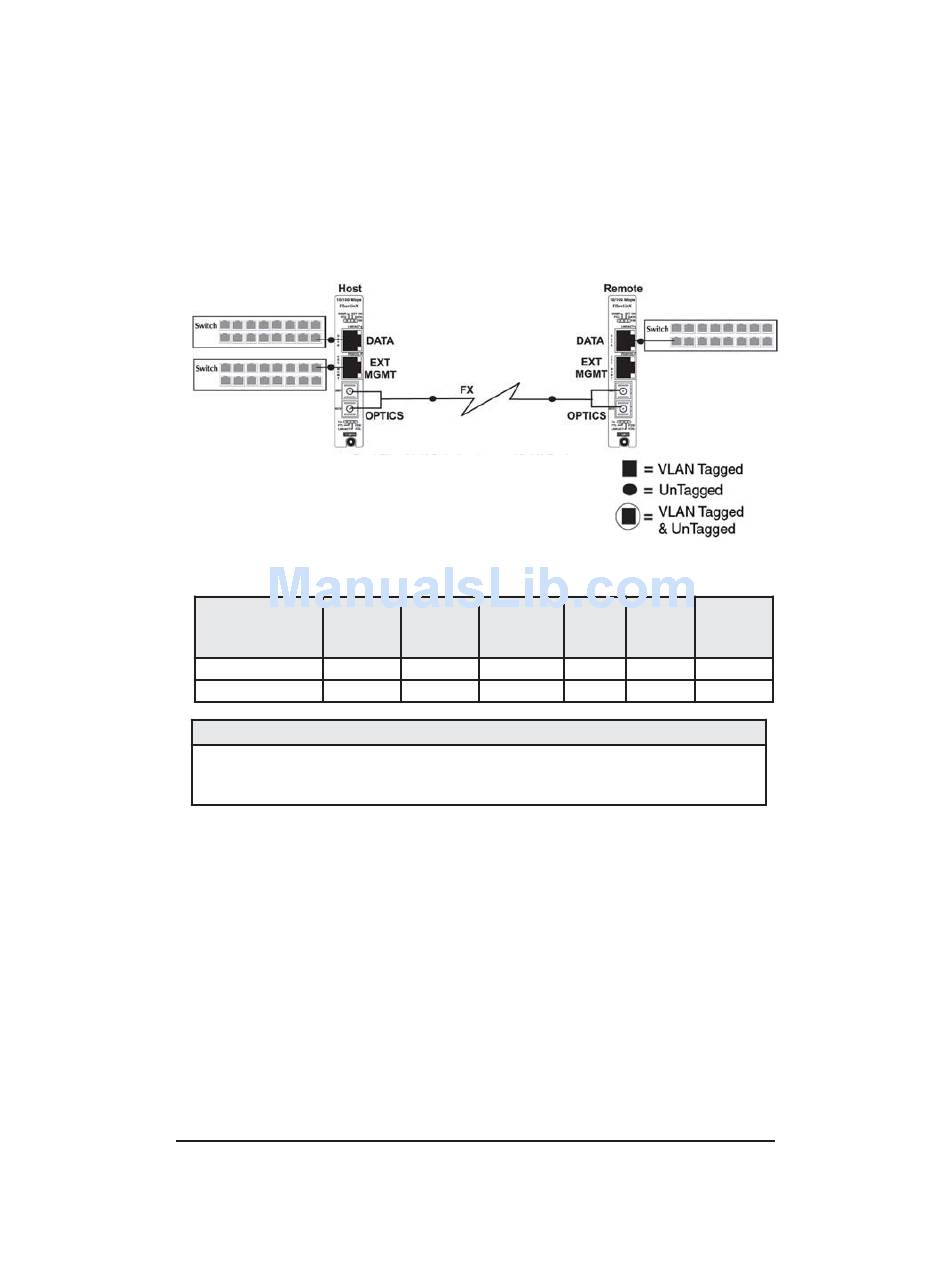

Figure D: Dual FiberLinX Application without VLAN IDs

Hardware SNMP
Configuration DATA port
Host OFF
Remote OFF
The Remote iMcV-FiberLinX must have SNMP enabled on the OPTICS port for the
Host site's iMcV-FiberLinX to communicate with it.
SNMP SNMP
OPTICS EXT MGMT Basic
port port
OFF ON ON
ON OFF ON
NOTE
6
Host Remote
ON OFF
OFF ON
