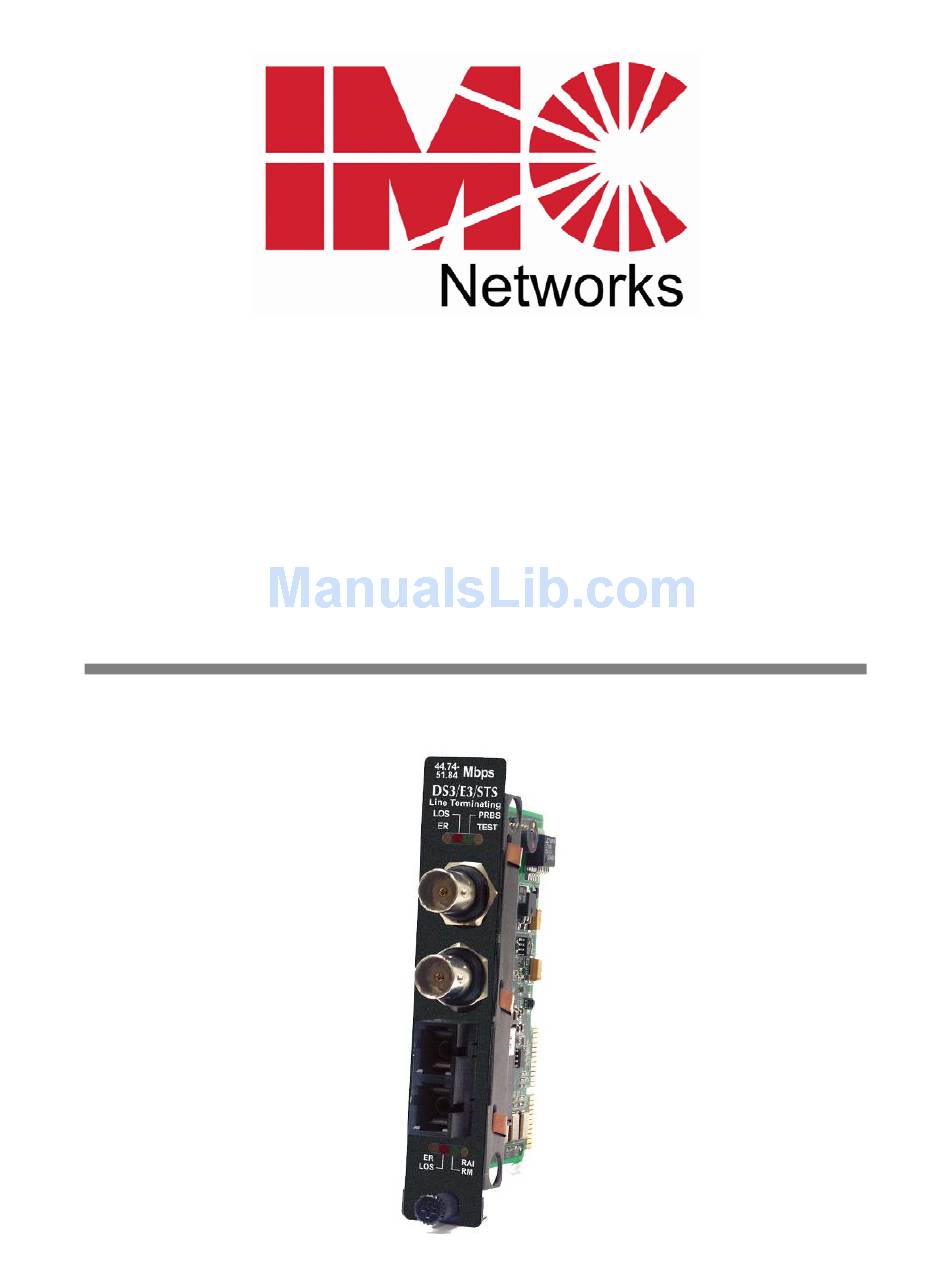

- Page 1 Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the iMcV-DS3/E3/STS-LineTerm...............1 Installation ......................1 Configuration .....................2 Managed Modules .....................2 DIP Switch Settings ....................4 LED Operation....................5 Troubleshooting ....................11 Specifications ....................12 IMC Networks Technical Support..............13 Fiber Optic Cleaning Guidelines...............14 Electrostatic Discharge Precautions..............15... -
Page 4: About The Imcv-Ds3/E3/Sts-Lineterm
The single-strand versions as HOST and REMOTE must have opposite transmit and receive wavelengths iMcV-DS3/E3/STS-LineTerm modules must be deployed in pairs (one at each end of a fiber line). The data transmitted on the fiber ports can only be received and interpreted by another iMcV-DS3/E3/STS-LineTerm unit. -
Page 5: Configuration
Management Software iView² is the IMC Networks management software designed specifically for the IMC Networks “iMcV” family of modules. It features a GUI and gives network managers the ability to monitor and control the manageable IMC Networks products. -
Page 6: Unmanaged Modules
DIP Switch selectable features. DIP Switches The iMcV-DS3/E3/STS-LineTerm DIP Switches are located at S1 and S2 on the PCB. The S2 DIP Switches are factory configured and must not be changed. The S1 DIP Switches provide control over the available iMcV-DS3/E3/STS-LineTerm features. -
Page 7: Dip Switch Settings
DIP Switch Settings FUNCTION SWITCH SETTINGS RESULT [(D) = Default] Loopback (iView Configurable) S1-1: OFF Loopback Disabled (D) S1-1: ON Loopback Enabled Loopback Type (iView Configurable) S1-2: OFF Coax (D) S1-2: ON Fiber Jitter Attenuation (iView Configurable) S1-3: OFF Jitter Attenuator on Receive Side S1-3: ON Jitter Attenuator on Transmit Side (D) FiberAlert (iView... -
Page 8: Led Operation
When the fiber port receives an RAI signal, this will force AIS to transmit on the COAX Line. Features The iMcV-DS3/E3/STS-LineTerm module includes several features that allow it to be configured for DS3, E3/STS, or STS-based environments. - Page 9 By default this feature is DISABLED. This feature can be controlled by SNMP management software (iView ) when the iMcV-DS3/E3/STS-LineTerm module, configured as a HOST, is installed in a managed chassis. Loopback Type (DIP Switch S1, Position 2) This switch identifies which data line is looped back when the Loopback DIP Switch is enabled.
- Page 10 By default this feature is set to 0 to 255 feet (450 ft maximum). Transmit Coax Data Source (DIP Switch S1, Positions 6 & 7) These switches select the transmit mode used by the iMcV-DS3/E3/STS-LineTerm module. The transmit modes that can be selected include the following: •...
-
Page 11: Loopback Testing
Looping received data back onto the transmit path helps determine whether a connection is still valid. Remote loopback tests isolate problems on the coax run between an iMcV-DS3/E3/STS-LineTerm module and the connected device, while local loopback tests can isolate problems on the fiber connected to the... - Page 12 The following illustrations show a typical progression of loopback tests (i.e., starting by checking the coax segment at the local side, then the fiber segment at the remote side, etc). NOTE Physical fiber loopback capability is only available when performing the loopback at the Host. The Remote unit will not loop the customer data back unless the Remote management DIP Switch #10 is set to OFF.
- Page 13 To test using the internal Pseudorandom Bit Sequence source, ensure that the Central Office and the Customer Premises equipment are configured for loopback. The iMcV-DS3/E3/STS-LineTerm modules should be set to normal default mode. On the HOST iMcV-DS3/E3/STS-LineTerm module, set the Transmit Coax Data Source to “Transmit Pseudorandom Sequence"...
-
Page 14: Troubleshooting
Troubleshooting General Troubleshooting • The Coax Port can easily be tested using the internal PRBS signal generator and detector and a physical wire loop on the coax interface. • The Fiber Port is internally tested at all times by a working pair of units. With one unit configured for Local Management (Switch 10 set OFF) and the other for Remote Management (Switch 10 set ON), the fiber line is verified if the “RM”... -
Page 15: Specifications
Specifications Standards Compliance (DS3, E3/STS, STS): ANSI T1.102-1993 ANSI T1.107.1995 GR-820-CORE DS3, E3/STS, STS Interface: BNC coax 75 +/- 5% ohms DS3 (44.736 Mbps +/- 20 ppm) E3/STS (34.368 Mbps +/- 20 ppm) STS (51.840 Mbps +/- 20 ppm) Power Consumption (Typical): 0.550 Amps @ 5 V Operating Temperature: +32°F to +122°F (0°C to +50°C) -
Page 16: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 17: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 18: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component. -
Page 19: Safety Certifications
Safety Certifications UL/CUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 20 © 2012 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. iMcV-DS3/E3/STS-LineTerm is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
