Summary of Contents for IMC Networks iMcV-Gigabit

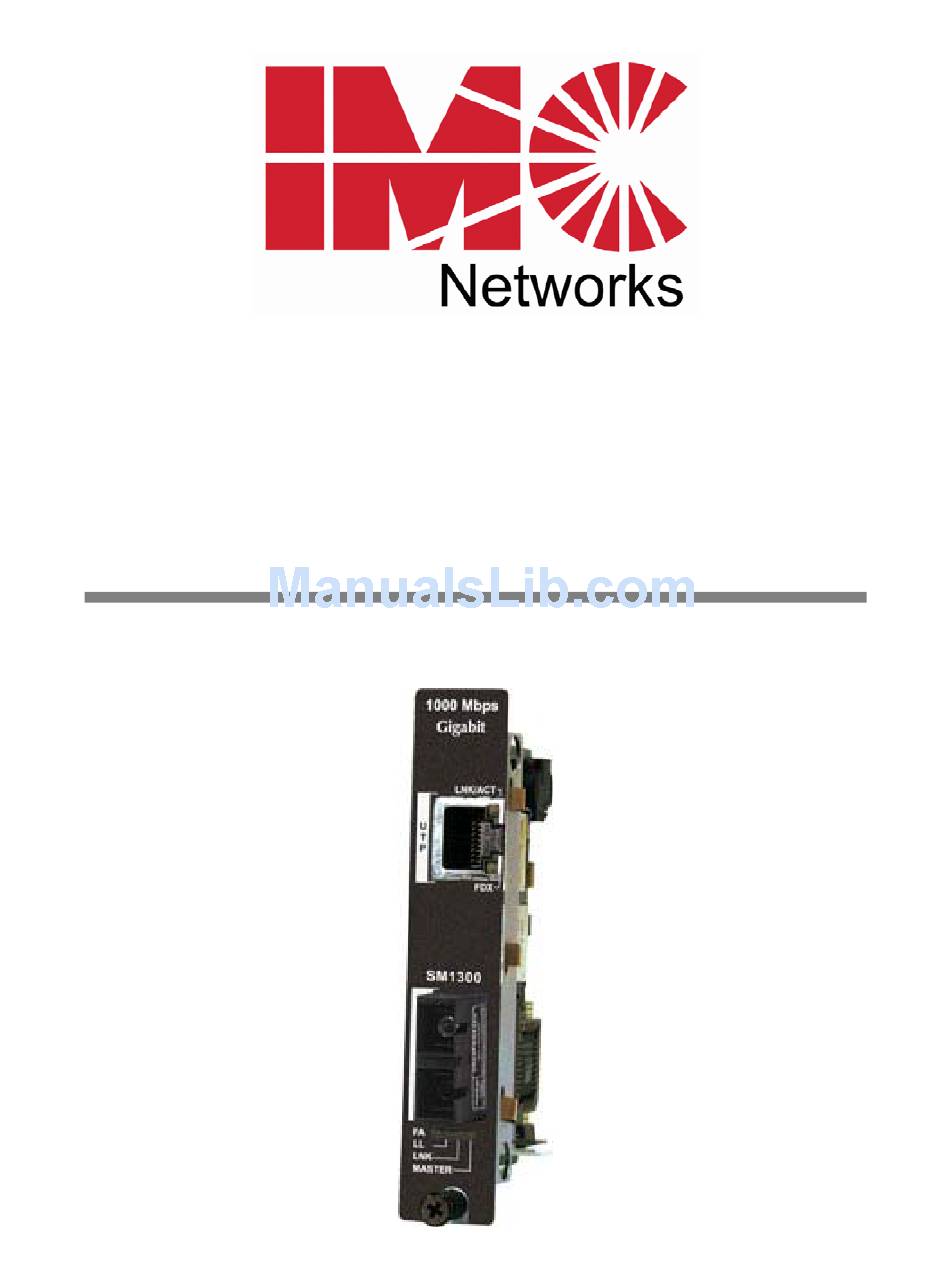

- Page 1 Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement .............i Warranty......................i About the iMcV-Gigabit™ ..................1 Configuration Instructions ..................2 Additional Gigabit Features ................5 LED Operation....................7 Installation Troubleshooting ................8 Notes .........................9 IMC Networks Technical Support..............10 Specifications ....................10 IMC Networks Technical Support..............11 Safety Certifications..................12... -
Page 4: About The Imcv-Gigabit
(1310 nm and 1550 nm)—doubling the capacity of fiber. Also, one RJ- 45 connector and one SC fiber connector are included. iMcV-Gigabit is part of the iMcV series. Information for other iMcV modules can be found in their respective manuals and on the IMC Networks Web site at: http://www.imcnetworks.com/support/. -
Page 5: Configuration Instructions
Managed Modules To manage one or more iMcV-Gigabit Modules, an SNMP agent must be present in the chassis: iMediaCenter chassis have embedded management; iMediaChassis series chassis use an SNMP management module. To configure managed modules, install the module first, and then configure using the management software. - Page 6 The appropriate “LNK” (link) LED is lit to indicate this. The IMC Networks media converter also sends out link pulses from its copper and fiber transmitters, but normally has no way of knowing whether the cable to the other device is intact and the link pulses are reaching the other end.
- Page 7 What Is FiberAlert? FiberAlert minimizes the problems associated with the loss of one strand of fiber. If a strand is unavailable, the IMC Networks device at the receiver end notes the loss of link. The device will then stop transmitting data and the link signal until a signal or link pulse is received.
-
Page 8: Additional Gigabit Features
The Master/Slave mode feature determines which clock will be used between the iMcV-Gigabit and the device it is connected to (a switch, NIC, or another iMcV- Gigabit, etc). Slave mode (S1-2 is ON) is the default setting. In Slave mode, iMcV- Gigabit will receive and use the clock of the connected device. -
Page 9: Installation Tips
If the device you are connecting to the iMcV-Gigabit module does not support auto-negotiation, disabling the feature on the iMcV-Gigabit module forces the link up. -
Page 10: Led Operation
AutoCross a feature which automatically selects between the two, depending on the connected device. LED Operation Each iMcV-Gigabit Module features diagnostic LEDs (see diagram below) that provide information on features and ports. iMcV-Gigabit (-10) iMcV-Gigabit (-00) LNK/ACT–glows green... -
Page 11: Installation Troubleshooting
BOTH your twisted pair and fiber connections before the link LEDs will light. • When connecting the fiber interface of an iMcV-Gigabit module (-00) to the fiber interface of a Gigabit switch (with fixed configuration or modular design, GBIC/SFP), you may experience difficulty establishing a link. Please check the following: Solution 1–Within the switch configuration (either via SNMP or a CLI),... -
Page 12: Notes
Notes... -
Page 13: Imc Networks Technical Support
Operating Temperature: 32° - 104° F (0° - 40° C) Storage Temperature: 0° - 160° F (-20° - 70° C) Humidity: 5 - 95% (non-condensing) Power Consumption (Typical) iMcV-Gigabit (-10): 0.55 Amp iMcV-Gigabit (-00): 1.30 Amp Fiber Optic Specifications For fiber optic specifications, please visit:... -
Page 14: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 15: Safety Certifications
Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 16 © 2008 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. iMcV-Gigabits a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
