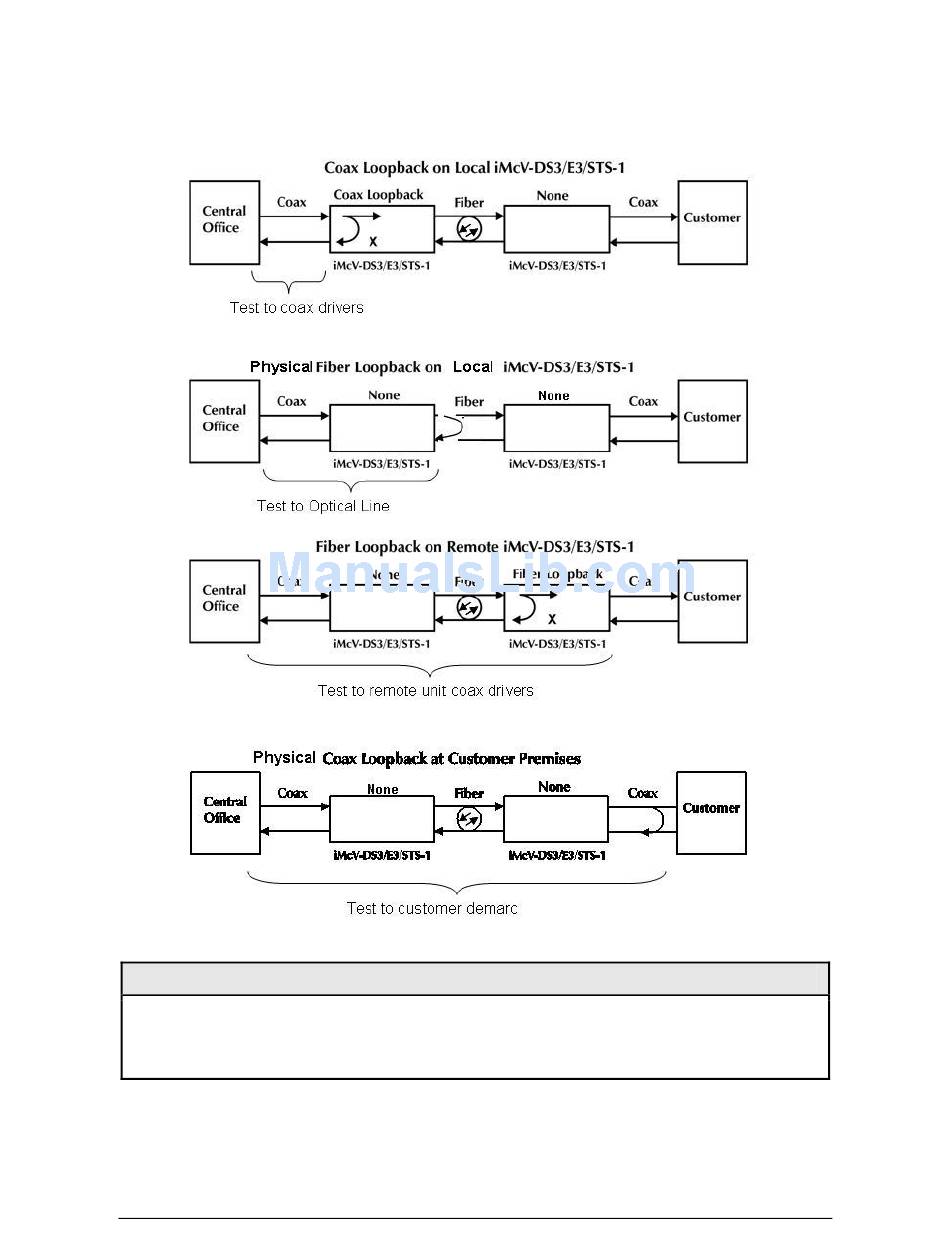

The following illustrations show a typical progression of loopback tests (i.e., starting by
checking the coax segment at the local side, then the fiber segment at the remote
side, etc).
Physical fiber loopback capability is only available when performing the loopback at the Host.
The Remote unit will not loop the customer data back unless the Remote management DIP
Switch #10 is set to OFF.
NOTE
9
