Honeywell Excel 5000 open XFL521B Product Data page 9

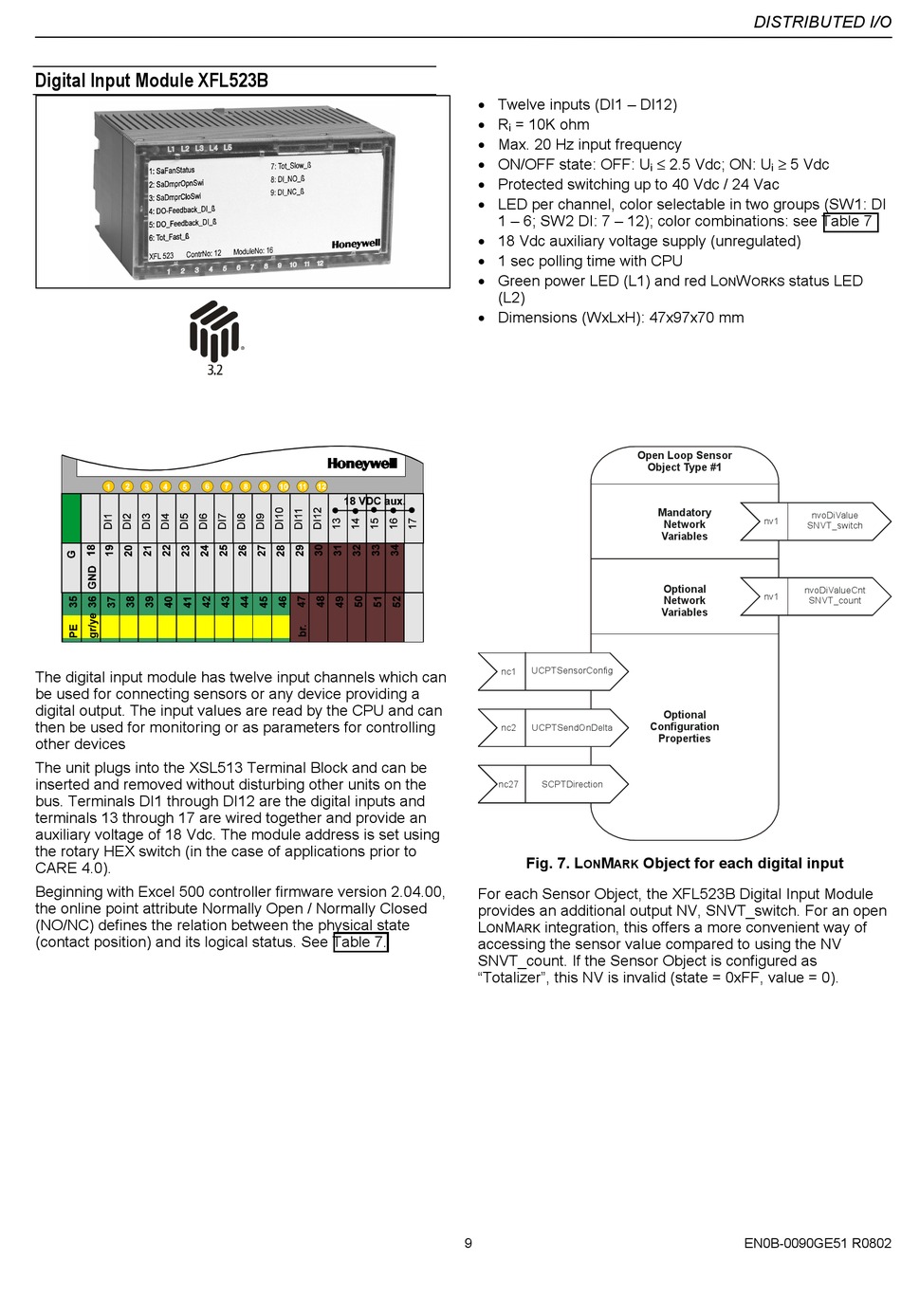

Digital Input Module XFL523B
The digital input module has twelve input channels which can
be used for connecting sensors or any device providing a
digital output. The input values are read by the CPU and can
then be used for monitoring or as parameters for controlling
other devices
The unit plugs into the XSL513 Terminal Block and can be
inserted and removed without disturbing other units on the
bus. Terminals DI1 through DI12 are the digital inputs and
terminals 13 through 17 are wired together and provide an
auxiliary voltage of 18 Vdc. The module address is set using
the rotary HEX switch (in the case of applications prior to
CARE 4.0).
Beginning with Excel 500 controller firmware version 2.04.00,
the online point attribute Normally Open / Normally Closed
(NO/NC) defines the relation between the physical state
(contact position) and its logical status. See Table 7.
• Twelve inputs (DI1 – DI12)
• R
= 10K ohm
i
• Max. 20 Hz input frequency
• ON/OFF state: OFF: U
• Protected switching up to 40 Vdc / 24 Vac
• LED per channel, color selectable in two groups (SW1: DI
1 – 6; SW2 DI: 7 – 12); color combinations: see Table 7
• 18 Vdc auxiliary voltage supply (unregulated)
• 1 sec polling time with CPU
• Green power LED (L1) and red L
(L2)
• Dimensions (WxLxH): 47x97x70 mm
nviRequest
input
UCPTSensorConfig
nc1
SNVT_obj_request
NV 1
nviRequest
input
nc2 UCPTSendOnDelta
SNVT_obj_request
NV 1
nviRequest
input
nc27 SCPTDirection
SNVT_obj_request
NV 1
Fig. 7. L M
ON ARK
For each Sensor Object, the XFL523B Digital Input Module
provides an additional output NV, SNVT_switch. For an open
L M integration, this offers a more convenient way of
ON ARK
accessing the sensor value compared to using the NV
SNVT_count. If the Sensor Object is configured as
"Totalizer", this NV is invalid (state = 0xFF, value = 0).
9
DISTRIBUTED I/O
≤ 2.5 Vdc; ON: U ≥ 5 Vdc
i i
W status LED
ON ORKS
Open Loop Sensor
Object Type #1
Mandatory
input
nv1
Network
SNVT_obj_request
NV 1
Variables
Optional
input
nvoDiValueCnt
nv1
Network SNVT_obj_request
NV 1
Variables
Optional
Configuration
Properties
Object for each digital input
EN0B-0090GE51 R0802
nviRequest
nvoDiValue
SNVT_switch
nviRequest
SNVT_count
