DISTRIBUTED I/O

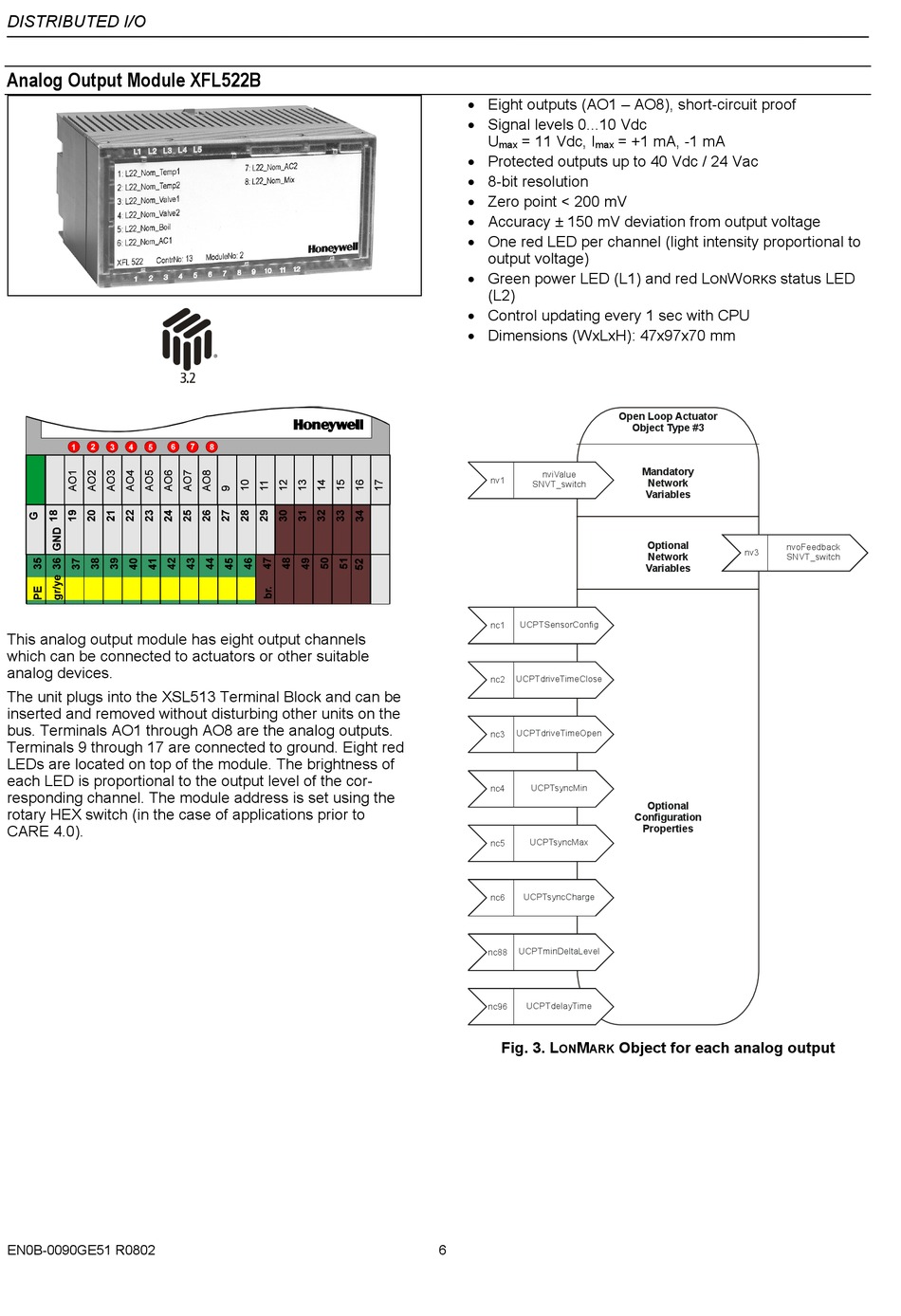

Analog Output Module XFL522B
This analog output module has eight output channels
which can be connected to actuators or other suitable
analog devices.
The unit plugs into the XSL513 Terminal Block and can be
inserted and removed without disturbing other units on the
bus. Terminals AO1 through AO8 are the analog outputs.
Terminals 9 through 17 are connected to ground. Eight red
LEDs are located on top of the module. The brightness of
each LED is proportional to the output level of the cor-
responding channel. The module address is set using the
rotary HEX switch (in the case of applications prior to
CARE 4.0).
EN0B-0090GE51 R0802
• Eight outputs (AO1 – AO8), short-circuit proof
• Signal levels 0...10 Vdc
U
= 11 Vdc, I
max
max
• Protected outputs up to 40 Vdc / 24 Vac
• 8-bit resolution
• Zero point < 200 mV
• Accuracy ± 150 mV deviation from output voltage
• One red LED per channel (light intensity proportional to
output voltage)
• Green power LED (L1) and red L
(L2)
• Control updating every 1 sec with CPU
• Dimensions (WxLxH): 47x97x70 mm
nviRequest
input
nviValue
nv1
SNVT_obj_request
SNVT_switch
NV 1
nviRequest
input
UCPTSensorConfig
nc1
SNVT_obj_request
NV 1
nviRequest
input
UCPTdriveTimeClose
nc2
SNVT_obj_request
NV 1
nviRequest
input
UCPTdriveTimeOpen
nc3
SNVT_obj_request
NV 1
nviRequest
input
UCPTsyncMin
nc4
SNVT_obj_request
NV 1
nviRequest
input
UCPTsyncMax
nc5
SNVT_obj_request
NV 1
nviRequest
input
UCPTsyncCharge
nc6
SNVT_obj_request
NV 1
nviRequest
input
UCPTminDeltaLevel
nc88
SNVT_obj_request
NV 1
nviRequest
input
nc96
UCPTdelayTime
SNVT_obj_request
NV 1
Fig. 3. L
M
ON
ARK
6
= +1 mA, -1 mA
W
status LED
ON
ORKS
Open Loop Actuator
Object Type #3
Mandatory
Network
Variables
Optional
nviRequest
input
nvoFeedback
nv3
Network
SNVT_obj_request
SNVT_switch
NV 1
Variables
Optional
Configuration
Properties
Object for each analog output
