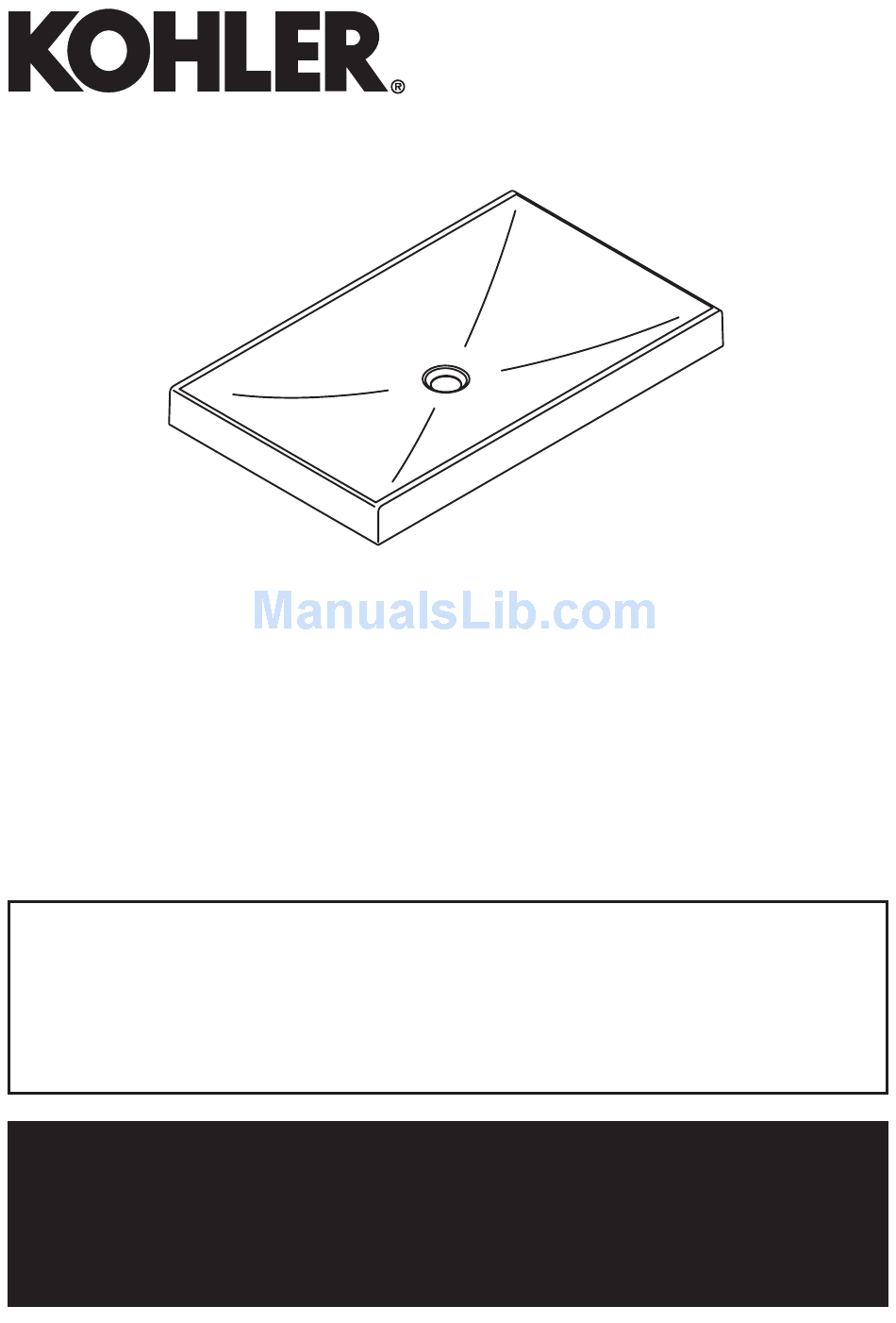

Antilia Wading Pool Glass countertop Installation and user Guide MODel nUMBers K-2369 Important! Please quote the above model number(s) when ordering spares IMPORTANT Installer: ThIs MANuAl Is The PROPeRTy Of The cusTOMeR ANd MusT be ReTAINed WITh The PROducT fOR MAINTeNANce ANd OPeRATIONAl PuRPOses.
DIMensIOns 713 mm 356 mm 216 mm 433 mm Optimal water delivery location 56 mm 70 mm 41 mm Dia. InstallatIOn General Make sure that the basin is installed by a competent installer. before installation carefully inspect the product for any signs of damage. 1113919-W2-A...
Page 4
Install the Basin Drain Body Foam Gasket (supplied with basin) O-Ring (supplied with basin) Roll the O-ring onto the 41 mm drain body and seat into the Drain Hole underside of the basin. Discard gasket supplied with the drain. Washer Caution! Risk of product damage.
Page 5
Align the basin and drain body assembly with the drain hole in the countertop. lower the drain body through the countertop drain hole until the basin rests on the countertop. 10. slide the washer onto the drain body. 11. Thread the nut onto the drain body. 12.
User MaIntenanCe Cleaning Many household cleaners contain abrasive and chemical substances, and should not be used for cleaning plated or plastic fittings. These finishes should be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth. 1113919-W2-A...
CUstOMer Care Guarantee of Quality Kohler UK guarantee products against any defect of materials or workmanship for the following periods Ceramic Ware and Cast Products Stainless Steel Products and, Acrylic Baths Shower Valves, Taps, Cistern Bathroom Furniture and Whirlpool / Spa Baths Fittings, Toilet Seats and Bath Accessories Panels...
