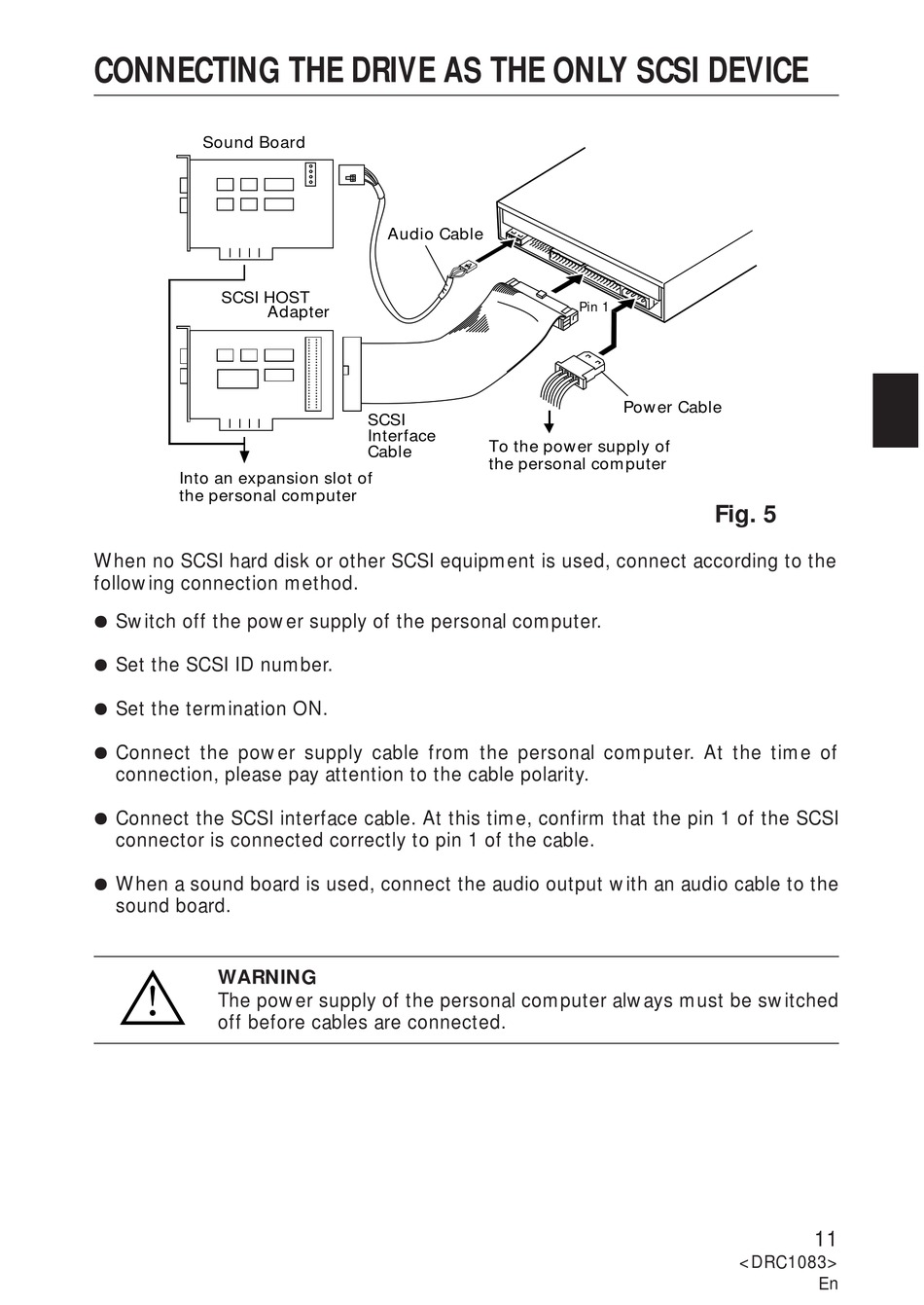

CONNECTING THE DRIVE AS THE ONLY SCSI DEVICE

Sound Board
SCSI HOST
Adapter
Into an expansion slot of
the personal computer
When no SCSI hard disk or other SCSI equipment is used, connect according to the
following connection method.
¶ Switch off the power supply of the personal computer.
¶ Set the SCSI ID number.
¶ Set the termination ON.
¶ Connect the power supply cable from the personal computer. At the time of
connection, please pay attention to the cable polarity.
¶ Connect the SCSI interface cable. At this time, confirm that the pin 1 of the SCSI
connector is connected correctly to pin 1 of the cable.
¶ When a sound board is used, connect the audio output with an audio cable to the
sound board.
WARNING
The power supply of the personal computer always must be switched
off before cables are connected.
Audio Cable
SCSI
Interface
To the power supply of
Cable
the personal computer
Pin 1
Power Cable
Fig. 5
<DRC1083>
11
En
