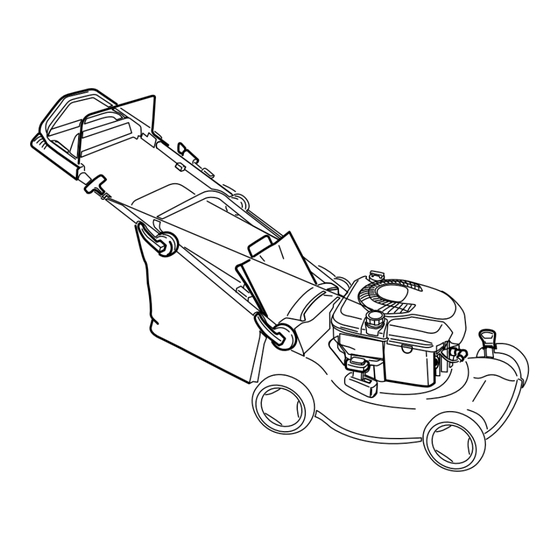

- Page 1 R48 Recycling Mower Code 445E, 446E, 447E Serial No. 280R00001, 280S00001,or 280T00001 and Manual Part No. 111-2087 Rev B...
-
Page 2: Table Of Contents
Contents Introduction Introduction..............2 Safety ................3 Read this information carefully to learn how to operate General Lawn Mower Safety ......... 3 and maintain your product properly and to avoid injury Sound Pressure............. 4 and product damage. You are responsible for operating Sound Power ............ -
Page 3: Safety
Safety • If petrol is spilled, do not attempt to start the engine but move the mower away from the area of spillage and avoid creating any source of ignition until petrol Improperly using or maintaining this mower can vapors have dissipated. result in injury. -
Page 4: Sound Pressure
– Do not mow excessively steep slopes. • Check grass bag components and the discharge guard frequently and replace with manufacturer’s – Exercise extreme caution when on slopes. recommended parts, when necessary. – Mow across the face of slopes, never up and •... -
Page 5: Safety And Instructional Decals
Safety and Instructional Decals Important: Safety and instruction decals are located near areas of potential danger. Replace damaged decals. Manufacturer’s Mark 1. Indicates the blade is identified as a part from the original machine manufacturer. 110-7126 1. Warning—read the 4. Cutting, dismemberment Operator’s Manual. -
Page 6: Setup
Setup Unfolding the Handle 1. Unlock the handle locks, move the handle sections into the operating position, and lock the handle locks (Figure 3). Figure 5 Filling the Engine with Oil Your mower does not come with oil in the engine. Figure 3 1. -
Page 7: Installing The Fuse (Model 447E Only)
Installing the Fuse (Model Charging the Battery (Model 447E Only) 447E Only) Your mower comes with a 40-amp fuse that protects the Refer to Charging the Battery in the Maintenance electric starter. section. Important: You cannot start the mower with the electric starter or charge the battery unless you install the fuse. -
Page 8: Product Overview
Product Overview Operation Filling the Fuel Tank Petrol is extremely flammable and explosive. A fire or explosion from petrol can burn you and others. • To prevent a static charge from igniting the petrol, place the container and/or mower directly on the ground before filling, not in a vehicle or on an object. -
Page 9: Adjusting The Cutting Height
Starting the Engine detergent oil with an API service classification of SF, SG, SH, SJ, SL, or higher.) 1. Firmly push in the primer 3 times with your thumb, 3. Install the dipstick. holding the primer in for a second before releasing it each time (Figure 12). -
Page 10: Using The Self-Propel Drive (Models 446E And 447E Only)
Important: When you release the blade control bar, both the engine and blade should stop within 3 seconds. If they do not stop properly, stop using your mower immediately and contact an Authorized Service Dealer. Recycling the Clippings Your mower comes from the factory ready to recycle the grass and leaf clippings back into the lawn. -
Page 11: Rear-Discharging The Clippings
To bag the grass clippings, install the grass bag (refer to Installing the Grass Bag) and move the Recycling/bagging lever to the bagging mode (Figure 18). Installing the Grass Bag Raise and hold up the rear door, install the bag, and lower the rear door (Figure 19). - Page 12 Wet grass or leaves can cause serious injury if you slip and contact the blade. Mow only in dry conditions. • Alternate the mowing direction. This helps disperse the clippings over the lawn for even fertilization. • If the finished lawn appearance is unsatisfactory, try one or more of the following: –...
-
Page 13: Maintenance
Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the engine oil. After the first 5 hours • Check the engine oil level. • Ensure that the engine stops within 3 seconds after releasing the blade control bar. Before each use or daily •... -
Page 14: Lubrication
Lubrication Engine Maintenance Lubricating the Wheel Gears Replacing the Air Filter Service Interval: Yearly—Lubricate the wheel gears. Service Interval: Yearly—Replace the air filter (more frequently in dusty operating 1. Remove the wheel bolts on the rear wheels and conditions). remove the rear wheels. 1. -
Page 15: Electrical System Maintenance
Electrical System Maintenance Charging the Battery (Model 447E Only) Service Interval: Every 25 hours—Charge the battery for 24 hours. (Model 447E only) Always use the charger in a sheltered area and charge the Figure 24 battery at room temperature (22° C) whenever possible. 1. -
Page 16: Drive System Maintenance
Drive System Maintenance Adjusting the Self-propel Drive If your mower does not self-propel properly, adjust the self-propel drive cable. 1. Loosen the nut on the cable mount (Figure 26). Figure 28 1. Exposed cable 4. Push the cable jacket upward 3/16 inch (5 mm) (Figure 29). -
Page 17: Blade Maintenance
Blade Maintenance Important: A bolt torqued to 82 N⋅ ⋅ ⋅ m is very tight. While holding the blade with a block of wood, put your weight behind the ratchet or Replacing the Blade wrench and tighten the bolt securely. This bolt is very difficult to overtighten. -
Page 18: Cleaning
Cleaning Storage Store the mower in a cool, clean, dry place. Cleaning the Mower Preparing the Mower for Service Interval: Before each use or daily—Clean the mower. Storage Tipping the mower may cause the fuel to leak Petrol vapors can explode. from the carburetor or the fuel tank. - Page 19 Notes:...
- Page 20 Notes:...
- Page 21 1st Year (12 months) 1st Year (12 months) Owner’s Name: We certify that this service has been carried out by an Authorised Hayter Serial Number: Service Dealer Date: Date: Note for dealer: Please retain this voucher for your records. 2nd Year (24 months) 2nd Year (24 months) Owner’s Name: We certify that this service has been...
- Page 23 LIMITED WARRANTY Hayter Limited warrants to the original user/purchaser that this unit shall be free from defects in material and workmanship under normal use and service for a period of three years from the date of purchase. The manufacturer of major proprietry components ie. engines, gearbox / transaxle (where applicable) furnish their own warranty and services are provided through their authorised network.
