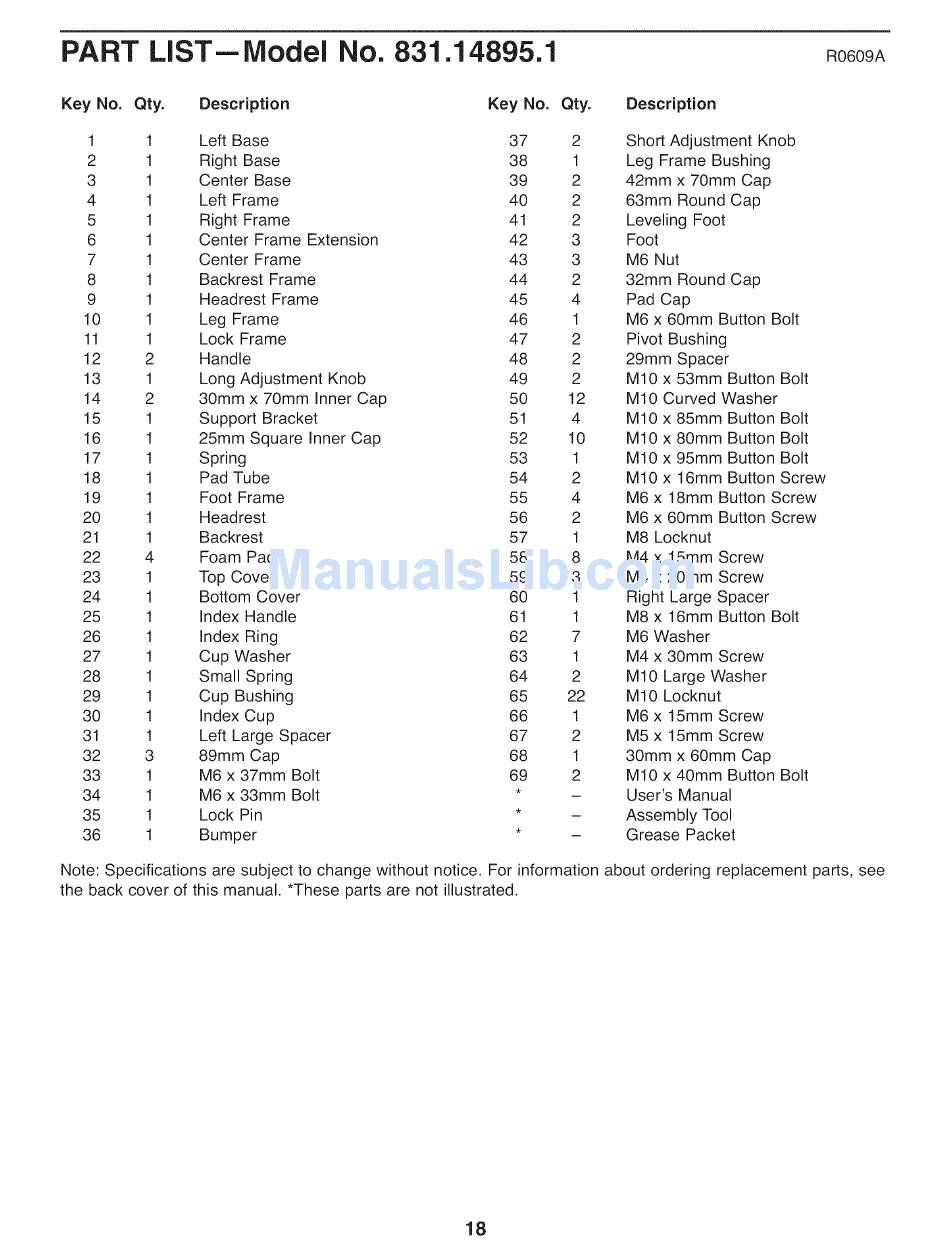

PART LISTmlVlodel No. 831.1 4895.1
ROG09A
Key No. Qty.
Description
Key No. Qty.
Description
1
1
Left Base
37
2
Short Adjustment Knob
2
1
Right Base
38
1
Leg Frame Bushing
3
1
Center Base
39
2
42mm x 70mm Cap
4
1
Left Frame
40
2
63mm Round Cap
5
1
Right Frame
41
2
Leveling Foot
6
1
Center Frame Extension
42
3
Foot
7
1
Center Frame
43
3
M6 Nut
8
1
Backrest Frame
44
2
32mm Round Cap
9
1
Headrest Frame
45
4
Pad Cap
10
1
Leg Frame
46
1
M6 x 60mm Button Bolt
11
1
Lock Frame
47
2
Pivot Bushing
12
2
Handle
48
2
29mm Spacer
13
1
Long Adjustment Knob
49
2
M10 x 53mm Button Bolt
14
2
30mm x 70mm Inner Cap
50
12
M10 Curved Washer
15
1
Support Bracket
51
4
M10 x 85mm Button Bolt
16
1
25mm Square Inner Cap
52
10
M10 x 80mm Button Bolt
17
1
Spring
53
1
M10 x 95mm Button Bolt
18
1
Pad Tube
54
2
M10 x 16mm Button Screw
19
1
Foot Frame
55
4
M6 x 18mm Button Screw
20
1
Headrest
56
2
M6 x 60mm Button Screw
21
1
Backrest
57
1
M8 Locknut
22
4
Foam Pad
58
8
M4 x 15mm Screw
23
1
Top Cover
59
3
M4 x 20mm Screw
24
1
Bottom Cover
60
1
Right Large Spacer
25
1
Index Handle
61
1
M8 x 16mm Button Bolt
26
1
Index Ring
62
7
M6 Washer
27
1
Cup Washer
63
1
M4 x 30mm Screw
28
1
Small Spring
64
2
M10 Large Washer
29
1
Cup Bushing
65
22
M10 Locknut
30
1
Index Cup
66
1
M6 x 15mm Screw
31
1
Left Large Spacer
67
2
M5 x 15mm Screw
32
3
89mm Cap
68
1
30mm x 60mm Cap
33
1
M6 x 37mm Bolt
69
2
M10 x 40mm Button Bolt
34
1
M6 x 33mm Bolt
*
-
User's Manual
35
1
Lock Pin
*
-
Assembly Tool
36
1
Bumper
*
-
Grease Packet
Note: Specifications
are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
