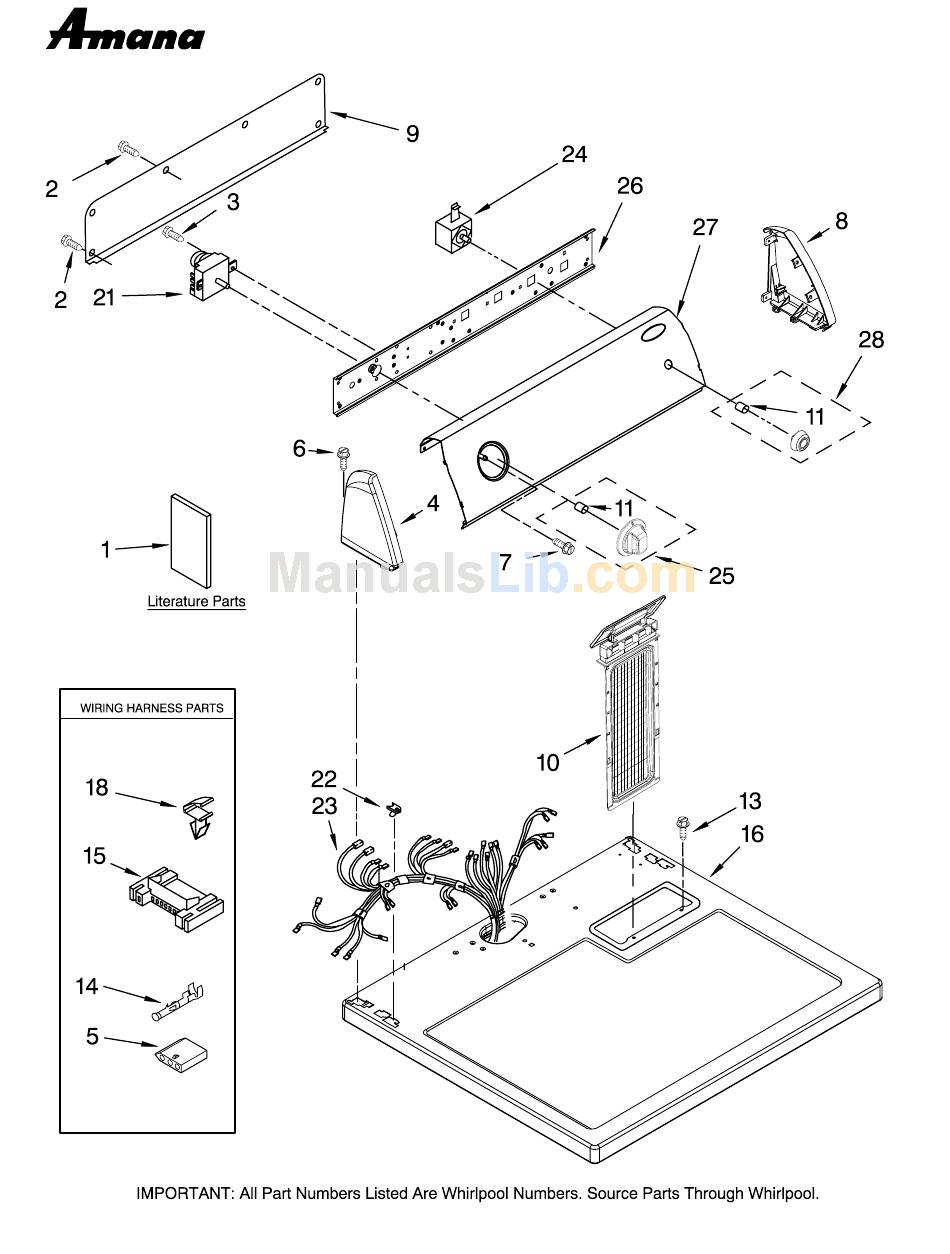

TOP AND CONSOLE PARTS
29" ELECTRIC DRYER
For Model: NED5200TQ0
(Designer White)
4−07 Litho in U.S.A. (LT)
1
Part No. W10136729 Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the NED5200TQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amana NED5200TQ

Summary of Contents for Amana NED5200TQ

  • Page 1 TOP AND CONSOLE PARTS 29" ELECTRIC DRYER For Model: NED5200TQ0 (Designer White) 4−07 Litho in U.S.A. (LT) Part No. W10136729 Rev. A...
  • Page 2 TOP AND CONSOLE PARTS For Model: NED5200TQ0 (Designer White) Illus. Part DESCRIPTION Literature Parts W10088771 Use & Care Guide W10089173 Sheet, Cycle Feature W10088970 Installation Instructions 8576793 Wiring Diagram 693995 Screw, Hex Head 8533971 Screw, 8−18 x 5/16 8271365 Cap, End (L.H.) 3936144 Connector 388326 Screw, Console 8533951 Screw, Grounding...

  • Page 3: Cabinet Parts

    CABINET PARTS For Model: NED5200TQ0 (Designer White) W10136729...
  • Page 4 Illus. Part DESCRIPTION 8541400 Bracket, Cabinet 3393008 Screw, 10−16 x 1/2 3403630 Plug−Strike 343641 Screw, 10−16 x 1/2 3396795 Cover, Terminal Block 3396805 Panel, Rear 342055 Screw, 8−18 x 1/2 3406109 Door Switch Assembly 697773 Screw, 6−20 x 7/8 693995 Screw, Hex Washer Head 3392100 Foot, Dryer (4) 8530603 Cabinet...
  • Page 5 Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 8066086 Drum Hole Plug 3388703 Washer, Support 90767 Screw, 8−18 x 3/8 3977393 Thermal Cut−Off (Includes Illus. 15) 347139 Seal, Lint Chute 3390647 Screw, 8−18 x 1/2 694089 Wheel, Blower 8577230 Housing, Blower 8066155 Clip W10136729...
  • Page 6 OPTIONAL PARTS (NOT INCLUDED) For Model: NED5200TQ0 (Designer White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 8522199 Kit, Dryer Vent Testing 689790 Dry Rack PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) W10136729...
