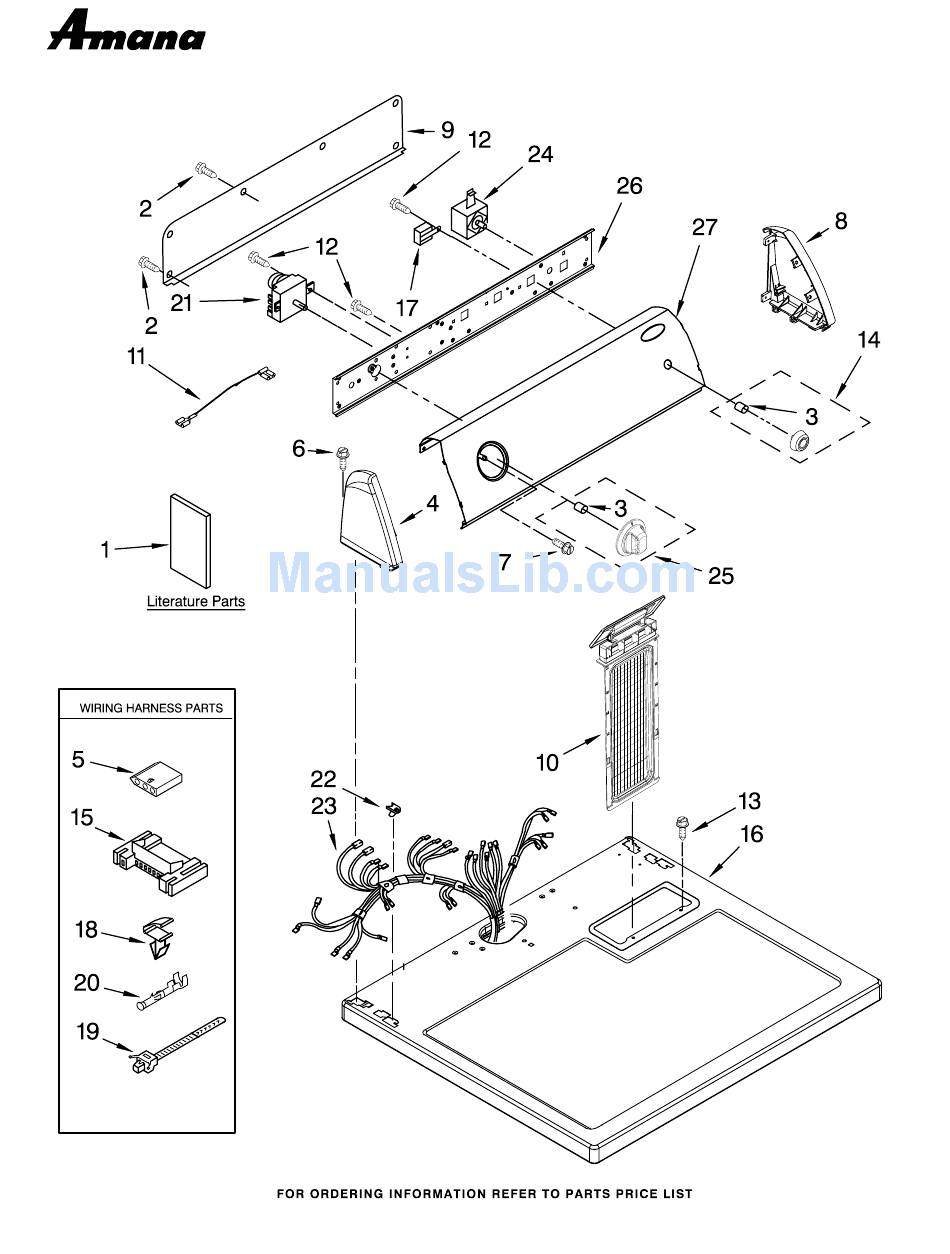

- Page 1 TOP AND CONSOLE PARTS 29" ELECTRIC DRYER For Model: NED5100TQ1 (Designer White) 1−09 Litho in U.S.A. (LT) (psw) Part No. W10248251 Rev. A...
- Page 2 TOP AND CONSOLE PARTS For Model: NED5100TQ1 (Designer White) Illus. Part DESCRIPTION Literature Parts W10232964 Guide, Use & Care W10150612 Instructions, Installation W10150656 Sheet, Cycle Feature W10185979 Wiring Diagram 693995 Screw, Hex Head 8536939 Spring, Clip Knob 8271365 Cap, End (L.H.) 3936144 Connector 388326 Screw, Console 8533951 Screw, Grounding...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: NED5100TQ1 (Designer White) W10248251... - Page 4 CABINET PARTS For Model: NED5100TQ1 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3392100 Foot, Dryer (4) 3404162 Clamp, Motor 8541400 Bracket, Cabinet 3400500 Bolt, W/Shield 3393008 Screw, 10−16 x 1/2 5/16 − 18 x 3/4 3405514 Hinge and Pin 3397659 Block, Terminal 8530603 Cabinet Assembly (2)
- Page 5 BULKHEAD PARTS For Model: NED5100TQ1 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8577230 Housing, Blower 342847 Baffle, Drum 694283 Lint Chute Assembly 3398161 Clip 3392519 Fuse, Thermal 489463 Screw, 8−18 x 5/8 343641 Screw, 10−16 x 1/2 8066086 Drum Hole 3387134 Thermostat, 8541818 Box, Heater...
- Page 6 OPTIONAL PARTS (NOT INCLUDED) For Model: NED5100TQ1 (Designer White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 689790 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) W10248251...
