- Page 1 TOP AND CONSOLE PARTS 29" ELECTRIC DRYER For Model: NED5100TQ0 (Designer White) Part No. W10183677 Rev. A 1−08 Litho in U.S.A. (LT)

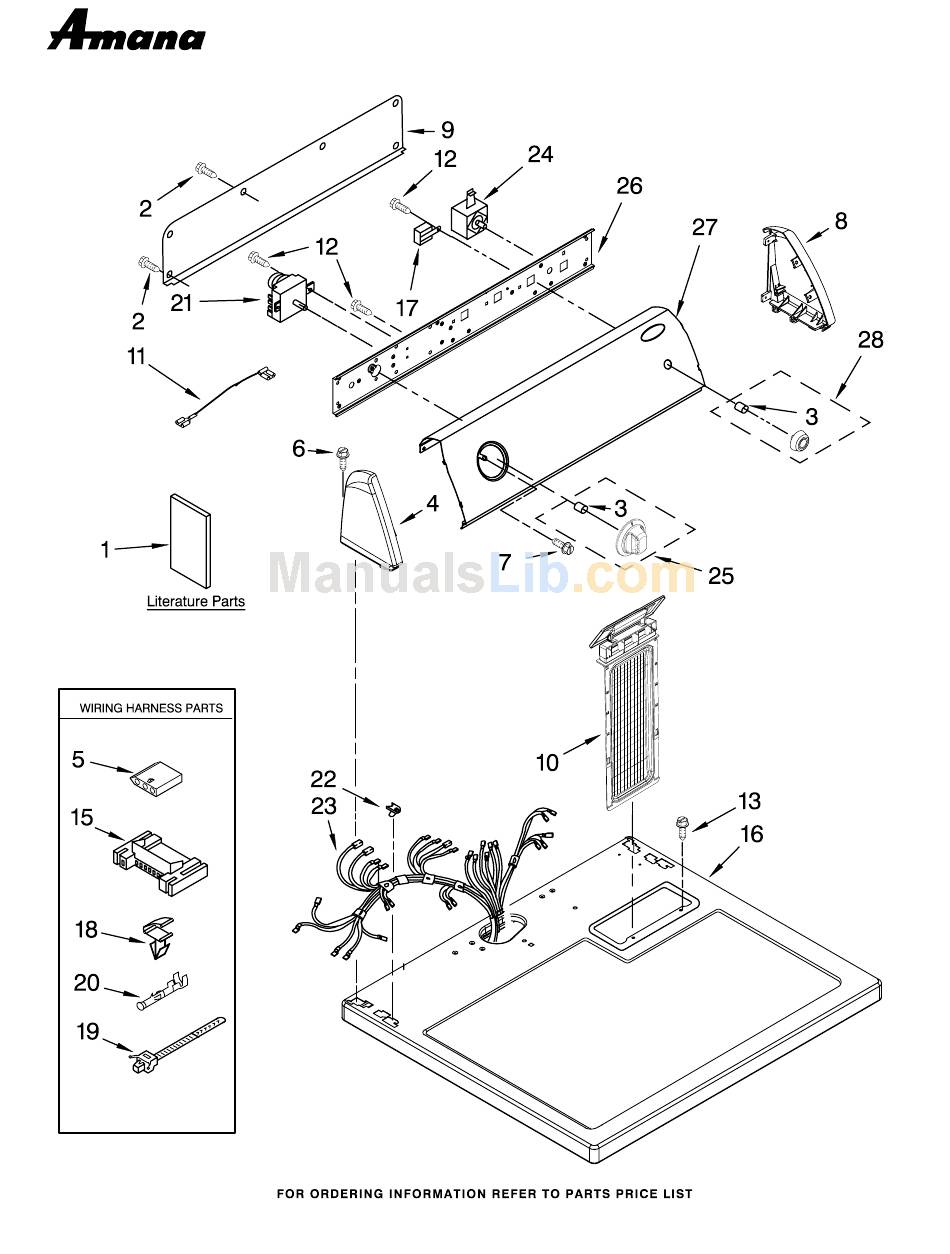

- Page 2 TOP AND CONSOLE PARTS For Model: NED5100TQ0 (Designer White) Illus. Part DESCRIPTION Literature Parts W10150620 Guide, Use & Care W10150612 Instructions, Installation W10150656 Sheet, Cycle Feature 8576793 Wiring Diagram 693995 Screw, Hex Head 8536939 Spring, Clip Knob 8271365 Cap, End (L.H.)
-
Page 3: Cabinet Parts
CABINET PARTS For Model: NED5100TQ0 (Designer White) W10183677... - Page 4 Assembly 697773 Screw, 6−20 x 7/8 691366 Idler & Pulley Assembly 693995 Screw, Hex Washer Head 14 W10131364 Belt Drive CABINET PARTS For Model: NED5100TQ0 (Designer White) Illus. Part DESCRIPTION 348780 Base, Motor 3392100 Foot, Dryer (4) 3400500 Bolt, 5/16 − 18 x 3/4...
- Page 5 347139 Seal, Lint Chute 3390647 Screw, 8−18 x 1/2 3392247 Pad, Blower Housing 694089 Wheel, Blower W10183677 BULKHEAD PARTS For Model: NED5100TQ0 (Designer White) Illus. Part DESCRIPTION 8577230 Housing, Blower 3398161 Clip 343641 Screw, 10−16 x 1/2 8541818 Box, Heater...
- Page 6 OPTIONAL PARTS (NOT INCLUDED) For Model: NED5100TQ0 (Designer White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 689790 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.)
