Connections

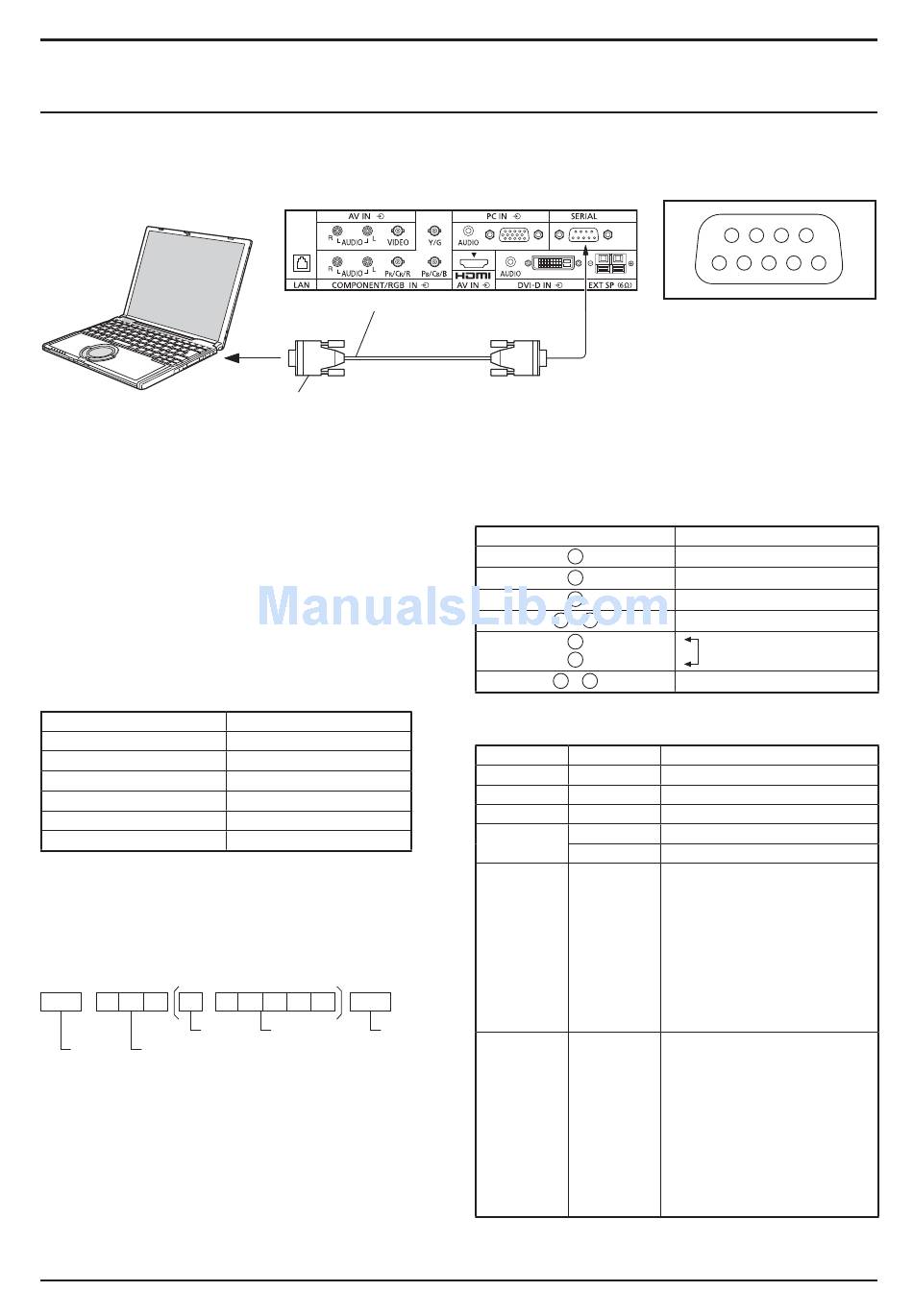

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.
Note: To use serial control for this unit, make sure to set the "Control I/F Select" in the "Network Setup" menu to
"RS-232C". (see page 52)
COMPUTER
Notes:
• Use the RS-232C straight cable to connect the computer to the Plasma Display.
• The computer shown is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
The SERIAL terminal conforms to the RS-232C interface
speci¿ cation, so that the Plasma Display can be controlled
by a computer which is connected to this terminal.
The computer will require software which allows the
sending and receiving of control data which satisfies
the conditions given below. Use a computer application
such as programming language software. Refer to the
documentation for the computer application for details.
Communication parameters
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
Flow control
Basic format for control data
The transmission of control data from the computer
starts with a STX signal, followed by the command, the
parameters, and lastly an ETX signal in that order. If there
are no parameters, then the parameter signal does not
need to be sent.
STX C1 C2 C3 :
Colon
Start 3-character
(02h) command (3 bytes)
Notes:
• If multiple commands are transmitted, be sure to wait for
the response for the ¿ rst command to come from this unit
before sending the next command.
• If an incorrect command is sent by mistake, this unit will
send an "ER401" command back to the computer.
• S1A and S1B of Command IMS are available only when
a dual input terminal board is attached.
12
RS-232C Straight cable
D-sub 9p
RS-232C compliant
Asynchronous
9600 bps
None
8 bits
1 bit
-
P1 P2 P3 P4 P5 ETX
Parameter(s) End
(1 - 5 bytes) (03h)
(Male)
(Female)
Signal names for D-sub 9P connector
Pin No.
2
3
5
4 • 6
7
8
1 • 9
These signal names are those of computer speci¿ cations.
Command
Command Parameter
PON None
POF None
AVL **
0
AMT
1
IMS None
SL1
S1A
S1B
VD1
YP1
HM1
DV1
PC1
DAM None
ZOOM
FULL
JUST
NORM
ZOM2
ZOM3
SJST
SNOM
SFUL
14:9
With the power off, this display responds to PON command
only.
9 8 7 6
5 4 3 2 1
Pin layout for SERIAL Terminal
Details
R X D
T X D
GND
Non use
(Shorted in this set)
NC
Control details
Power ON
Power OFF
Volume 00 - 63
Audio MUTE OFF
Audio MUTE ON
Input select (toggle)
SLOT input (SLOT INPUT)
SLOT input (SLOT INPUT A)
SLOT input (SLOT INPUT B)
VIDEO input (VIDEO)
COMPONENT/RGB IN input
(COMPONENT)
HDMI input (HDMI)
DVI-D IN input (DVI)
PC IN input (PC)
Screen mode select (toggle)
Zoom1 (For Video/SD/PC signal)
16:9
Just (For Video/SD signal)
4:3 (For Video/SD/PC signal)
Zoom2 (For HD signal)
Zoom3 (For HD signal)
Just (For HD signal)
4:3 (For HD signal)
4:3 Full (For HD signal)
14:9
