INTELLIGENT WEATHER STATION
This product offers:
FEATURES
INTELLIGENT WEATHER STATION
LCD
Display
Weather
information
text
•
Immediate update (every 4 seconds!) of all your outdoor data
measured from the sensors (note: 4 second may vary while
updating)
•
WWVB Radio-controlled time with manual setting option
•
WWVB reception ON/OFF (user selectable)
WS-9020U 915MHZ
Instruction Manual
INSTANT TRANSMISSION is the state-
of-the-art new wireless transmission
technology, exclusively designed and
developed by LA CROSSE
TECHNOLOGY. INSTANT
TRANSMISSION offers you an
immediate update (every 4 seconds!) of
all your outdoor data measured from
the sensors: Chart the weather as it
happens!

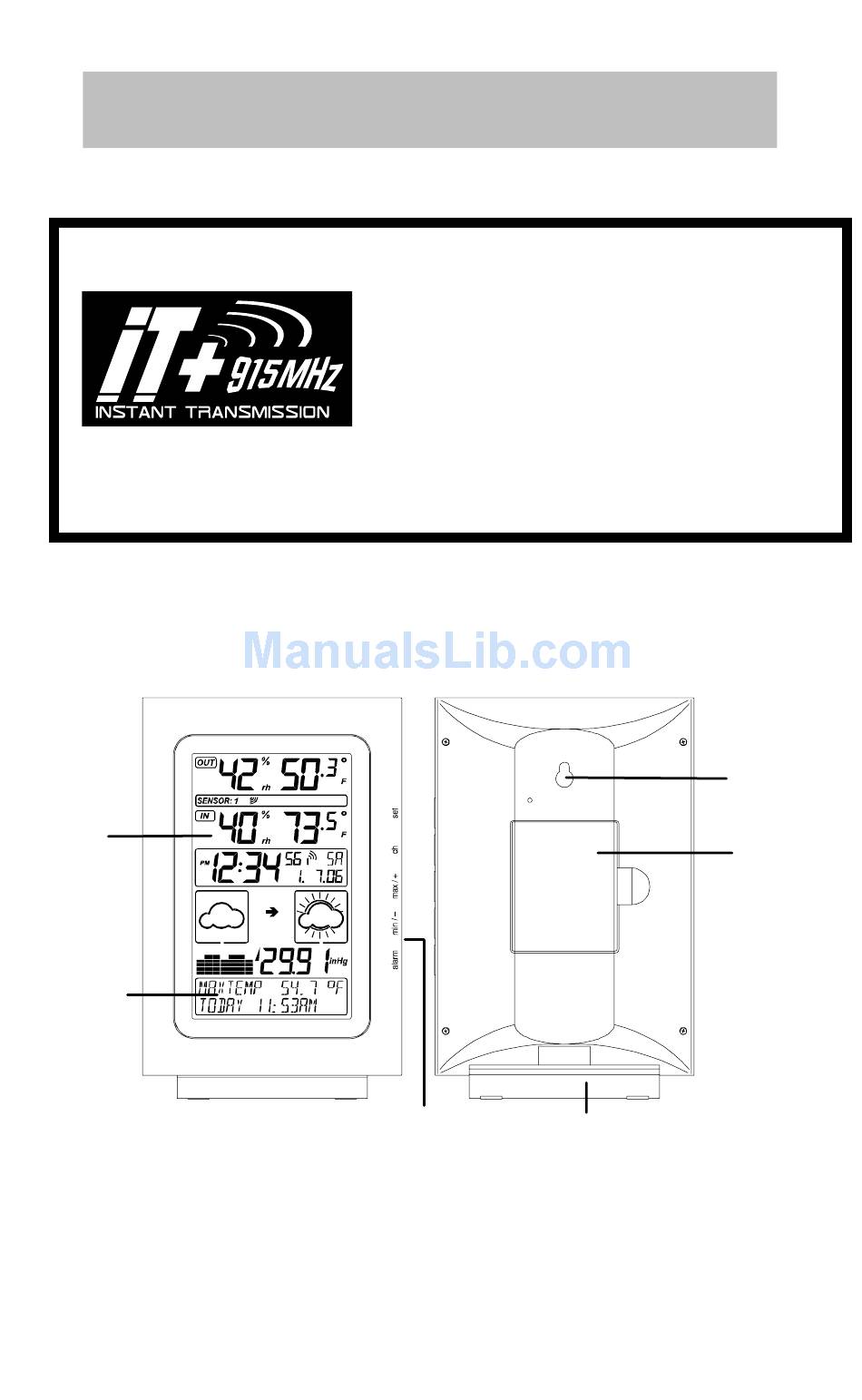

Function Keys
1
Removable Stand
Hanging hole
Battery
compartment
