- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VS-211H Automatic HDMI Standby Switcher P/N: 2900-000681 Rev 5...
-
Page 3: Table Of Contents
Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the VS-211H Automatic HDMI Standby Switcher Using the VS-211H Connecting the VS-211H Selecting the Default Master Source Signal Connecting the REMOTE Terminal Block Connector Technical Specifications... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VS-211H away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The VS-211H is a high-performance automatic standby switcher for HDMI video signals. The VS-211H automatically switches to the secondary input whenever the primary video signal is interrupted. If the primary signal reappears, the unit automatically switches back to the primary input. -
Page 8: Defining The Vs-211H Automatic Hdmi Standby Switcher

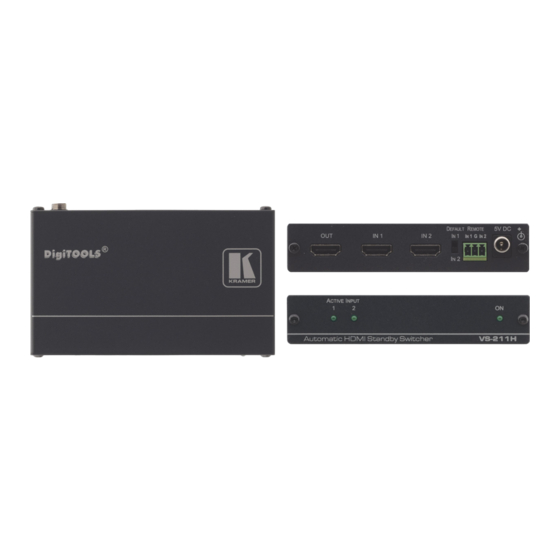

Defining the VS-211H Automatic HDMI Standby Switcher This section defines the VS-211H. Figure 1: VS-211H Automatic HDMI Standby Switcher Feature Function ACTIVE INPUT 1,2 LEDs Illuminate when input is active ON LED Illuminates when receiving power OUT HDMI Connector Connects to the HDMI output acceptor... -
Page 9: Using The Vs-211H
Connecting the VS-211H Always switch off the power to each device before connecting it to your VS-211H. After connecting your VS-211H, connect its power and then switch on the power to each device. To connect the VS-211H, as illustrated in the example in... -
Page 10: Selecting The Default Master Source Signal
Selecting the Default Master Source Signal When active input sources are connected to IN 1 and IN 2, the DEFAULT INPUT switch setting determines the default master input source. If the master input signal is not detected, the VS-211H automatically activates the standby input: ... -
Page 11: Connecting The Remote Terminal Block Connector
To do this, connect the appropriate REMOTE input terminal block connector pins to a contact closure switch (see Figure Note that the connection should be permanent, since the VS-211H reverts to an automatic switcher when the connection is removed. ... -
Page 12: Technical Specifications
DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H WEIGHT: 0.3kg (0.7lbs) ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-3T 19" rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com VS-211H - Technical Specifications... - Page 13 VS-211H - Technical Specifications...
- Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
