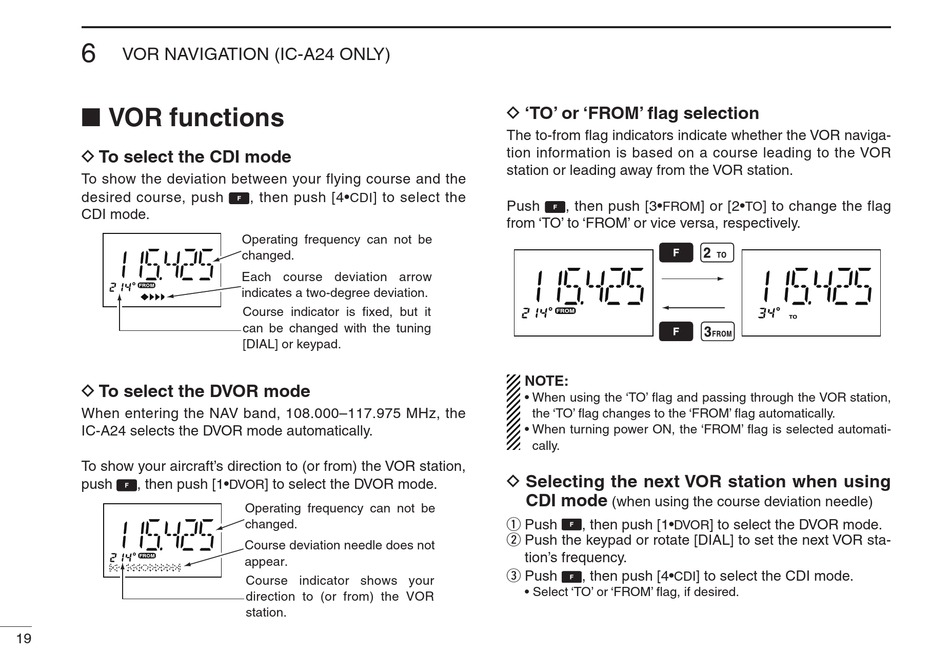

VOR NAVIGATION (IC-A24 ONLY)

■ VOR functions

D To select the CDI mode
To show the deviation between your flying course and the
desired course, push
CDI mode.
D To select the DVOR mode
When entering the NAV band, 108.000–117.975 MHz, the
IC-A24 selects the DVOR mode automatically.
To show your aircraft's direction to (or from) the VOR station,
push , then push [1•
19
, then push [4• ] to select the
CDI
Operating frequency can not be
changed.
Each course deviation arrow
indicates a two-degree deviation.
Course indicator is fixed, but it
can be changed with the tuning
[DIAL] or keypad.
] to select the DVOR mode.
DVOR
Operating frequency can not be
changed.
Course deviation needle does not
appear.
Course indicator shows your
direction to (or from) the VOR
station.
D 'TO' or 'FROM' flag selection
The to-from flag indicators indicate whether the VOR naviga-
tion information is based on a course leading to the VOR
station or leading away from the VOR station.
Push , then push [3•
FROM
from 'TO' to 'FROM' or vice versa, respectively.
NOTE:
• When using the 'TO' flag and passing through the VOR station,
the 'TO' flag changes to the 'FROM' flag automatically.
• When turning power ON, the 'FROM' flag is selected automati-
cally.
D Selecting the next VOR station when using
CDI mode
(when using the course deviation needle)
q Push , then push [1•
DVOR
w Push the keypad or rotate [DIAL] to set the next VOR sta-
tion's frequency.
e Push , then push [4•
CDI
• Select 'TO' or 'FROM' flag, if desired.
] or [2• ] to change the flag
TO
] to select the DVOR mode.
] to select the CDI mode.
