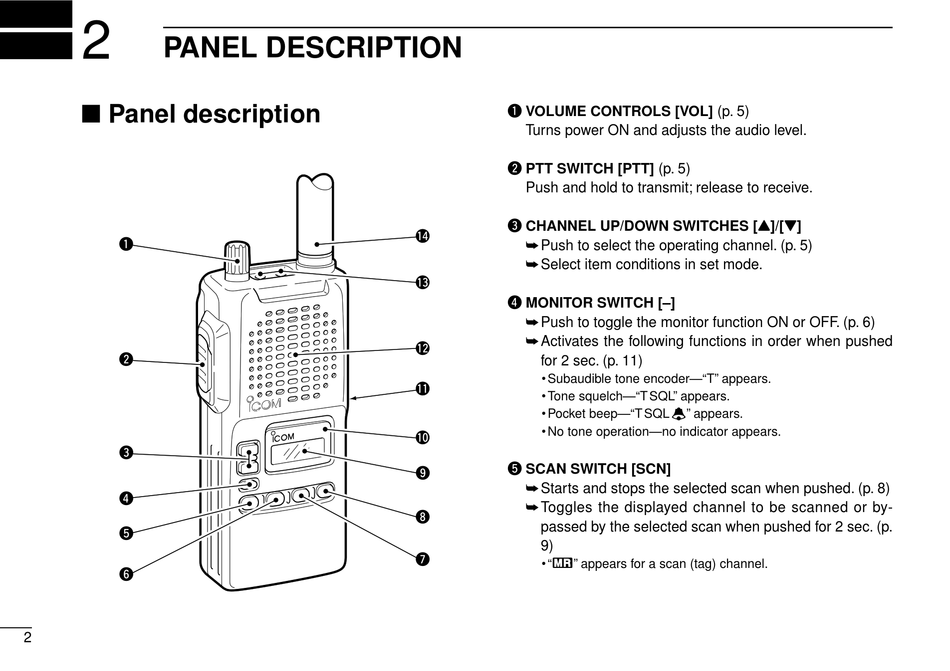

PANEL DESCRIPTION

Panel description
q
w
e
r
t
y
2
q VOLUME CONTROLS [VOL] (p. 5)
Turns power ON and adjusts the audio level.
w PTT SWITCH [PTT] (p. 5)
Push and hold to transmit; release to receive.
e CHANNEL UP/DOWN SWITCHES [Y]/[Z]
!4
Push to select the operating channel. (p. 5)
Select item conditions in set mode.
!3
r MONITOR SWITCH [–]
Push to toggle the monitor function ON or OFF. (p. 6)
Activates the following functions in order when pushed
!2
for 2 sec. (p. 11)
• Subaudible tone encoder—"T" appears.
!1
• Tone squelch—"T SQL" appears.
• Pocket beep—"T SQL ë" appears.
• No tone operation—no indicator appears.
!0
t SCAN SWITCH [SCN]
o
Starts and stops the selected scan when pushed. (p. 8)
Toggles the displayed channel to be scanned or by-
i
passed by the selected scan when pushed for 2 sec. (p.
9)
u
• "X" appears for a scan (tag) channel.
