Figure 1: Gxp21Xx/Gxp14Xx/Gxp116X Xml Api Via Http; Figure 2: Gxp21Xx/Gxp14Xx/Gxp116X Xml Api Structure 1 - Grandstream Networks Phone Book Guide Manual

Xml based downloadable phone book guide
Table of Contents

Advertisement

or TFTP as the transport protocol. The following figure shows how it works via HTTP as an example. First,
the GXP21xx/GXP14xx/GXP116x initiates the HTTP GET Request to the HTTP server and waits for the
response. Once the phone receives the response with XML content in BODY, it displays the information.
Two types of XML API architecture are introduced below, depending on whether the transaction is via LAN
or Internet.
1. A transaction in
GXP21xx/GXP14xx/GXP116x sends a request to the web server via HTTP/HTTPS/TFTP and waits for
a response with the XML contents. The web server will handle the request and communicate with the
application server to get the information for the XML phone book content display. The following figure
shows downloading XML phone book file via HTTP within a LAN.
2. If the above Web Server accesses Internet, it could interact with outside web server and respond with
real-time content to the GXP21xx/GXP14xx/GXP116x.
FIRMWARE VERSION 1.0.5.15

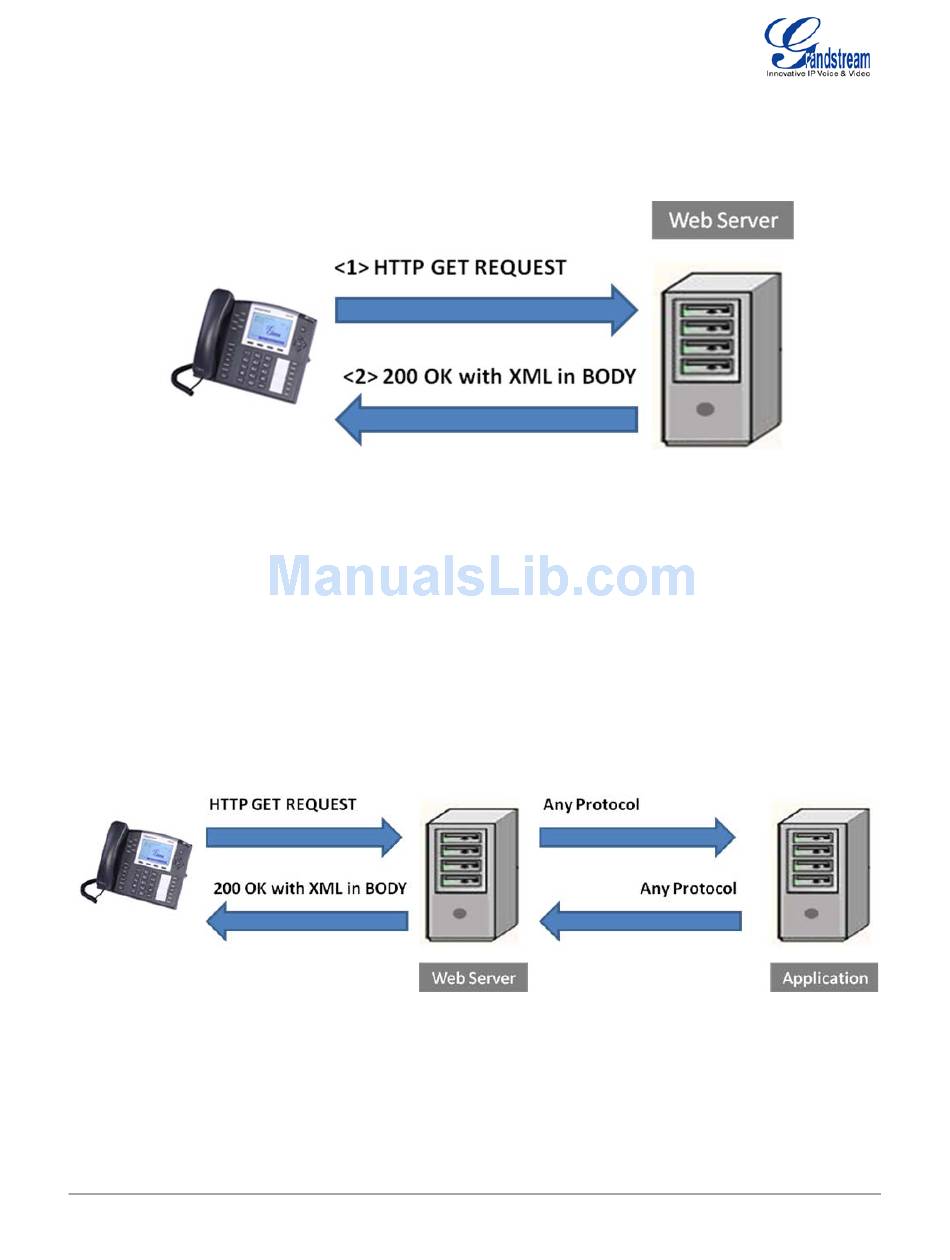

Figure 1: GXP21xx/GXP14xx/GXP116x XML API via HTTP

the
LAN
may
exchange

Figure 2: GXP21xx/GXP14xx/GXP116x XML API Structure 1

XML BASED DOWNLOADABLE PHONEBOOK GUIDE
information
in
the
following
manner.
The
Page 5 of 15
