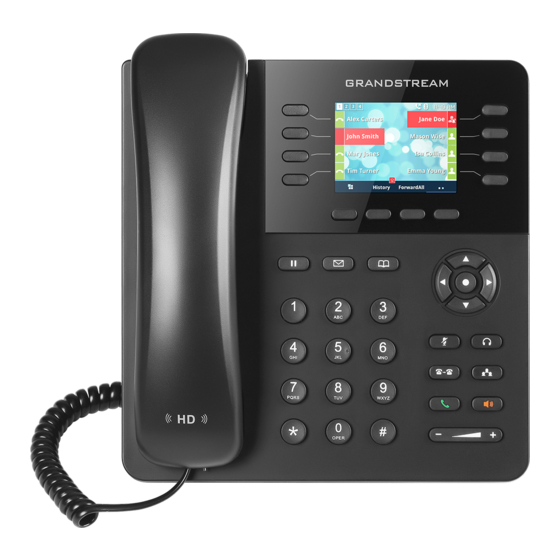

Grandstream Networks GXP21 Series Configuration User Manual
Hide thumbs
Also See for GXP21 Series:
- User manual (108 pages) ,
- Security manual (17 pages) ,
- Manual (15 pages)
Subscribe to Our Youtube Channel
Related Manuals for Grandstream Networks GXP21 Series
Summary of Contents for Grandstream Networks GXP21 Series
- Page 1 Grandstream Networks, Inc. GXP21xx/17xx/16xx IP phones BLF Configuration User Guide...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ......................3 OVERVIEW OF FUNCTIONS ..................4 Configuration Via Web Browser ......................4 BLF Key Configurations ........................5 Visual Indicators ..........................8 Directed Call Pickup ..........................9 Table of Figures Figure 1: Programmable Keys Settings ......................5 Figure 2: Configure Busy Lamp Field Key ....................6 Figure 3: Select Associated Account...................... -
Page 3: Introduction
INTRODUCTION Busy Lamp Field (BLF) feature allows an end user, such as attendant, to monitor the hook status of a list of users. GXP21xx/17xx/16xx supports Busy Lamp Field (BLF) on the Multi-Purpose Keys and Virtual Multi-purpose keys on the phone. GXP2140 and GXP2170 are expandable with 1 to 4 expansion modules to support BLF feature. This document serves as an end user guide on how to configure Grandstream GXP21xx/17xx/16xx Enterprise IP phones for Busy Lamp Field feature. -
Page 4: Overview Of Functions
OVERVIEW OF FUNCTIONS Grandstream GXP21xx/17xx/16xx Enterprise IP Phone supports Busy Lamp Field (BLF) feature. GXP21xx/17xx/16xx supports this feature by changing the color and status of the MPK/VPK indicators, associated with the monitored users, on the mounted MPK extensions board or Programmable Keys on the phone body. GXP21xx/17xx/16xx phones support this feature by changing the LED keys color and status on the MPKs/VPKs on phone body, GXP2140 and GXP2170 are expandable with 1 to 4 expansion modules to support BLF feature. -
Page 5: Blf Key Configurations
User Level User Password Web Pages Allowed Only Status and Basic Settings End User Level user Browse all pages Administrator admin admin Level Table 1: Default Passwords for Login Page The password is case sensitive with maximum length of 25 characters. ... -
Page 6: Figure 2: Configure Busy Lamp Field Key
Go down to the “Multi-Purpose Keys” or “Virtual Multi-Purpose keys” section of the page. Click on the dropdown menu of the key being set up. Scroll down and click on “Busy Lamp Field (BLF)”. Figure 2: Configure Busy Lamp Field Key On the “Account”... -
Page 7: Figure 3: Select Associated Account
Figure 3: Select Associated Account In the “Description” field, type the name of the individual or department that you want to associate with the extension being set up. Figure 4: Add Description. In the “Value” field, type the extension number for the extension being set up. P a g e BLF Configuration User Guide... -
Page 8: Visual Indicators
Figure 5: Add Extension Value Go to the bottom of the page and click on “Save”. Figure 6: Save changes. Visual Indicators The phone system is able to notify the end user the hook status of the monitored extension by changing the LED colors. -
Page 9: Directed Call Pickup
Extension Board VMPK (BLF Key Status (Only for MPK Monitored Background VPKs/MPKs Extension Status for (LED Indicator Extension Behavior GXP21xx) Status) Supported Models) Idle Solid green Solid green Solid green Placing a call Solid red Blinking green Blinking green Ringing Solid red Blinking red Blinking red...
