Summary of Contents for Goldmund MIMESIS 22 HISTORY
-
Page 1: User Manual

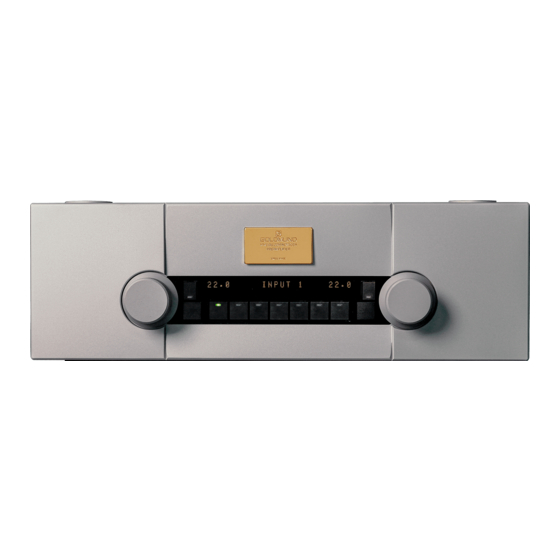

USER MANUAL GOLDMUND MIMESIS 22 HISTORY Analog Preamplifier... - Page 2 The guiding principle at Goldmund is to produce a precise sound with the least possible loss of quality through the different stages. Goldmund will never adopt a technology before it is sufficiently developed to satisfy the high quality standards we set.
-
Page 3: Table Of Contents
Table of Contents SETTING UP THE MIMESIS 22H POWER SUPPLY CONTROLS & UTILIZATION SOUND QUALITY OPTIMIZATION SAFETY FEATURES & MAINTENANCE TECHNICAL SPECIFICATIONS GOLDMUND MIMESIS 22H- Analog Preamplifier -3... - Page 4 Nevertheless, MIMESIS Preamplifier, Goldmund engineering excellence delivers extreme performance in a simple and convenient format that we hope you will enjoy for many years to come. GOLDMUND MIMESIS 22H- Analog Preamplifier -4...
-
Page 5: Setting Up The Mimesis 22H
Ultra low reflection interconnect cables are absolutely mandatory to retain the time integrity that the preamplifier is designed to provide. In all typical cases Goldmund recommends using the special Goldmund Lineal interconnect cables. - Page 6 SETTING UP THE MIMESIS 22H (Ctd.) CHOICE OF PREAMPLIFIER LOCATION The Goldmund MIMESIS 22H preamplifier generates a significant amount of heat. It is necessary to allow adequate ventilation for proper cooling of the heat sinks. Avoid any location which is not properly ventilated. Avoid stacking equipment and do not locate the preamplifier close to equipment that is sensitive to temperature.
- Page 7 Warning! If the line voltage provided is not appropriate as supplied, please consult your dealer. ATTENTION: At the 220V position, the Goldmund MIMESIS 22H preamplifier will function properly for main line voltages between 200V and 240V. At the 110V position, the main line must deliver between 105 and 125V.
- Page 8 Do not use the direct input labeled “SSP Input” if you are not using a linked configuration with a Goldmund Mimesis 20. If your configuration includes the special software modules which allow the connection of several units together, use the DB9 terminated cable provided with this option to connect the MIMESIS 22H to these units and follow the instructions delivered with the software.
-
Page 9: Power Supply
POWER SUPPLY POWER SUPPLY The main POWER switch is located on the back panel of the Goldmund MIMESIS 22H power supply. In regular use, this switch should be left permanently ON and the circuits of the preamplifier activated or deactivated using the STANDBY ON/OFF. -
Page 10: Controls & Utilization
CONTROLS & UTILIZATION The Goldmund MIMESIS 22H is designed to capture, control, shape and nurture the fragile source inputs, supporting adjustment of volume and balance to deliver your desired output signal. The primary control functions supporting these processes are outlined below. - Page 11 A red Led is illuminated to indicate the activation of the phase modification. RECORD To select the RECORD INPUT function press the REC/MENU button (5). The display will read ‘SELECT REC INPUT’. Then press the input button (2) to select RECORD INPUT. GOLDMUND MIMESIS 22H- Analog Preamplifier -11...
- Page 12 These are: - 10 seconds of display time, - 20 seconds, - 30 seconds or - Permanent display Press PHASE/EDIT button (4) to increase the value Press MUTE/PWR button (3) to decrease the value GOLDMUND MIMESIS 22H- Analog Preamplifier -12...
- Page 13 To access to this menu, select the SET/PWR (1) and the PHASE/EDIT (4) buttons simultaneously. Press PHASE/EDIT button (4) to pass to the next menu ‘page’ To exit the menu, select the SET/PWR (1) and the PHASE/EDIT (4) buttons simultaneously again. GOLDMUND MIMESIS 22H- Analog Preamplifier -13...
- Page 14 The default Input Channels can be reassigned using up to 14 characters. Select input with ‘IN1’ to ‘IN7’ button (2) Use the left rotary switch BALANCE (6) to select the character to be changed. Use the left rotary switch VOLUME (7) to change the character. GOLDMUND MIMESIS 22H- Analog Preamplifier -14...
-
Page 15: Sound Quality Optimization
The critical circuits have to warm up to around +55 degrees Celsius (+131 degrees Fahrenheit) before achieving their optimal performances. This is why Goldmund recommends that the MIMESIS 22H is always powered on. ABSOLUTE PHASE Your MIMESIS 22H preamplifier has an absolute phase inverter switch. -
Page 16: Safety Features & Maintenance
SAFETY FEATURES & MAINTENANCE PROTECTION CIRCUIT The Goldmund MIMESIS 22H preamplifier uses a special protection circuit to protect the power amplifier and the speakers against a power supply failure or AC shut-down of the preamplifier. MAINTENANCE To clean your Mimesis use only a soft, clean, dry or slightly damp cloth. Avoid using domestic cleaning products. -
Page 17: Technical Specifications
THD unbalanced in to unbalanced out 0.0002% flat with frequency THD balanced in to balanced out 0.0001% flat with frequency IMD unbalanced in to unbalanced out 0.0002% IMD balanced in to balanced out 0.0001% GOLDMUND MIMESIS 22H- Analog Preamplifier -17... - Page 18 Connection optional between earth and ground to cancel all ground loops. SAFETY FEATURES SAFETY FEATURES SAFETY FEATURES SAFETY FEATURES Automatic switching to MUTING if the AC line drops or is interrupted. Automatic protection against tape loops. GOLDMUND MIMESIS 22H- Analog Preamplifier -18...
- Page 19 Preamplifier 440 W x 375 D x 140 H (mm). Power Supply 440 W x 360 D x 110 H (mm). Total Weight: 17 kg. WARRA WARRA WARRA WARRANTY 3 years, parts and labor. GOLDMUND MIMESIS 22H- Analog Preamplifier -19...
