Page 1: User Manual

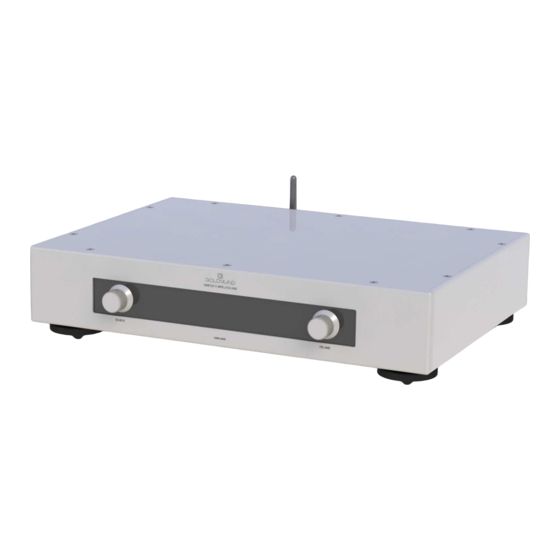

USER MANUAL GOLDMUND MIMESIS 11 Wireless Hub... - Page 2 At Goldmund, we strive to lead in the creation, development and manufacture of the industry’s most advanced technologies, including audio and video systems. The guiding principle at Goldmund is to produce a precise sound with the least possible loss of quality through the different stages. Goldmund will never adopt a technology before it is sufficiently developed to satisfy the high quality standards we set.
-
Page 3: Table Of Contents
1.3 CHOICE OF THE MIMESIS 11HUB LOCATION 1.4 POWER SUPPLY 1.5 FIRST INSTALLATION & CONNECTIONS OPERATING THE MIMESIS 11 HUB 2.1 FRONT PANEL FUNCTIONS 2.2 REMOTE CONTROL MAINTENANCE TECHNICAL SPECIFICATIONS BACK PANEL SCHEMATICS GOLDMUND MIMESIS 11 – WIRELESS HUB - 2... - Page 4 IMPORTANT PLEASE DO NOT CONNECT ANY CABLES OR MOVE ANY PARTS BEFORE READING THE FOLLOWING INSTRUCTIONS. GOLDMUND MIMESIS 11 – WIRELESS HUB - 3...
-
Page 5: Setting Up The Mimesis 11Hub
SPDIF cables in digital to keep the time integrity that the Mimesis 11 Hub is designed to provide. In all typical cases Goldmund recommends using the special Goldmund Lineal interconnect and digital cables. -
Page 6: Choice Of The Mimesis 11Hub Location
If you move after purchasing the Mimesis 11 Hub to an area using a different AC mains voltage, you can change the voltage yourself or consult your local Goldmund dealer for assistance in doing so. -
Page 7: First Installation & Connections
FIRST INSTALLATION & CONNECTIONS Wiring: Connect the power cord to the back of the Mimesis 11 Hub and plug it into the nearest wall plug. For safety reasons, use only a 3 lugs grounded plug. To get the best sound from the Mimesis 11 Hub, avoid any multi-way plugs or extension cords. -
Page 8: Operating The Mimesis 11 Hub
The left and right arrow keys are selecting the source to listen. Left key decreases the input, right key increases the input. MUTING The mute circuit is controlled using the remote. To mute or un-mute the Mimesis 11 Hub with the remote, press the central key. GOLDMUND MIMESIS 11 – WIRELESS HUB - 7... -
Page 9: Maintenance
MAINTENANCE To clean your Mimesis 11 use only a soft, clean, dry or slightly damp cloth. Avoid using domestic cleaning products. There are no user serviceable parts inside the Mimesis 11 Hub. Unauthorized servicing or alteration invalidates the manufacturer’s warranty. - Page 10 Updated versions of this manual will be posted on our website at www.goldmund.com. WARRANTY Please visit our support page at • http://www.goldmund.com/support/re 3 years, parts and labor. gister to register your Goldmund product for warranty. GOLDMUND MIMESIS 11 – WIRELESS HUB - 9...
-
Page 11: Back Panel Schematics
BACK PANEL SCHEMATICS GOLDMUND MIMESIS 11 – WIRELESS HUB - 10 RevA...
