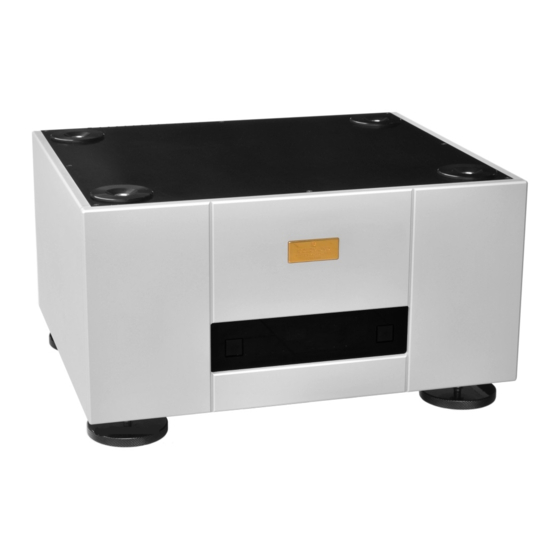

- Page 1 USER MANUAL GOLDMUND MIMESIS 29M Millennium Edition Power Amplifier...
- Page 2 CONGRATULATIONS Thank you for purchasing the Goldmund Mimesis 29M Millennium Edition. You have acquired the best Analogue Power Amplifier ever made for professional and domestic uses. Please take some time to read this manual. It may provide you with useful information to make your pleasure of listening to the Mimesis 29M even higher.
-
Page 3: Choice Of Amplifier Location
CHOICE OF AMPLIFIER LOCATION The GOLDMUND MIMESIS 29M amplifier, as all high quality amplifiers may generate a large amount of heat if driven at high power. It is mandatory to allow a proper cooling of the heat sinks. Avoid any location which is not properly vented and avoid to put on top of it equipment sensitive to temperature. -
Page 4: Line Voltage Adjustment
110V position, the main line must deliver between 95 and 125V. If your main line is usually out of these tolerances, please consult your GOLDMUND dealer. Please check the value of the main line fuse. This fuse is located on the back panel of the amplifier, above the two power cord receptacles. - Page 5 Connect the speaker cables to the red and black terminals accessible in the back of the amplifier, or, if you use a Goldmund High Definition speaker cable, you can connect directly the speaker cables to the coaxial plugs on the back panel of the amplifier, bypassing the amplifier adapter module of the speaker cable.
-
Page 6: Amplifier Controls
AMPLIFIER CONTROLS Normal Operation On the front plate of the GOLDMUND MIMESIS 29M amplifier you will find only two POWER keys. In the Standard Mode, the two POWER keys have to be activated simultaneously to power the amp on. This security feature is provided to avoid any fortuitous power on or power off. - Page 7 Home breakers. To avoid this big surge, the Goldmund amplifier provides a "ranking" adjustment which gives each amp of the system a "rank" in the Auto-Power ON mode.
-
Page 8: Sound Quality Optimization
10 to 15 minutes. - Speaker polarity. Even if you have a phase inverter on your preamplifier (as on the GOLDMUND MIMESIS 2 or MIMESIS 22), and even if you have carefully selected the proper... -
Page 9: Sound Quality Optimization Ctd
Use the four pin-point feet to couple the amplifier to the supporting furniture or to the floor. With a very top system, the sonic improvement when the proper grounding is found is obvious and worth the try. Power Amplifier User Manual – Goldmund Mimesis 22M... -
Page 10: Safety Features
SAFETY FEATURES The GOLDMUND MIMESIS 29M amplifier provides sophisticated features to protect the amplifier and the speakers against all mishandle or component failure. However precautions must be taken to avoid problems with a very high power amplifier. - Protection against DC. - Page 11 To avoid the fuses to blow, avoid to short-circuit the output terminals accidentally. Always switch OFF the amp before trying any manipulation of the speaker cables. There is no risk to leave the speaker terminals unconnected when the amp is on. Power Amplifier User Manual – Goldmund Mimesis 22M...
-
Page 12: Technical Data
Figures valid for all levels from 0 to 40 V / 8 Ohms : - Dynamic : TID < 0.01 % (- 80 dB). - Static : THD < 0.01 % (- 80 dB). Power Amplifier User Manual – Goldmund Mimesis 22M... - Page 13 - Floating chassis connected to mains earth. - Switch for optionally connecting both. SAFETY FEATURES - AC voltage fuse : min 10 A slow-blow for 220 V / 16 A slow-blow for 110 V. Power Amplifier User Manual – Goldmund Mimesis 22M...
- Page 14 - Input connector XLR for balanced input (right and left). SIZE AND WEIGHT - 44 cm (17") W x 44 cm (17") D x 23.5 cm (9.25") H. - Weight : 65 kg net. WARRANTY - 3 years parts and labor. Power Amplifier User Manual – Goldmund Mimesis 22M...
