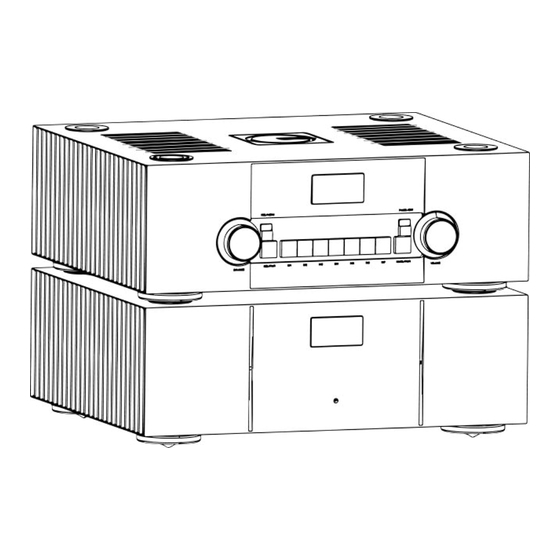

- Page 2 Since 1978, Goldmund has been dedicated to developing audio equipment of the highest quality and accuracy to immerse you in the most realistic audio experience possible. At Goldmund, we are committed to being at the forefront of the creation, development, and manufacture of the industry's most advanced technologies, including audio systems and music distribution.
- Page 3 MIMESIS REFERENCE is quite simple and convenient. IMPORTANT PLEASE DO NOT CONNECT ANY CABLES OR MOVE ANY PARTS BEFORE READING THE FOLLOWING INSTRUCTIONS. User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 3 -...
- Page 4 User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 4 -...
- Page 5 For perfect analogue amplification, Goldmund recommends the Goldmund Telos series of power amplifiers. The connection between the analogue sources and the preamplifier as well as between the preamplifier and the power amplifiers are also critical.
- Page 6 CAUTION Should you need to return the MIMESIS REFERENCE to the factory or your local representative for warranty repair, please be aware that it must be repacked using the original packaging. This packaging has been designed to specifically safeguard your MIMESIS REFERENCE during transit.
- Page 7 For detailed information regarding the acceptable range of main line voltage, please refer to the Technical Specifications section at the end of this manual. Should the nominal line voltage prevalent in your region fall outside this range, please reach out to your local Goldmund dealer for assistance.
- Page 8 Connect the cabling from the power supply output “Power Supplies” to the preamplifier input point labeled “Power”. Warning! The next stage in setting up your MIMESIS REFERENCE is to connect your sources, power amplifiers and other peripheral devices. All devices should be disconnected from mains power until safe.
- Page 9 The main POWER switch is located on the rear panel of the Goldmund MIMESIS REFERENCE power supply. In regular use, this switch should be left permanently ON and the circuits of the preamplifier activated or deactivated using the STANDBY ON/OFF.
-
Page 10: Input Selection
The Goldmund MIMESIS REFERENCE is designed to capture, control, shape and nurture the fragile source inputs, supporting adjustment of volume and balance to deliver your desired output signal. The primary control functions supporting these processes are outlined below. STANDBY To activate the preamplifier (set to ON) put it into STANDBY ON mode by pressing the SET/PWR and the MUTE/PWR buttons simultaneously. -
Page 11: Balance Adjustment
RESET button. RECORD To select the RECORD INPUT function, press the REC/MENU button. The display will read SELECT REC INPUT. Then press the input button to select the RECORD INPUT. User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 11 -... -
Page 12: Parameters Menu
2. Display Timing The MIMESIS REFERENCE supports four-time out values are available. These are: • 10 seconds of display time, • 20 seconds, • 30 seconds or • Permanent display User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 12 -... -
Page 13: Balanced Input
PARAMETERS MENU (Ctd.) 3. Balanced Input The MIMESIS REFERENCE supports the option of either unbalanced or balanced inputs on inputs 5, 6 and 7. The default setting is for the inputs to be unbalanced. Select balanced input functions using the IN5 to IN7 buttons. -
Page 14: Input Gain
Select input using the ‘IN1’ to ‘IN7’ button Use the right rotary switch VOLUME to change input gain Input gain limits are fixed by the global gain. The maximum gain difference between inputs is 24dB. User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 14 -... -
Page 15: Input Name
Trial and error is therefore often necessary. GOLDMUND “MECHANICAL GROUNDING” In the MIMESIS REFERENCE preamplifier, Goldmund has implemented its renowned construction method to provide an optimized vibration evacuation path. User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 15 -... -
Page 16: Protection Circuit
To get all the benefits of this improvement, the MIMESIS REFERENCE must be located on a very rigid support, directly coupled to the building. Avoid any decoupling material. If carpet decouples the preamplifier and ground, use pin-point supports to couple the furniture to the floor. - Page 17 Propagation delay <300 ns stable with frequency from DC to 200 kHz DISTORTION • 1 V RMS output level, 80 kHz measurement bandwidth • 600 ohms termination impedance • THD unbalanced input to unbalanced output 0.0002 % flat with frequency User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 17 -...
- Page 18 Input voltage range: +/- 15 % • Maximum power consumption: 70 W GROUNDING • Separated ground and earth signal • Connection optional between earth and ground to cancel all ground loops User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 18 -...
-
Page 19: Safety Features
Input connectors XLR (right & left) balanced • Input connectors RCA (right & left) for Tape and line inputs • Link float switch • RS232 Connector POWER SUPPLY CONTROLS • Main fuse (2.5 A slow-blow) User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 19 -... -
Page 20: Size And Weight
44 W x 16 H x 39 D (cm) – 17.3 W x 6.3 H x 15.4 D (inch) • 25 kg Information and product specifications contained in this manual are subject to change without prior notice. Visit our website at www.goldmund.com User Manual – MIMESIS REFERENCE - Analogue Preamplifier - 20 -...
