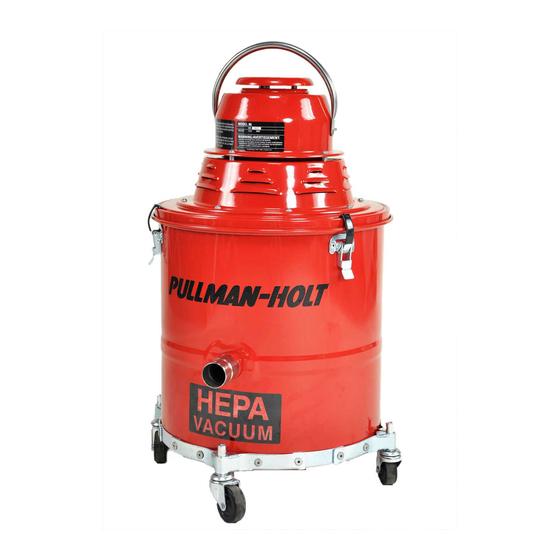

Pullman Holt 86ASB-5D4C Operation & Care Instructions Manual

Compact dry asbestos vacuum cleaner
Hide thumbs

Advertisement

Quick Links

Model 86ASB-5D4C
Compact Dry Asbestos Vacuum Cleaner
This vacuum is a high quality, precision made product.
All parts used in the manufacturing of this vacuum
cleaner have passed rigid quality control standards prior
to assembly and an "each unit" final inspection prior to
packaging is your assurance of proper assembly. This
vacuum cleaner was protectively packed to prevent pos-
sible damage in transit. Should damage occur, please
notify the transporting carrier immediately for loss
and/or claim.
MOTOR:
The suction head of this vacuum cleaner is equipped with a 2 stage,
7.2 amp, 1HP by-pass motor, developing 96 CFM.
When removing the motor head, care in handling is essential.
Dropping, banging or other abuse may result in poor vacuum seal
and a loss in suction power and will invalidate your warranty.
Operation & Care Instructions
Save For Future Reference

IMPORTANT SAFEGUARDS

EXTENSION CORDS:
Vacuums that have 3 wire cords requiring grounding must only be
used with extension cords that have 3-prong grounding type plugs
and 3-pole receptacles.
To determine the minimum wire size required, refer to the chart
below:
Minimum Wire Size (AWG) of Extension Cord
Nameplate
Total Extension Cord Length (Feet)
Rating-Amps
25
50
0-10.0
18
18
10.1-13.0
16
16
13.1-15.0
12
12
Before using an extension cord,inspect it for loose or exposed wires,
damaged insulation and defective fitting.
CAUTION
Always disconnect power cable from outlet when working
on this vacuum.
75
100 125 150 175 200
16
16
14
14
12
14
14
14
12
12
12
12
12
12
12
12
12

Advertisement

loading

  Related Manuals for Pullman Holt 86ASB-5D4C

  Summary of Contents for Pullman Holt 86ASB-5D4C

  • Page 1: Important Safeguards

    Operation & Care Instructions Save For Future Reference Model 86ASB-5D4C Compact Dry Asbestos Vacuum Cleaner This vacuum is a high quality, precision made product. All parts used in the manufacturing of this vacuum cleaner have passed rigid quality control standards prior to assembly and an “each unit”...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANTES MESURES DE SÉCURITÉ L’utilisation d’un appareil électrique demande certaines précau- When using an electrical appliance, basic precautions should tions: always be followed, including the following:. LIRE TOUTES LES INSTRUCTIONS AVANT DE READ ALL INSTRUCTIONS FAIRE FONCTIONNER CET APPA R E I L BEFORE USING THIS VACUUM CLEANER AVERTISSEMENT: WARNING...
  • Page 3: Operation

    OPERATION FOR DRY OPERATION: With the HEPA Filter Assembly in place, the motor head securely clamped,and the metal hose adapter connected to the inlet,plug the power cable into the proper outlet. Select the appropriate hose, wand and/or tool and connect to the tank inlet. The vacuum clean- er is ready for dry use.
  • Page 4: Grounding Instructions

    GROUNDING INSTRUCTIONS INSTRUCTIONS VISANT LA MISE À LA T E R R E This appliance must be grounded. If it should malfunction or Cet appareil doit être mis à la terre. En cas de défaillance ou de breakdown, grounding provides a path of least resistance for elec- panne éventuelles, la mise à...
  • Page 5: About The Machine

    ABOUT THE MACHINE VACUUM ASSEMBLY GUIDE: STORAGE: NOTE: No lubrication is required. Service of electrical parts must be Store in a dry location indoors. Wrap the cord carefully around the performed by an authorized service representative. vacuum head to avoid accidental damage. DISPOSABLE BAG CHANGING: LIMITED WARRANTY: Over filling the bag will result in loss of vacuum efficiency.
  • Page 6: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Symptom Possible Cause Corrective Action Loss of Suction 1. Obstruction in hose or wand 1. Reverse hose on tank inlet. 2. Clogged air filter assembly 2. Tap Never-Clog Bag or wash if necessar y. Replace HEPPA filter. ® 3.
