Model 102 12P

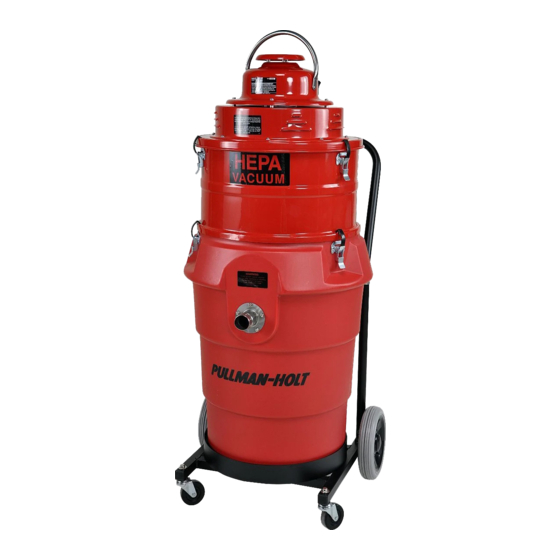

Wet/Dry Vacuum Cleaner
This vacuum cleaner is a high quality, precision made
product. All parts used in the manufacturing of this
vacuum cleaner have passed rigid quality control
standards prior to assembly and an "each unit" fi nal
inspection prior to packaging is your assurance of
proper assembly. This vacuum cleaner was protectively
packed to prevent possible damage in transit. Should
damage occur, please notify the transporting carrier
immediately for loss and/or claim.
MOTOR:
The suction head of this vacuum cleaner is
equipped with a 2 stage, 11.1 amp, 2HP by-pass
motor, developing 105" waterlift and 110 CFM.
When removing the motor head, care in handling
is essential. Dropping, banging or other abuse
may result in poor vacuum seal and a loss in
suction power and will invalidate your warranty.
CAUTION
Never lubricate the vacuum cleaner motor.
The motor bearings are permanently sealed.
This vacuum is intended for indoor or outdoor
use and for wet pickup, but it is not intended
to be exposed to rain.
Operation & Care Instructions
Save For Future Reference

IMPORTANT SAFEGUARDS

EXTENSION CORDS:

Machines that have 3 wire cords requiring
grounding must only be used with extension
cords that have 3-prong grounding type plugs
and 3-pole receptacles.
To determine the minimum wire size required,
refer to the chart below:
Minimum Wire Size (AWG) of Extension Cord
Nameplate
Rating-Amps
25
50
0-10.0
18
18
10.1-13.0
16
16
13.1-15.0
12
12
Before using an extension cord, inspect it for
loose or exposed wires, damaged insulation and
defective fi tting.
NOTE: Warranty claims will be honored ONLY if
handled by an authorized Pullman-Holt Service
Center unless other prior arrangements have been
made with the Pullman-Holt Service Department.
Total Extension Cord Length (Feet)
75
100
125
150
16
16
14
14
14
14
14
12
12
12
12
12
175
200
12
12
12
12
12
-
