Festool MFS Fence System Instruction Manual page 6

head machine screw to pass through to
thread into a short "V" nut. By sliding that
short "V" nut into the side "V" track in an-
other unit, two extruded pieces can be
assembled at right angles to one another.

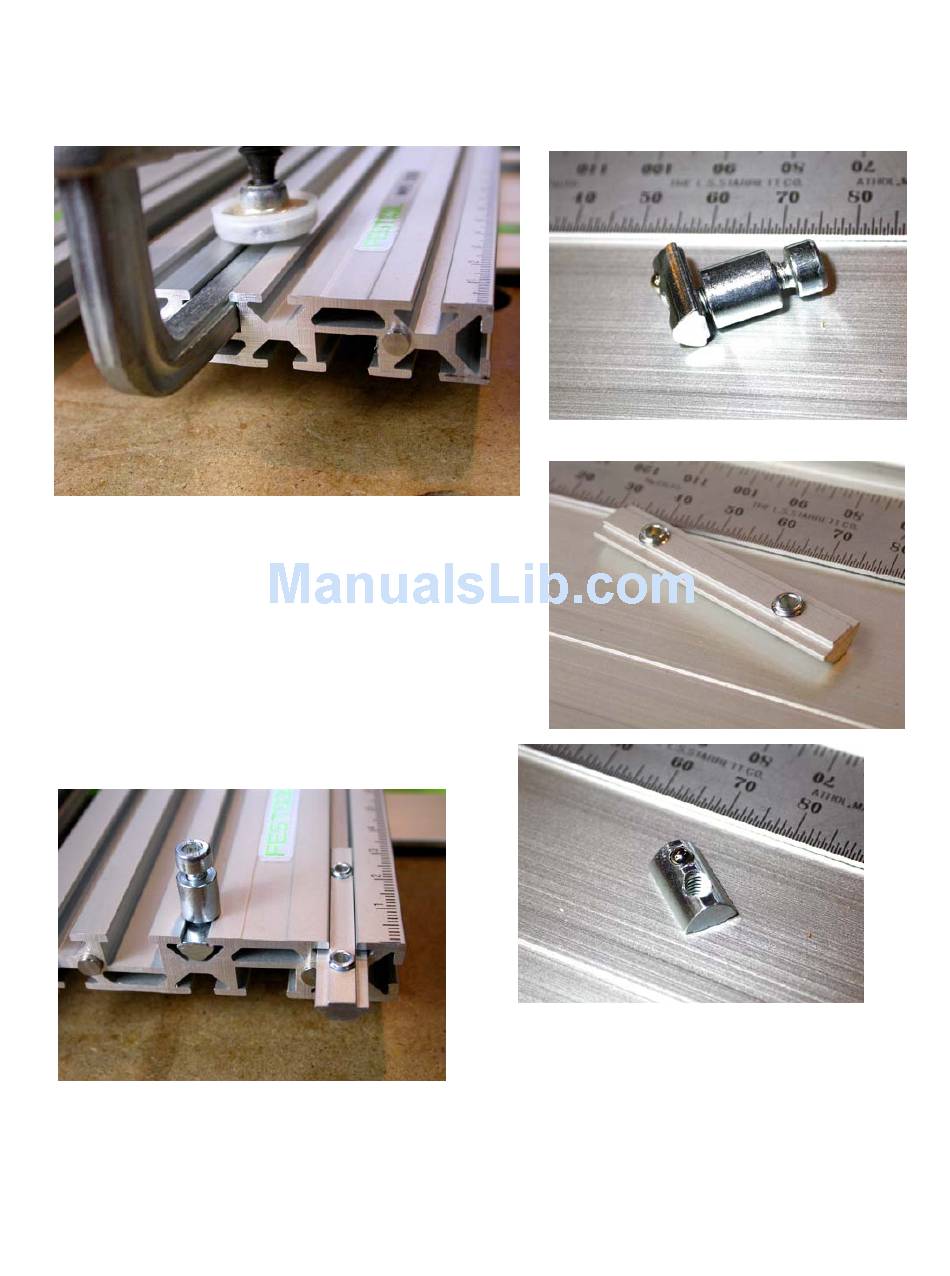

The picture above shows how a standard
Festool "F" style clamp (48957 and
489571) fits into the "T" slot on either face
so you have lots of options as to how to
clamp these profiles to your work piece or
to a Festool Multi-function table.
This picture shows how the special MFS
"V" nuts fit into the "V" track to hold all
kinds of jigs and fixtures. The round
piece in the center is a pivot point for the
6
circle and arc routing which is easily done
using the MFS profiles. Here are detailed
shots of that standard piece and the
two standard "V" nuts. The one with two
holes is threaded for 5mm, the smaller
one with the detent ball for 4mm.
