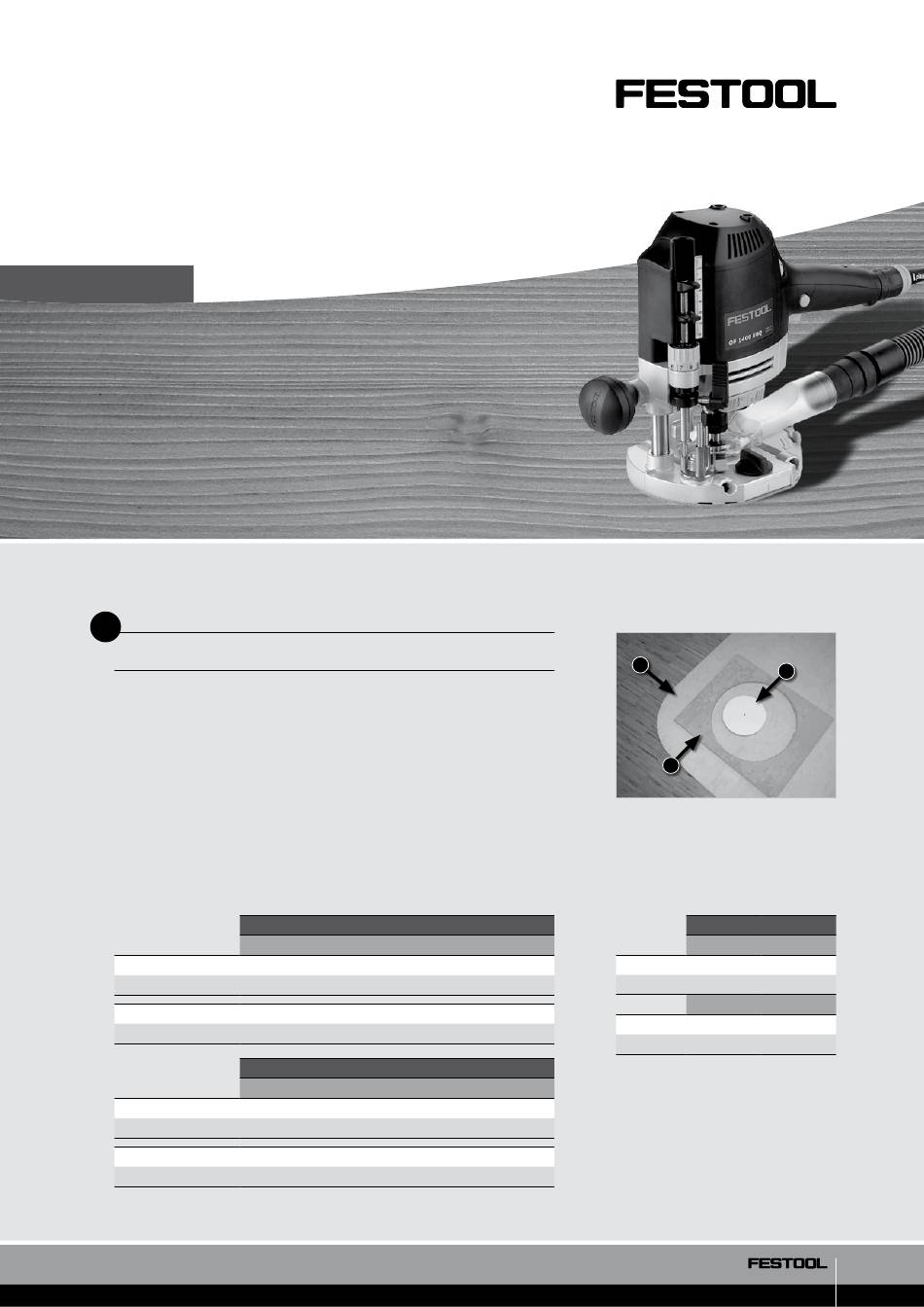

Festool MFS Series Manual

No. 530
Routing circles using the MFS
routing template
A
Description

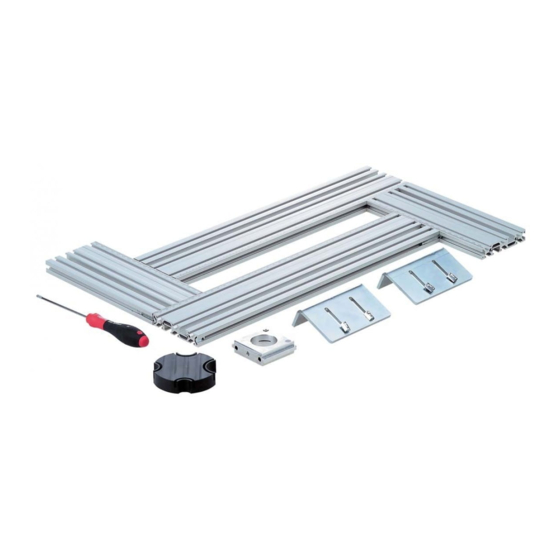

By using the MFS 400 or the MFS 700 templates, radii (1), round cutouts (2)
and circles (3) can be made easily and quickly.
Applications: loudspeaker enclosures, transparent cutouts, counters,
wash basins, ...
The largest radius that can be routed, depending upon the particular MFS,
can be found from the table. However, the cutter dia. and the type of radius
that is to be produced must be taken into consideration!
Reference dimension (mm)
Max. outer radius
Max. inner radius
Max. outer radius
Min. inner radius
Reference dimension (mm)
Max. outer radius
Max. inner radius
Max. outer radius
Min. inner radius
MFS 400
Calculation
306 306 + cutter diameter / 2
306 306 – cutter diameter / 2
37 37 + cutter diameter / 2
37 37 – cutter diameter / 2
MFS 700
Calculation
606 606 + cutter diameter / 2
606 606 – cutter diameter / 2
37 37 + cutter diameter / 2
37 37 – cutter diameter / 2
1
3
2
530/01
Example: For a 12 mm dia. router
bit, the following radius values are
produced:
MFS 400 MFS 700
Max. radius (mm)
Outer 312 612
Inner 300 600
Min. radius (mm)
Outer 43
Inner 31
43
41
1/3
