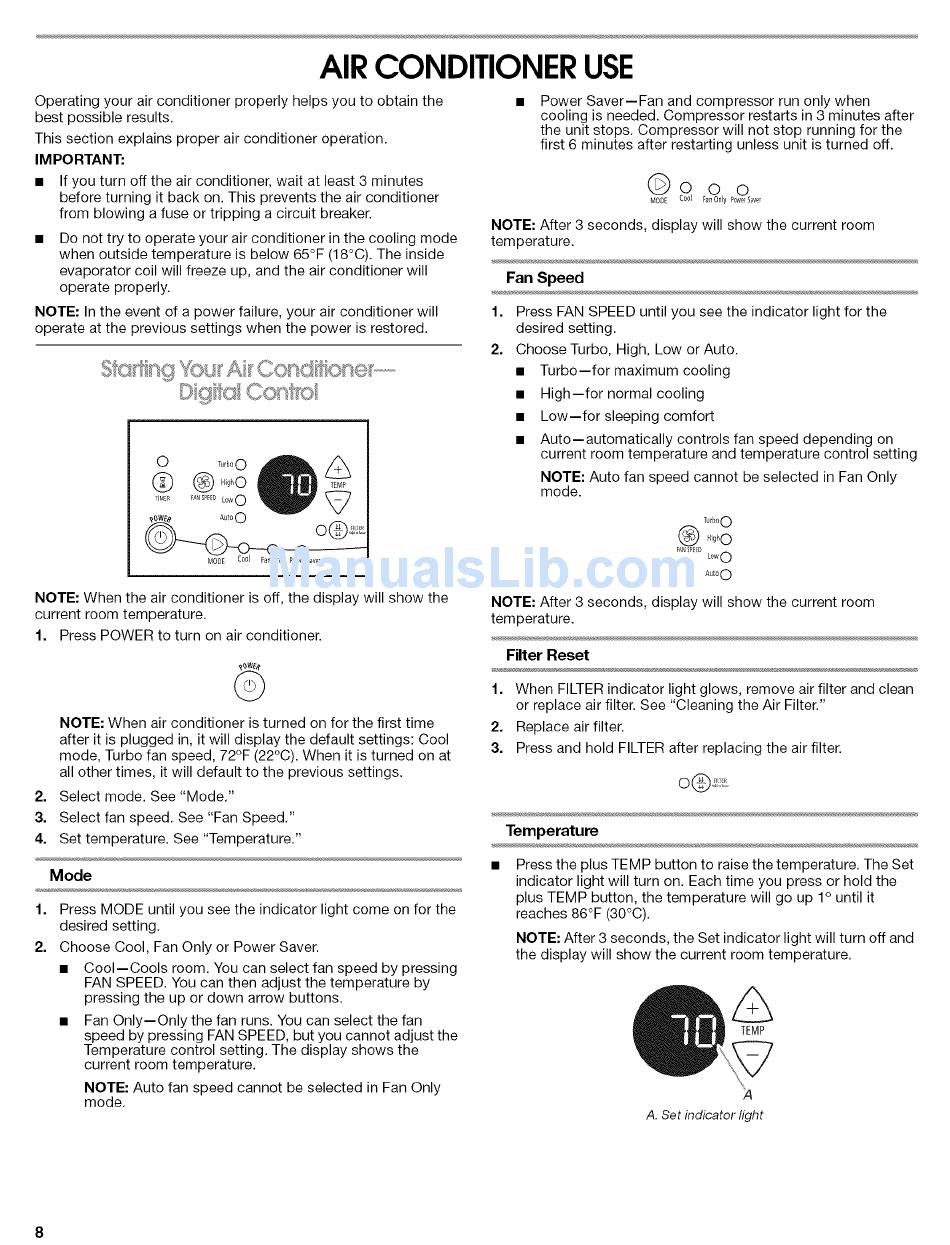

AIR CONDITIONER USE
Operating your air conditioner
properly helps you to obtain the
best possible results.
This section explains proper air conditioner operation.
IMPORTANT:
If you turn off the air conditioner,
wait at least 3 minutes
before turning it back on. This prevents the air conditioner
from blowing a fuse or tripping a circuit breaker.
Do not try to operate your air conditioner
in the cooling mode
when outside temperature is below 65°F (18°C). The inside
evaporator coil will freeze up, and the air conditioner will
operate properly.
NOTE: In the event of a power failure, your air conditioner
will
operate at the previous settings when the power is restored.
°'_ <" *" ,,M,3 }_;J
NOTE: When the air conditioner
is off, the display will show the
current room temperature.
1. Press POWER to turn on air conditioner.
NOTE: When air conditioner
is turned on for the first time
after it is plugged in, it will display the default settings: Cool
mode, Turbo fan speed, 72°F (22°C). When it is turned on at
all other times, it will default to the previous settings.
2. Select mode. See "Mode."
3. Select fan speed. See "Fan Speed."
4. Set temperature.
See "Temperature."
Mode
1,
2.
Press MODE until you see the indicator light come on for the
desired setting.
Choose Cool, Fan Only or Power Saver.
Cool--Cools
room. You can select fan speed by pressing
FAN SPEED. You can then adjust the temperature
by
pressing the up or down arrow buttons.
Fan Only--Only
the fan runs. You can select the fan
speed by pressing FAN SPEED, but you cannot adjust the
Temperature control setting. The display shows the
current room temperature.
NOTE: Auto fan speed cannot be selected in Fan Only
mode.
Power Saver--Fan
and compressor
run only when
cooling is needed. Compressor restarts in 3 minutes after
the unit stops. Compressor
will not stop running for the
first 6 minutes after restarting unless unit is turned off.
( ooo
_700E
F_n Only_o_I_IS_r
NOTE: After 3 seconds, display will show the current room
temperature.
Fan Speed
1. Press FAN SPEED until you see the indicator light for the
desired setting.
2. Choose Turbo, High, Low or Auto.
Turbo--for
maximum cooling
High--for
normal cooling
Low--for
sleeping comfort
Auto--automatically
controls fan speed depending on
current room temperature
and temperature control setting
NOTE: Auto fan speed cannot be selected in Fan Only
mode.
T@00
(_) ,_hO
r,_ S_ D LowO
A_t00
NOTE: After 3 seconds, display will show the current room
temperature.
Filter Reset
1. When FILTER indicator light glows, remove air filter and clean
or replace air filter. See "Cleaning the Air Filter."
2. Replace air filter.
3. Press and hold FILTER after replacing the air filter.
Temperature
Press the plus TEMP button to raise the temperature.
The Set
indicator light will turn on. Each time you press or hold the
plus TEMP button, the temperature
will go up 1° until it
reaches 86°F (30°C).
NOTE: After 3 seconds, the Set indicator light will turn off and
the display will show the current room temperature.
TEMP
;4
A. Set indicator light
