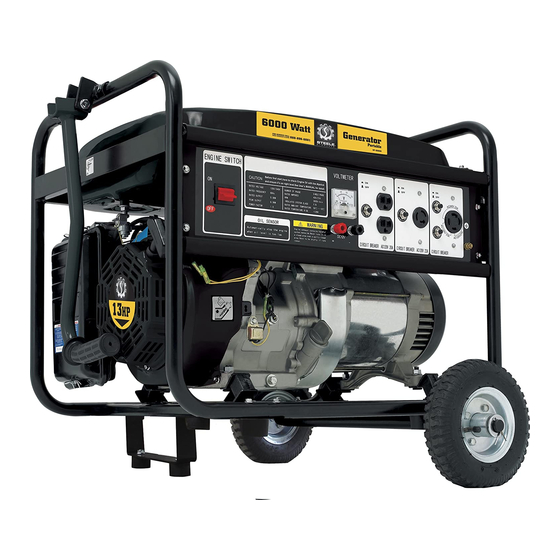

STEELE PRODUCTS SP-GG600 Owner's Manual

6000 watt generator with mobility kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

it Uenerntur
FOR SERVICE CALL: @OQ
QaE
EQ@
PARA SERVICI0
LLAME. • UUUmU_UmUUU
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-GG600 and is the answer not in the manual?

Questions and answers

Ralph Hustek
March 4, 2025

Do they have an electrical schematic?

User image 67c7190a412de
0

Related Manuals for STEELE PRODUCTS SP-GG600

Summary of Contents for STEELE PRODUCTS SP-GG600

  • Page 1 it Uenerntur FOR SERVICE CALL: @OQ PARA SERVICI0 LLAME. • UUUmU_UmUUU...
  • Page 2 6000W Table of Contents Topic Page Limited Warrant Safety Guidelines General Precautions Battery Assembly Operation Inspection, Cleaning and Maintenance Installation Compliance Specifications General Parts Listing WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL...

  • Page 3: Limited Warranty

    O er's Manual Limited Warranty STEELE® warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase.
  • Page 4 6000W Generator Limited Warranty (cont'd) THIS WARRANTY DOES NOT COVER: • Merchandise sold as reconditioned, used as rental equipment, or floor or display models. • Merchandise that has become damaged or inoperative because of ordinary wear, misuse, cold, heat, rain, excessive humidity, freeze damage, use of improper...

  • Page 5: Safety Guidelines - Definitions

    Safety Guidelines - Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections.

  • Page 6: General Precautions

    6000W Generator General Precautions WARNING! FAILURE TO FOLLOW THESE iNSTRUCTiONS CAN RESULT SEVERE iNJURY OR DEATH. CAUTION: FAILURE TO FOLLOW THESE iNSTRUCTiONS CAN ALSO RESULT iN DAMAGE TO THE TOOL AND/OR THE iTEM YOU ARE WORKING Carbon Monoxide When this tool is running, ensure that the area is well ventilated.

  • Page 7: Hot Components

    Owner's Manual General Precautions (cont'd) Gasoline and Oil (cont'd) ,, Do not smoke, or allow sparks, flames or other sources of ignition around the engine and fuel tank. Fuel vapors are explosive. ,, Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections...

  • Page 8: Work Area

    6000W Generator General Precautions (cont'd) Work Area ,, Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. ,, Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.

  • Page 9: Personal Safety

    General Precautions (cont'd) Electrical Safety (cont'd) ,, All connections and conduits from the generator to the load must only be installed by trained licensed electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where applicable.
  • Page 10 6000W Generator General Precautions (cont'd) Personal Safety (cont'd) ,, Avoid accidental starting. Make sure the power switch is in its "OFF" position, and disconnect the spark plug wire when not in use. ,, Remove adjusting keys or wrenches before turning the generator on.

  • Page 11: Heart Pacemakers

    Dwner s M General Precautions (cont'd) Servicing Maintain labels and name plates on the generator and engine. These carry important information. If unreadable or missing, contact KingCraft® immediately for a replacement. Generator service must be performed only qualified repair personnel. Service or maintenance performed...
  • Page 12 6000W Generator General Precautions (cont'd) Installation (cont'd) ,, If the generator is installed outdoors, it must be weatherproofed and should be soundproofed. should not be run outdoors without protection to the generator and wiring conduit. ,, The generator weighs 1901bs (approx). Two or more people should assist when moving...
  • Page 13 Owner's M General Precautions (cont'd) Mechanical (cont'd) ,, Do not operate the generator with safety guards removed. While the generator is running, do not attempt to reach around the safety guard for maintenance or any other reason. ,, Keep hands, arms, long hair, loose clothing, and jewelry away from moving parts.
  • Page 14 6000W General Precautions (cont'd) Extension Cord If an extension cord (not included) is used, make sure to use only UL approved cords having the correct gauge and length according to the following table: NamepUate Amps Cord Lengths full Uoad} 0 ft,- 50 ft, 50 ft,-lO0 100 ft,-150 150 ft,-200...

  • Page 15: Battery

    Owner's M Battery This product does not need a battery.

  • Page 16: Assembly

    6000W G orator Assembly Unpacking 1. Remove the generator and loose parts box from the carton. 2. Compare the loose parts with the inventory list below. Loose Parts (Wheel kit and handle) Check al! loose parts against the following list. Contact your dealer toll free at 888.896.6881 if any of the loose parts shown are not included with your generator Hardware Check:...
  • Page 17 Assembly Handle Installation. Start by installing the handle on the frame with two 8mm bolts. Then install the handle retainer shown. Floor Mount Instalation This generator has an option of not using the mobility kit. If this is desired, just install the 4 rubber mounts on the frame as shown.
  • Page 18 6000W Generator Assembty Wheel Kit installation Hare s the hardware reqt}ired to k_s_a# gram by {nsta!Ii_9 H_e the sappo_ tag, Piace a b!ook o_ wood rubb_ floor muunts _{_der the 9enarator so lhat you den[ onto #}e suppo_ have to ham it up while trying to iestall a5 _how n¢...

  • Page 19: Operation

    Operation F0o, t0o, Control Panel Fuel Switch Pull Start NOTE: THE PARTS LISTED ABOVE ARE HELPFUL FOR LOCATING CONTROLS MENTIONED BELOW. CAUTION: PRIOR TO FIRST USING THE GENERATOR, THE ENGINE MUST FILLED WiTH OiL OF A HiGH QUALITY SAlE 10W=30 GRADE ENGINE OiL.
  • Page 20 6000W Generator Operation (cont'd) Starting 1. Turn the engine switch to the ON position. The engine switch enables and disables the ignition system. OFF: To stop the engine ON: To run the engine 2. The fuel valve is located between the fuel tank and the carburetor.

  • Page 21: Stopping Engine

    Operation (cont'd) Starting 4. Operate the Recoil Starter: Pull the starter grip lightly until you feel resistance, then pull briskly. Return the starter grip gently. Pulling the starter grip operates the recoil starter crank the engine 5. If the choke lever has been moved to the CLOSED position...

  • Page 22: Powering 120 Volt Ac Tools And Equipment

    6000W Operation (cont'd) Powering 120 Volt AC Tools And Equipment: 1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity (120VAC @ 20 AMPs) is adequate to supply all electrical loads that the unit will power.
  • Page 23 Operation (cont'd) Powering 12 Volt DC tools and Equipment: 1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity (12VDC) is adequate to supply all electrical loads that the unit will power. If powering exceeds the generator's capacity,...
  • Page 24 6000W Generator Operation (cont'd) Spark Plug Service In order to service the spark plug, you will need a spark plug wrench (commercially available). Recommended spark plugs: NHSP LD F7TC. To ensure proper engine operation, the spark plug must be properly gapped and free of deposits.

  • Page 25: Inspection, Cleaning, And Maintenance

    inspection, Cleaning, and Maintenance WARNING! ALWAYS MAKE SURE THE ENGINE POWER SWITCH iS iN iTS "OFF" POSiTiON. DISCONNECT THE SPARK PLUG WiRE FROM THE ENGINE. AND ALLOW SUFFiCiENT TiME FOR THE ENGINE AND GENERATOR COMPLETELY COOL BEFORE PERFORMING ANY iNSPECTiONS, MAINTENANCE, OR CLEANING.

  • Page 26: Installation

    6000W Generator Installation NOTE: PRIOR TO POWERING TOOLS AND EQUIPMENT MAKE SURE THE GENERATOR'S RATED VOLTAGE, WATTAGE AND AMPERAGE CAPACITY IS ADEQUATE TO SUPPLY ALL ELECTRICAL LOADS THAT THE UNiT WiLL POWER. iF POWERING EXCEEDS THE GENERATOR'S CAPACITY, iT MAY BE NECCESSARY TO GROUP ONE OR MORE OF THE TOOLS...
  • Page 27 Installation (cont'd) Supporting and Mounting Mount the generator on a concrete slab capable of supporting the weight of the generator. stab must extend on all sides beyond the frame by at least one foot. Contact a cement contractor for slab specifications if necessary.

  • Page 28: Compliance

    6000W Generator Compliance UNITED STATES ENVIRONMENTAL PROTECTION AGENCY, WASHINGTON, DC 20460 2005 Model Year Certifcate of Conformity ,, Manufacturer. Jiangsu Jiandong Group Co. Ltd. ,, Certificate Number: JDG-NRSI-05-04 • Effective Date: 12/09/2005 • Date Issued: 12/09/2005 Merrylin Zaw-Mon, Director, Compliance and Innovation Strategies Division,...

  • Page 29: Specifications

    Specifications AC electrical Current Output 120V/240V AC @ 42/21A 60Hz Continuous/rated Wattage 5,000 Peak Wattage 6,000 Outlet Two 120V outlets One 120V twistqock outlet One 120/240V AC twistqock outlet DO electrical 8.3A Gasoline engine Horsepower Type 4-cycle OHV air-cooled recoil start Displacement 389cc Oil capacity...

  • Page 30: General Parts Listing

    6000W Generator General Parts Listing This list is provided reference purposes only. All repairs and part replacement should performed by a qualified technician. Some parts may not be available as single replacements. APA Part No. Descri tion Part. APG3009=A=01=JD HEAD COVER COMP. BOLT JF340=A=01 APG3009=A=02=JD...
  • Page 31 6000W Generator General Parts Listing APA Part No. Descri tion Part. APA3009-B-01 FLANGE BOLT (M6X 14) JF340-B-01 APA3009-B-02-JD OIL LEVEL SWITCH ASSY. JF240-B-02 APA3009-B-03-J 0-RING (14mm) JF240-B-03 APA3009-B-04-JD JF340-B-02 FLANGE APA3009-B-05-JD CRANK CASE JF390-B-03 APA3009-B-06-JD JF340-B-04 BALL BEARING (6207) APA3009-B-07-JD JF340-B-05 WASHER( 4 8.3 x 1 17xl)
  • Page 32 6000W Generator General Parts Listing APA Part No. Descri tion Part. APA3009=C=01 DUCT COVER JD5000=A=01 APA3009=C=02=JD FLANGE BOLT (M8 X 35) JD5000=A=02 APA3009=C=03=JD OIL SCALE JF340=C=03B APA3009=C=04=JD OIL SCALE SEAL RING JF340=C=02 APA3009=C=05=JD OIL SEAL(35X 452X8) JF340=B=l APA3009=C=06=JD FLANGE BOLT (M8X35) JF390=C=01 APA3009=C=07=JD CRANKCASE...
  • Page 33 6000W Generator General Parts Listing APA Part No. Descri tion Part. APG3009=D=OI=JD CRANKSHAFT COMP. JF340=D=02 APG3009=D=02=JD BALANCER WEIGHT JF340=D=04...
  • Page 34 6000W G General Parts Listing APA Part No. Descri tion Part. APG3009-E-01-JD COMPRESSION RING A JF390-E-01 APG3009-E-02-JD COMPRESSION RING B JF390-E-02 APG3009-E-03-JD OIL RING A JF390-E-03 APG3009-E-04-JD OIL RING B JF390-E-04 APG3009-E-05-JD PISTON PIN CLIP (20 mm) JF240-E-05 APG3009- E-06-J D P ISTO N J F390- E-05 APG3009-E-07-JD...

  • Page 35: Parts Listing

    6000W General Parts Listing APA Part No. Descri tion Part. APG3009-F-01-JD PIVOT ADJUSTING JF340-F-01 APG3009-F-02-JD ROCKER ARM PIVOT JF340-F-02 APG3009-F-03-JD ROCKER JF340-F-03 APG3009-F-04-JD JF340-F-04 PIVOT BOLT APG3009-F-05-JD PUSH ROD GUIDE PLATE JF340-F-05 APG3009-F-06-JD ROD PUSH JF240-F-06 APG3009-F-07-JD VALVE LIFTER JF240-F-07 APG3009-F-08-JD CAMSHAFT JF390-F-08...

  • Page 36: General Parts

    6000W Generator General Parts Listing APA Part No. Descri tion Part. APG3009-G-01-JD RECOIL STARTER ASSY. JF340-G-01 APG3009-G-02-JD SETTING SCREW JF340-G-02 APG3009-G-03-JD SPRING RETAINER JF340-G-03 APG3009-G-04-JD PLATEN SPRING JF340-G-04 APG3009-G-05-JD STARTER DETENT JF340-G-05 APG3009-G-06-JD DETENT SPRING JF340-G-06 APG3009-G-07-JD RECOIL STARTER REEL JF340-G-07 APG3009-G-08-JD START RETURN...
  • Page 37 6000W Generator General Parts Listing APA Part No. Descri tion Part. APG3009-H-01 -J D SH ROU D J F340- H-01 APG3009-H-02-JD FLANGE BOLT (M6 X 14) JF340-H-02 APG3009-H-03-JD FAN COVER COMP. JF340-H-03 APG3009-H-04-JD WIRE HARNESS CLIP JF340-H-04...
  • Page 38 6000W Generator General Parts Listing APA Part No. Descri tion Part. APG3009-1-01-JD TUBE CLIP JD3800-B-01 APG3009-1-02-JD TUBE A JD3800-B-02 APG3009-1-03-JD TUBE B JD3800-B-03 APG3009-1-04-JD WIPE HARNESS CLIP JD3800-B-04 APG3009-1-05-JD DASHPOT CHECK VALVE JD3800-B-05 APG3009-1-06-JD MANUAL CHOKE STAY ASSY. JD3800-B-06 APG3009-1-07-JD CARBURETOR IRON GASKET JF340-1-05...
  • Page 39 6000W General Parts Listing APA Part No. Descri tion Part. APG3QO9-J-01 FLYWHEEL JF340-J-01A APG3QO9-J-02-JD FLYWHEEL JF340-J-01B APG3QO9-J-03-JD SPECIAL WOODRUFF JF340-J-02 APG3QO9-J-04-JD COOLING JF340-J-03 APG3QO9-J-05-JD STARTER PULLEY JF340-J-04 APG3QO9-J-06-JD FLYWHEEL NUT (M16) JF340-J-05...
  • Page 40 6000W Generator General Parts Listing APA Part No. Descri tion Part. APG3009-K-01-JD NOISE SUPPERSSOR CAP ASSY. JF340-K-01 APG3009-K-02-JD INGITION GOIL ASSY. JF340-K-02 APG3009-K-03-JD STOP SWITCH CORD JF340-K-03 APG3009-K-04-JD STOP SWITCH CORD HOLDER JF340-K-04 APG3009-K-05-JD JF340-K-05 FLANGE BOLT (M6 X 25) APG3009-K-06-JD CORD GROMMENT JF340-K-06...
  • Page 41 6000W General Parts Listing APA Part No. Descri tion Part. APG3009-M-01 CONTROL ASSY. JF340-M-01 APG3009-M-02-JD CONTROL BASE COMP. JF340-M-02B APG3009-M-03-JD CONTROL ADJUSTING SPRING JF340-M-03 APG3009-M-04-JD JF340-M-04 PAN SCREW (M5 X 34) APG3009-M-05-JD JF340-M-05 FLANGE BOLT (M6 X 14) APG3009-M-06-JD GOVERNOR SPRING JF340-M-06 APG3009-M-07-JD...
  • Page 42 6000W Generator General Parts Listing ° APA Part No. Descri tion Part. APG3009-N-01-JD FLANGE BOLT (M8 X 16) JD3800-B-01 APG3009-N-02-JD FLANGE BOLT (M6 X 12) JD3800-B-02 APG3009-N-03-JD MUFFLER STAY COMP. JD3800-B-03 APG3009-N-04-JD MUFFLER PROTECTOR SEAL JD3800-B-04 APG3009-N-05-JD MUFFLER SIDE PROTECTOR JD3800-B-05 APG3009-N-06-JD MUFF.
  • Page 43 6OOOW G General Parts Listing APA Part No. Descri tion Part. APG3009-O-01-JD AIR CLEANER COVER COMP JD3800-C-01 APG3009-O-02-JD AIR CLEANER ELEMENT JD3800-C-02 APG3009-O-03-JD FLANGE NUT (M5) JD3800-C-03 APG3009-O-04-JD AIR CLEANER SEPARATOR JD3800-C-04 APG3009-O-05-JD AIR CLEANER SEAL JD3800-C-05 APG3009-O-06-JD AIR CLEANER CASE COMP JD3800-C-06 APG3009-O-07-JD...
  • Page 44 60BOW General Parts Listing APA Part No. Descri tion Part. APG3009-P-01-JD FUEL FILLER CAP COMP JD3800-D-01 APG3009-P-02-JD FUEL FILTER JD3800-D-02 APG3009-P-03-JD FUEL TANK COMP. JD3800-D-03 APG3009-P-04-JD FUEL METER ASSY. JD3800-D-04 APG3009-P-05-JD FLAT SCREW JD3800-D-05 APG3009-P-06-JD FLANGE BOLT JD3800-D-06 APG3009-P-07-JD AIR DUCT WASHER JD3800-D-07 APG3009-P-08-JD TANK CUSHION...
  • Page 45 6000W G General Parts Listing !; 0 APA Part No. Descri tion Part. APG3009-Q-01-JD CONTROL PANEL COMP. JD6500BST-E-01 APG3009-Q-02-JD ENGINE SWITCH ASSY. JD6500BST-E-02 APG3009-Q-03-JD DC 12V OUTPUT JD6500BST-E-03 APG3009-Q-04-JD VOLTM ETER ASSY. JD6500BST-E-04 JD6500BST-E-05 APG3009-Q-05-JD 120V RECEPTACLE(Ru-22) APG3009-Q-06-JD CIRCUIT BREAKER JD6500BST-E-06 APG3009-Q-07-JD JD6500BST-E-07...
  • Page 46 6000W Generator General Parts Listing APA Part No. Descri tion Part. APG3009-R-01-JD FUEL TANK MOUNTING RUBBER JD3800-F-01 APG3009-R-02-JD FRAME COMP. JD6500-C-01 APG3009-R-03-JD FLANGE BOLT (M6X 12) J03800-F-03 APG3009-R-04-JD JD3800-F-04 FLANGE NUT M(.M_ APG3009-R-05-JD JD3800-F-05 BOTTOM RUBBER (LEFT) APG3009-R-06-JD JD3800-F-06 BOTTOM RUBBER (RIGHT) APG3009-R-07-JD...
  • Page 47 6000W G General Parts Listing APA Part No. Descri tion Part. APG3009-S-01-JD STATOR COVER JD6500-D-01 APG3009-S-02-JD STATORASSY. JD6500-D-02 APG3009-S-03-JD COOLING JD6500-G-03 APG3009-S-04-JD JD3800-G-04 BRUSH ASSY. APG3009-S-05-JD JD3800-G-05 TAPPING SCREW APG3009-S-06-JD JD3800-G-06 RR HOUSING APG3009-S-07-JD JD3800-G-07 SCREW APG3009-S-08-JD JD6500-G-08 (M6X 179) FLANGE BOLT APG3009-S-09-JD...
  • Page 48 6000W General Parts Listing APA Part No. Descri tion Part. APG3009-S-18-JD HE×,BOLT (M5 × 20) JD3800-G-18 APG3009-S-19-JD VOLT CHANGE TERMINAL BR-AC-W JD3800-G-19 APG3009-S-20-JD PLAIN WASHER (5mm) JD3800-G-20 APG3009-S-21-JD HEX. NUT (M5) JD3800-G-21 APG3009-S-22-JD SPRING WASHER (5mm) JD3800-G-22 APG3009-S-23-JD CRANK CASE GROMMET JD3800-G-23...
