2. Operation
of main parts
Tension regulator
plate 1
moves in the direction
of
arrow.
Loading motor (M903) rotates.
]
[ Worm shaft and gear A rotates.
[
[
Rotary encoder
rotates.
[
[
Cam gear rotates.
[
M slider slides in the direction
of [
arrow.
Pinch press plate moves in the
]
direction of arrow.
f
I
L arm moves in the
[
direction of arrow.
direction
of arrow.
Worm
Loading
motor
Gear
Rotary encoder
Tension
regulator
plate 1
GL slider
Pinch press plate
GL arm
Cam gear
LS arm

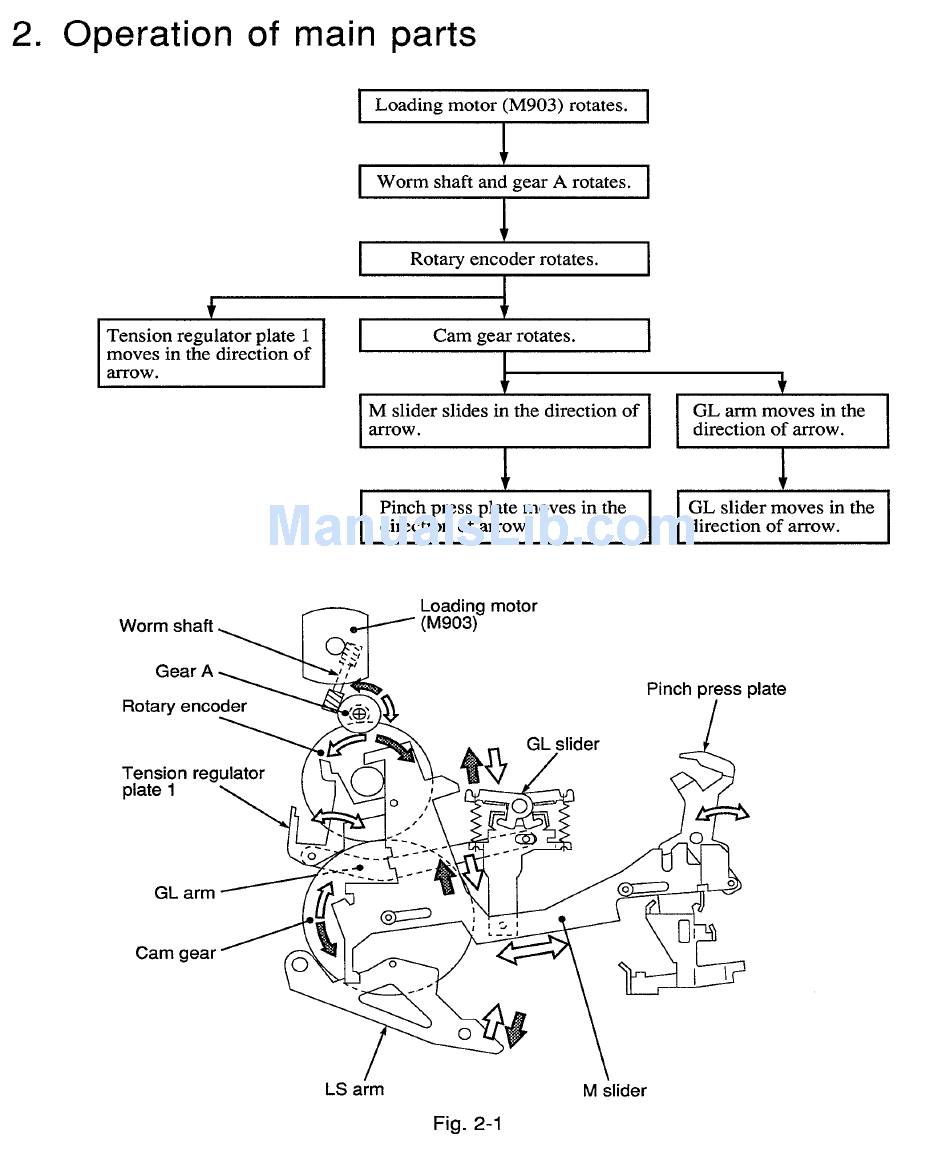

Fig. 2-1
M slider
