Snapper ZM5202M Safety Instructions & Operator's Manual
Mid mount z-rider zero turning hydro drive series 1
Hide thumbs
Also See for ZM5202M:
- Safety instructions & operator's manual (36 pages) ,
- Parts manual (56 pages)
Table of Contents
Advertisement
Quick Links
Safety Instructions
& Operator's
Manual for
MID MOUNT Z-RIDER
ZERO TURNING
HYDRO DRIVE
SERIES 1
POWER
UNIT MODEL S
MZM2301KH
MOWER
UNIT MODEL S
ZM5202M
ZM6102M
MZM5203M
MODEL
NUMBER
EXPLANATION
IMIZI_
MOOE'OES,GNAT,ON_
I
DRIVE SYSTEM TYPE
MOWER ORIENTATION
M - Middle Market
Z - Zero Turning - Hydro Drive
M - Mid Mount Mower
_12
POWER
UNIT
23 - Engine Horse Power
310
I lKHI
I
01 - Series Designation
ENGINE TYPE
SERIES DESIGNATION
ENGINE HP
KH - Kohler
Engine
Z - Zero Turninq - Hydro Drive
M - Mid Mount Mower
MOWER
UNIT
52- Mower Cutting Width
61 - Mower Cutting Width
I 02 - Series Designation
I M - Mower Deck
03 -- Series Designation
I

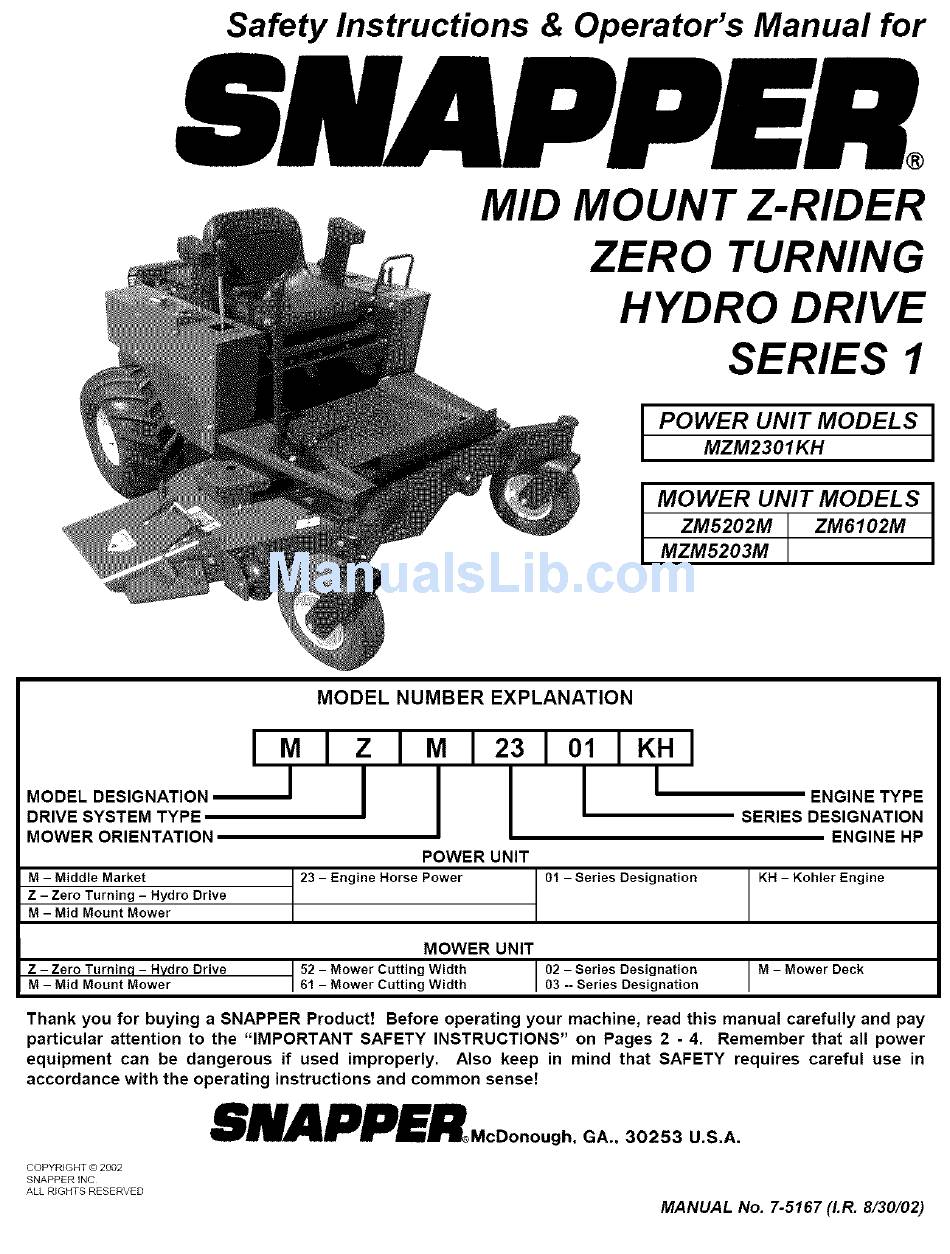

Thank you for buying a SNAPPER Product!
Before operating your machine, read this manual carefully and pay
particular attention to the "IMPORTANT
SAFETY INSTRUCTIONS"
on Pages 2 - 4.
Remember that all power
equipment
can be dangerous
if used improperly.
Also keep in mind that SAFETY requires careful use in
accordance with the operating instructions and common sense!
SNAPPER
McDonough,
GA,, 30253
U.S.A.
COPYRIGHT
© 2002
SNAPPER
INC
ALL RIGHTS
RESERVED
MANUAL No. 7-5167 (I.R. 8/30/02)
