DRIVE SYSTEM TYPE
MOWER ORIENTATION
ENGINE HP
Z – Zero Turning – Hydro Drive
F – Out Front Mower
Z – Zero Turning – Hydro Drive
F – Out Front Mower
Thank you for buying a SNAPPER Product! Before operating your machine, read this manual carefully and pay particular
attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 - 4. Remember that all power equipment can be
dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance with the operating
instructions and common sense!
COPYRIGHT © 2001
SNAPPER INC.
ALL RIGHTS RESERVED
Safety Instructions & Operator's Manual for
MODEL NUMBER EXPLANATION
Z
F
21 – Engine Horse Power
23 - Engine Horse Power
52 – Mower Cutting Width
61 – Mower Cutting Width

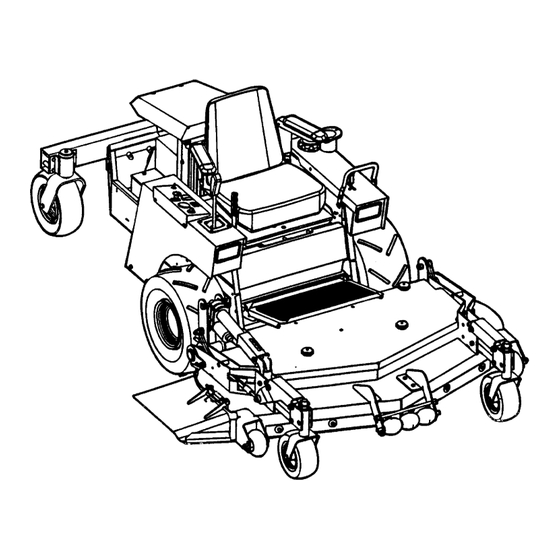

OUT FRONT Z-RIDER
21
01
D
POWER UNIT
01 – Series Designation
MOWER UNIT
01 – Series Designation
INSTRUCTION No. 7-3700 (REV 1, 8/29/01)
HYDRO DRIVE
SERIES 1
POWER UNIT MODELS
ZF2101DKU
ZF2301GKU
MOWER UNIT MODELS
ZF5201M
KU
SERIES DESIGNATION
D – Diesel Fuel Engine
G – Gasoline Fuel Engine
M – Mower Deck
ZF6101M
ENGINE MODEL
ENGINE TYPE
KU – Kubota Engine
