Bimplicitq
AGC,
O

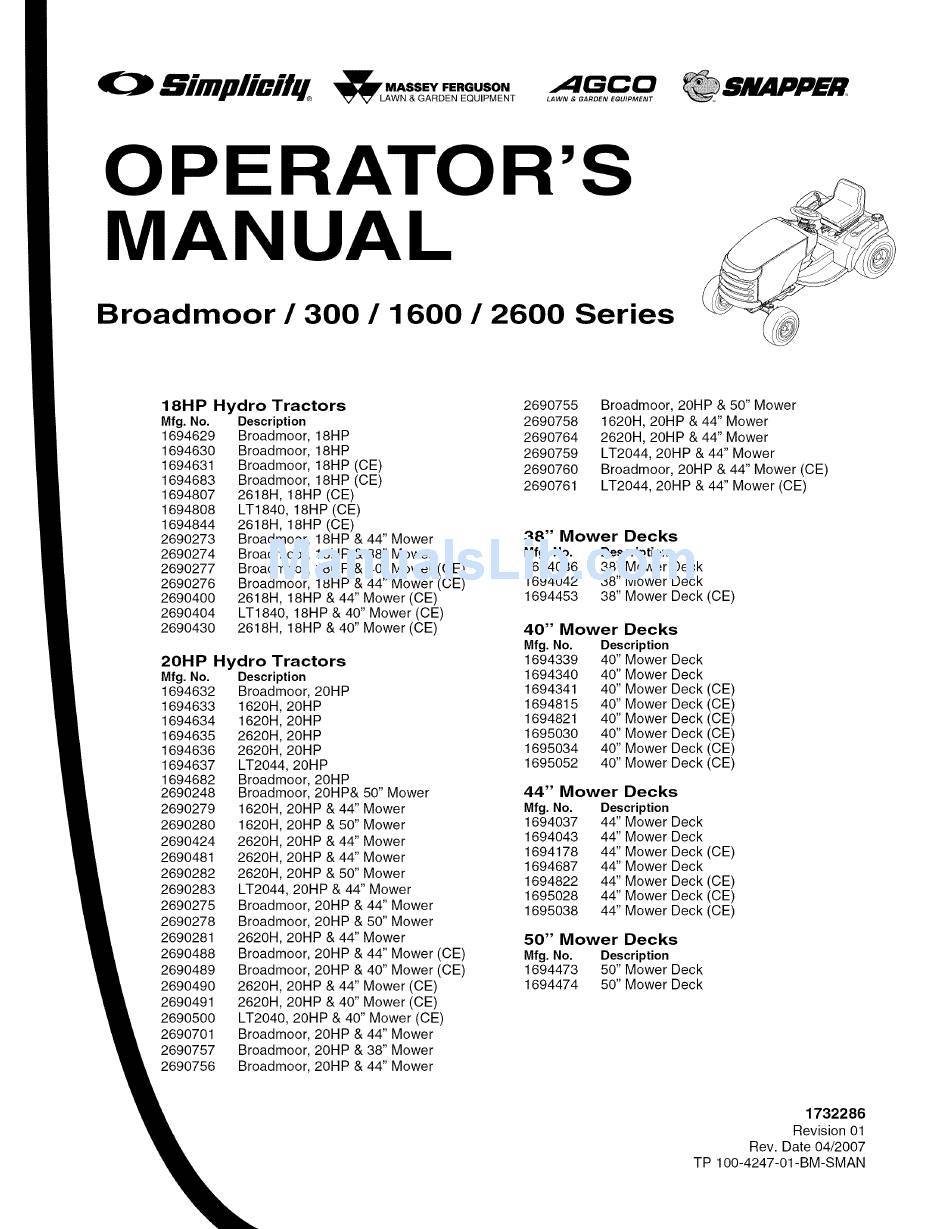

OPERATOR'S
MANUAL
Broadmoor
/ 300 / 1 600 / 2600
Series
18HP
Hydro
Tractors
Mfg. No.
1694629
1694630
1694631
1694683
1694807
1694808
1694844
2690273
2690274
2690277
2690276
2690400
2690404
2690430
Description
Broadmoor, 18HP
Broadmoor, 18HP
Broadmoor, 18HP (CE)
Broadmoor, 18HP (CE)
2618H, 18HP (CE)
LT1840, 18HP (CE)
2618H, 18HP (CE)
Broadmoor, 18HP & 44" Mower
Broadmoor, 18HP & 38" Mower
Broadmoor, 18HP & 40" Mower (CE)
Broadmoor, 18HP & 44" Mower (CE)
2618H, 18HP & 44" Mower (CE)
LT1840, 18HP & 40" Mower (CE)
2618H, 18HP & 40" Mower (CE)
20HP
Hydro
Tractors
Mfg. No.
1694632
1694633
1694634
1694635
1694636
1694637
1694682
2690248
2690279
2690280
2690424
2690481
2690282
2690283
2690275
2690278
2690281
2690488
2690489
2690490
2690491
2690500
2690701
2690757
2690756
Description
Broadmoor, 20HP
1620H, 20H P
1620H, 20H P
2620H, 20HP
2620H, 20HP
LT2044, 20HP
Broadmoor, 20HP
Broadmoor, 20HP& 50" Mower
1620H, 20HP & 44" Mower
1620H, 20HP & 50" Mower
2620H, 20HP & 44" Mower
2620H, 20HP & 44" Mower
2620H, 20HP & 50" Mower
LT2044, 20HP & 44" Mower
Broadmoor, 20HP & 44" Mower
Broadmoor, 20HP & 50" Mower
2620H, 20HP & 44" Mower
Broadmoor, 20HP & 44" Mower (CE)
Broadmoor, 20HP & 40" Mower (CE)
2620H, 20HP & 44" Mower (CE)
2620H, 20HP & 40" Mower (CE)
LT2040, 20HP & 40" Mower (CE)
Broadmoor, 20HP & 44" Mower
Broadmoor, 20HP & 38" Mower
Broadmoor, 20HP & 44" Mower
2690755
2690758
2690764
2690759
2690760
2690761
Broadmoor, 20HP & 50" Mower
1620H, 20HP & 44" Mower
2620H, 20HP & 44" Mower
LT2044, 20HP & 44" Mower
Broadmoor, 20HP & 44" Mower (CE)
LT2044, 20HP & 44" Mower (CE)
38"
Mower
Decks
Mfg. No.
Description
1694036
38" Mower Deck
1694042
38" Mower Deck
1694453
38" Mower Deck (CE)
40" Mower
Decks
Mfg. No.
Description
1694339
40" Mower Deck
1694340
40" Mower Deck
1694341
40" Mower Deck (CE)
1694815
40" Mower Deck (CE)
1694821
40" Mower Deck (CE)
1695030
40" Mower Deck (CE)
1695034
40" Mower Deck (CE)
1695052
40" Mower Deck (CE)
44"
Mower
Decks
Mfg. No.
Description
1694037
44" Mower Deck
1694043
44" Mower Deck
1694178
44" Mower Deck (CE)
1694687
44" Mower Deck
1694822
44" Mower Deck (CE)
1695028
44" Mower Deck (CE)
1695038
44" Mower Deck (CE)
50"
Mower
Decks
Mfg. No.
Description
1694473
50" Mower Deck
1694474
50" Mower Deck
1732286
Revision 01
Rev. Date 04/2007
TP 100-4247-01 -BM-SMAN
