Snapper 216518B Parts Manual

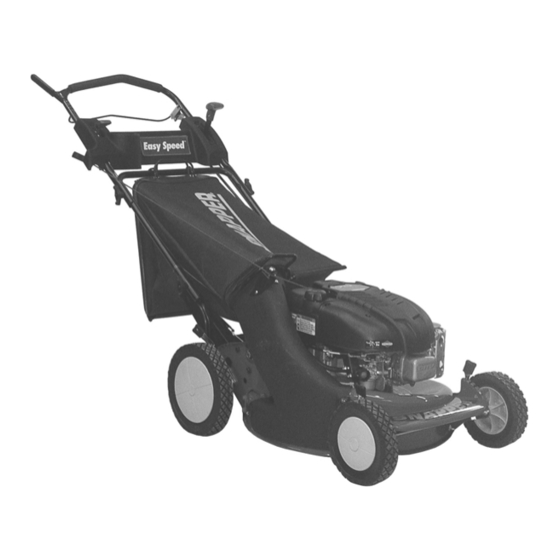

21" steel deck walk behind mowers eries 18
Hide thumbs Also See for SNAPPER 216518B:
Table of Contents

Advertisement

Quick Links

COPYRIGHT © 2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
WALK BEHIND MOWERS
PUSH MODELS
McDonough, GA, 30253 U.S.A.
Revision 1,
9/9/2005
Parts Manual for
21" STEEL DECK
SERIES 18
PROPELLED
216518B
ERP217018BV
RP216018KWV
RP217018BVE
Manual No.
TP 400-5047-1-WB-N
MODELS
EP217018BV
P216018KWV
P216518B
P217018BV
P217018BVE
RP217018BV
7006139

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNAPPER 216518B and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper SNAPPER 216518B

Summary of Contents for Snapper SNAPPER 216518B

  • Page 1 COPYRIGHT © 2005 SNAPPER PRODUCTS, INC. ALL RIGHTS RESERVED. Parts Manual for 21" STEEL DECK WALK BEHIND MOWERS PUSH MODELS 216518B McDonough, GA, 30253 U.S.A. Revision 1, 9/9/2005 SERIES 18 PROPELLED MODELS EP217018BV ERP217018BV P216018KWV P216518B P217018BV P217018BVE RP216018KWV RP217018BV RP217018BVE Manual No.

  • Page 3: Table Of Contents

    PAGE GROUP HANDLES & CONTROLS CUTTING DECK, BLADES FRONT WHEEL BRACKET REAR WHEEL BRACKETS, LATCHES FRONT WHEELS REAR WHEELS DRIVE SYSTEM SELF-PROPELLED TRANSMISSION (DIFFERENTIAL) THROTTLE CONTROLS/ENGINE SPECS SIDE CHUTE ADAPTER ACCESSORY GRASS BAG ELECTRIC START COMPONENTS DECALS SNAPPERIZER ACCESSORY THATCHERIZER ASSEMBLY RECYCLING KITS ACCESSORY 21"...

  • Page 4: Handles & Controls

    HANDLES & CONTROLS Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 5 HANDLES & CONTROLS Item Part No Description 7074411 HANDLE, Upper 7074156 HANDLE, Middle 7033985 HANDLE, Lower LH (Adjustable) 7033986 HANDLE, Lower RH (Adjustable) 7074418 BAIL, OPC Control 7034872 CLIP, Zone Control 7034608 *CABLE, Zone Control (52-63/64” Long) 7078078 CABLE, Zone Control (50-31/64” Long) 7074141 CABLE, Zone Control (56-5/16”...
  • Page 6 HANDLES & CONTROLS Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 7 HANDLES & CONTROLS Item Part No Description 7091576 NUT, 1/4-20 Hex 7090505 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5 7014343 BUSHING, .27 x .35 x .4 Flange 7023792 PIN, 1/4 x 1-1/2” 7091020 PUSH-NUT, 1/4” 7015753 BALL JOINT, 1/4-28 7090095 NUT, 1/4-28 Hex 7022458...

  • Page 8: Cutting Deck, Blades

    CUTTING DECK, BLADES Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 9 CUTTING DECK, BLADES Item Part No Description 7057663 DECK, Mower (incl. painted “HV” Deck with Decals) 7072716 DECK, Mower, 21” Hi-Vac (HV) 7074949 DECK, Mower (Includes painted “Euro M” Deck with No Decals) 7057884 * DECK, Mower, 21” Non-Adj Air (was 7041857 or 7057784) 7091601 NUT, 5/16-18 Hex Flange Lock, GR 5 7090731...
  • Page 10 CUTTING DECK, BLADES Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 11 CUTTING DECK, BLADES Item Part No Description 7073462 DECAL, Caution, International Symbols 7090951 NUT, 5/16-18 Hex Large Flange Center Lock *ENGINE, 6.0 Kawasaki, Model FJ180V-AS13-R *ENGINE, 6.5 Briggs Intek, Model 123K02-0124E1 *ENGINE, 7.0 Briggs Intek E/S, Model 128607-0113E1 *ENGINE, 7.0 Briggs Intek, Model 128602-0112E1 *ENGINE, 7.0 Briggs Intek, Model 128602-0149E1 Footnotes: Note* Same deck as 7074949 except w/o battery bracket holes.

  • Page 12: Front Wheel Bracket

    FRONT WHEEL BRACKET Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...

  • Page 13: Front Wheel Bracket

    FRONT WHEEL BRACKET Item Part No Description 7051885 ASSEMBLY, Left Wheel Arm 7051886 ASSEMBLY, Right Wheel Arm 7015761 BOLT, 5/16-18 Hex washer Face Shoulder 7012325 LATCH, Height 7027702 GRIP, Height Latch 7031017 WHEEL ARM, R.H. Front (Round Hole) 7031016 WHEEL ARM, L.H. Front (Square Hole) 7011791 RETAINER, 5/16”...

  • Page 14: Rear Wheel Brackets, Latches

    REAR WHEEL BRACKETS, LATCHES Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 15 REAR WHEEL BRACKETS, LATCHES Item Part No Description 7012312 BEARING, 9/16” I.D. 7091012 SCREW, #10-32 x 3/8” Hex washer Self-Tap 7035717 LATCH, Height Adjusting (long) 7091576 NUT, 1/4-20 Hex 7091601 NUT, 5/16-18 Hex Flange Lock, GR 5 7054228 ASSY, Wheel Arm, Right Rear (Round hole) (Push) 7054229 ASSY, Wheel Arm, Left Rear (Square hole) (Push) 7054230...

  • Page 16: Front Wheels

    FRONT WHEELS Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...

  • Page 17: Front Wheels

    FRONT WHEELS Item Part No Description 7029010 WHEEL, 8 x 1.75 Plastic 7090377 NUT, 7/16-20 Hex Center Lock Jam 7012309 BUSHING, Axle 7031961 WASHER, 7/16” Flat 7017829 PLUG, Wheel Footnotes: 21" STEEL DECK SERIES 18 Note Manual No. 7006139 TP 400-5047-1-WB-N...

  • Page 18: Rear Wheels

    REAR WHEELS Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...

  • Page 19: Rear Wheels

    REAR WHEELS Item Part No Description 7074924 WHEEL, 10 x 1.75” Plastic 7029011 WHEEL, 10 x 1.75” Plastic 7090377 NUT, 7/16-20 Hex Center Lock Jam 7012309 BUSHING, Axle 7031961 WASHER, 7/16” Flat 7017829 PLUG, Wheel Footnotes: 21" STEEL DECK SERIES 18 Note Push Models only used on Self-Propelled models...

  • Page 20: Drive System Self-Propelled

    DRIVE SYSTEM SELF-PROPELLED Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 21 DRIVE SYSTEM SELF-PROPELLED Item Part No Description 7012354 BELT, Poly-V 7034179 LINK, Differential 7051921 ASSEMBLY, Clutch Idler (Includes items 3 thru 7) 7032832 ARM, Clutch Idler 7012124 PULLEY, Idler 7091025 SCREW, 1/4-28 x 1-3/8” Hex Head Cap, GR 5 7090303 NUT, 1/4-28 Hex Top Lock 7012117 BUSHING, 3/8”...
  • Page 22 DRIVE SYSTEM SELF-PROPELLED Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 23 DRIVE SYSTEM SELF-PROPELLED Item Part No Description 7091597 COTTER PIN, 3/32 x 1/2” 7017696 BUSHING, Powdered Metal 7041855 DISC, Driven (Cantilever) 7011724 WASHER, 44 x .78 x .025 Curved 7013847 RETAINER, 3/8” Bolt 7029025 SPRING, Wheel Drive 7090799 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR 5 7059462 ASSEMBLY, Deck Bracket (Incl.

  • Page 24: Transmission (Differential

    TRANSMISSION (DIFFERENTIAL) Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 25 TRANSMISSION (DIFFERENTIAL) Item Part No Description 7059070 ASSEMBLY, Transmission (Incl. items 1 thru 30) 7092062 NUT, 5/16-18 Hex Lock 7092063 WASHER, Cone 7019213 PULLEY, Poly-V Belt (3.5 O.D.) 7011724 WASHER, 44 x .78 x .025 Curved 7053941 ASSEMBLY, Right Housing (Incl. items 6, 7, 8, 9, 10 & 30) 7029034 HOUSING, Right Side 7014155...

  • Page 26: Throttle Controls/Engine Specs

    THROTTLE CONTROLS/ENGINE SPECS Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 27 THROTTLE CONTROLS/ENGINE SPECS Item Part No Description 7074460 THROTTLE CONTROL, .48 x .61 7074138 THROTTLE CONTROL, 6.0 KWV Footnotes: conduit length: 48-1/2” conduit length: 53-1/4” 21" STEEL DECK SERIES 18 Note Briggs models Kawasaki models Manual No. 7006139 TP 400-5047-1-WB-N...

  • Page 28: Side Chute Adapter

    SIDE CHUTE ADAPTER Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...

  • Page 29: Side Chute Adapter

    SIDE CHUTE ADAPTER Item Part No Description 7051951 ASSY, Bag Adapter & Cover (Euro only) 7016107 ADAPTER, Grass Bag 7019287 COVER, Bag Adapter 7023000 HINGE, Chute Cover 7091064 BOLT, 1/4-20 x 1/2” Short Neck Carriage, GR 5 7090053 WASHER, 1/4” Internal Tooth Lock 7091576 NUT, 1/4-20 Hex 7032661...

  • Page 30: Accessory Grass Bag

    ACCESSORY GRASS BAG Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...

  • Page 31: Accessory Grass Bag

    ACCESSORY GRASS BAG Item Part No Description 7061919 KIT, Grass Bag Catcher 7059322 ASSEMBLY, Grass Bag 7075765 GRASS BAG (Door w/Gray Letters) 7051906 ASSEMBLY, Bag Wire (12” Wide) 7042489 CONNECTOR, Grass Bag (weldment) 7016050 ADAPTER, Grass Bag 7058037 ASSEMBLY, Grass Bag Adapter 7047081 ADAPTER, Grass Bag 7047082...

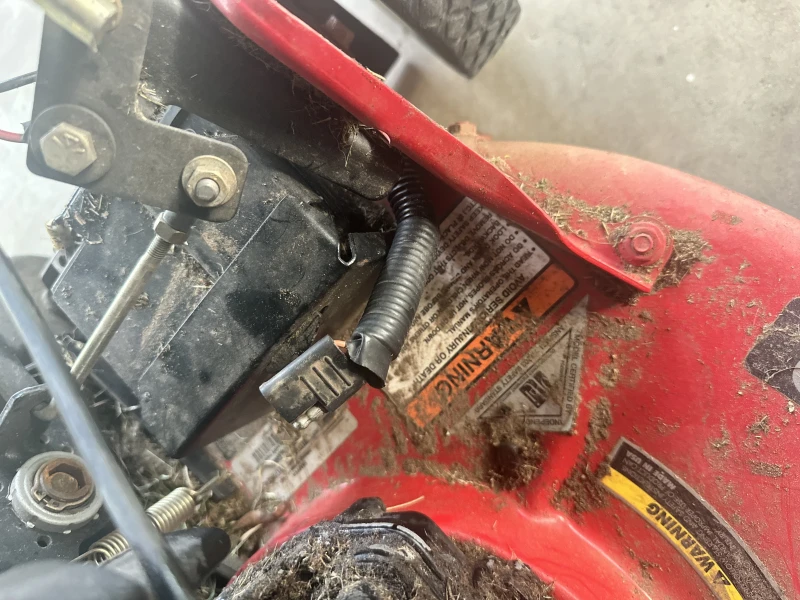

  • Page 32: Electric Start Components

    ELECTRIC START COMPONENTS Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...

  • Page 33: Electric Start Components

    ELECTRIC START COMPONENTS Item Part No Description 7067012 *KIT, Battery 12V 7067012 BATTERY, 12 Volt, 35 CCA 7015488 HARNESS, Battery 7043977 SCREW, #10-24 x 1/2” Pan Head Machine 7090932 NUT, #10-24 Square **SWITCH ASSEMBLY (Incl. items 6 thru 11) 7011138 KEY (Set of Two) 7023506 BEZEL (Seal &...

  • Page 34: Decals

    DECALS Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...
  • Page 35 7075688 DECAL, Ignition Switch 7013010 DECAL, Danger, Cut Finger 7075750 DECAL, Hi Vac 7075619 DECAL, Ninja 7075618 DECAL, Snapper 7072921 DECAL, Warning (Deck) 7029490 DECAL, 2004 Year of Mfg. 7029776 DECAL,Euro Community (CE) 7029779 DECAL, Spart Plug International Symbol 7073462...

  • Page 36: Snapperizer Accessory

    SNAPPERIZER ACCESSORY Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...

  • Page 37: Snapperizer Accessory

    SNAPPERIZER ACCESSORY Item Part No Description 7060440 KIT, Snapperizer (Incl. items 1 & 2 thru 5) 7063041 KIT, Snapperizer (Incl. items 1& 2A thru 5) 7051243 SCREEN, Fastener Assembly 7039579 RING, Bottom (21.77” Inside Diameter) 7072002 RING, Bottom (22.60” Inside Diameter) 7091297 NUT, 5/16-24 Hex, GR 5 7090187...

  • Page 38: Thatcherizer Assembly

    THATCHERIZER ASSEMBLY Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...

  • Page 39: Thatcherizer Assembly

    THATCHERIZER ASSEMBLY Item Part No Description 7061256 KIT, Thatcherizer (Incl. items 1 thru 27) 7032891 LATCH, Frame Attachment 7026572 BAR, Mount (Right Hand) 7026573 BAR, Mount (Left Hand) 7018499 ROD, Tine 7018700 SUPPORT, Wheel 7019948 TRAY, Tine 7018496 KIT, Tine Thatching Spring 7014100 BUSHING, Wheel Adjuster 7018493...

  • Page 40: Recycling Kits Accessory

    RECYCLING KITS ACCESSORY Manual No. 7006139 21" STEEL DECK TP 400-5047-1-WB-N SERIES 18...

  • Page 41: Recycling Kits Accessory

    RECYCLING KITS ACCESSORY Item Part No Description 7061200 KIT, Recycling Cover (Includes the 2 items below) 7061201 KIT, Recycling Plug (Incl. items 1 & 2 below) 7029149 COVER, 21” Deck 7016814 PLUG, Chute Adapter 7026407 BLADE, 21” Quad Edge Ninja Footnotes: 21"...
  • Page 44 21" STEEL DECK WALK BEHIND MOWERS SERIES 18 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
