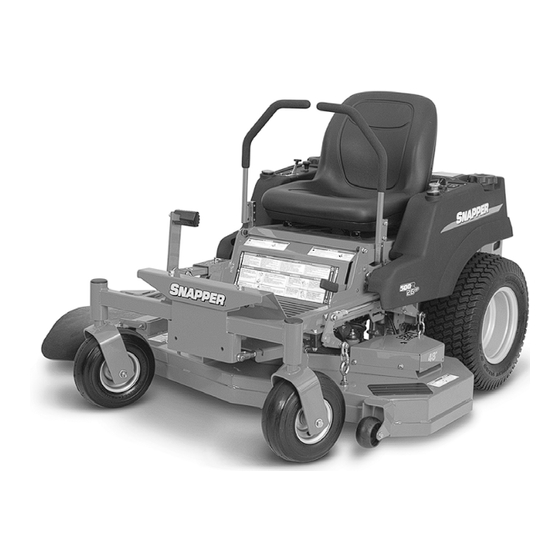

Snapper 5900731 Parts Manual

26 & 27 hp hydro drive 500z mid-mount ztr
Hide thumbs Also See for SNAPPER 5900731:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
26 & 27 HP HYDRO DRIVE
Parts Manual for
MID-MOUNT ZTR
Model No.
5900731
5900982
Manual No.
Revision: K
500Z
Description
500ZB2648
500ZB2748
5101455
3/11/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNAPPER 5900731 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper SNAPPER 5900731

Summary of Contents for Snapper SNAPPER 5900731

  • Page 1 Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 Parts Manual for 26 & 27 HP HYDRO DRIVE MID-MOUNT ZTR 500Z Model No. Description 5900731 500ZB2648 5900982 500ZB2748 Manual No. 5101455 Revision: K 3/11/2011...

  • Page 3: Table Of Contents

    PAGE GROUP Wheel & Tire Group Main Frame & Front Casters Group Seat Mount & Floor Group Fuel Tank & Mount Group Evap Canister Group Engine & PTO Group Motion Control Group Parking Brake Group Pump Drive Group Hydraulic Group Rear Bumper Group Decals - Brand &...

  • Page 4: Wheel & Tire Group

    Wheel & Tire Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 5 Item Part No Description 5101418 WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO 2172353 VALVE STEM & CAP ASSEMBLY (SV) 5101418X1 BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV) (Two per wheel)(Service Part for # 5101418) 5021043 BEARING, RETAINER (SV) (Two per wheel) 5045996 CASTER AXLE DDSH...

  • Page 6: Main Frame & Front Casters Group

    Main Frame & Front Casters Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 7 Item Part No Description 5025457 BOLT, 1/4-28 X 1/2, GD5 YZ 5402539D WELD, CASTER YOKE, IS500Z 5020884 BEARING, TAPERED ROLLER, 1" 5021072 SEAL, GREASE 5025449 WASHER, BELLEVILLE - 1.500 X .755 5025448 NUT, 3/4-16, HEX JAM NYLON LOCK 5100882 CAP, CASTER SPINDLE, LOW PROFILE 5402841D WELD, MAINFRAME, SNAPPER PRO 38-44 - RED 5100716...

  • Page 8: Seat Mount & Floor Group

    Seat Mount & Floor Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 9 Item Part No Description 5025155 WASHER, 5/16 SAE 5025011X8 BOLT, 5/16-18 X 1 GD5 YZ 5025392 10 NUT, 5/16-18 HEX NYLOCK FLANGE 5025127 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL) 5025011X10 BOLT, 5/16-18 X 1-1/4 GD5 YZ 5021878 SPACER, .25 X .37 X .25 5025144X6 BOLT, 1/4-20 X 3/4", CARRIAGE 5025391...

  • Page 10: Fuel Tank & Mount Group

    Fuel Tank & Mount Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 11 Item Part No Description 5101272 FUEL CAP, 3.5", VENTED (S/N: 2014923025 & BELOW) 5103005 FUEL CAP, 3-1/2", MANAGED VENT OUT, 12" (S/N: 2014923026 & ABOVE) 5101368 TANK, FUEL, RH, SNAPPER (S/N: 2014923025 & BELOW) 5102979 TANK, FUEL, SNAP & SNP PRO - RH (S/N: 2014923026 & ABOVE) 5101367 TANK, FUEL, LH, SNAPPER (S/N: 2014923025 &...

  • Page 12: Evap Canister Group

    Evap Canister Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...

  • Page 13: Evap Canister Group

    Item Part No Description 313036 CNSTR, CARB, 6 GAL (Single Tank Models) 313037 CNSTR, CARB, 9 GAL (Double Tank Models) 5408222A BRACKET, CARB CANISTER, S50X - BLK DECAL, EPA CERT, ZTRS (Located on frame near Serial Tag) 5103055 CLAMP, 3" ID, CUSHIONED, STAINLESS 5025299X6 SCREW, 1/4-20 X 3/4 ALLEN BH 5025391...

  • Page 14: Engine & Pto Group

    Engine & PTO Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 15 Item Part No Description 5100907 MUFFLER, B&S-ELS 22-26HP 5050407X8 KEY, 1/4 SQ. X 1.00 5101337 PULLEY, PUMP DRIVE, 4.857 OB X 1" BORE 5102865 BOLT, CRANKSHAFT, 7/16 X 2-3/4 5048681 HOSE, OIL DRAIN 5100915 CLUTCH, # 5219-34A, ELECTRIC, IS500Z 5403009D ANCHOR, CLUTCH - RED 44P777-0124-G1 1 * ENGINE, 26HP B&S, ELS (44P777-0124-G1) (26HP MODELS ONLY)

  • Page 16: Motion Control Group

    Motion Control Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...

  • Page 17: Motion Control Group

    Item Part No Description 5022068 GRIP, FOAM, 3/4 ID, 16 LONG 5402862D NEUTRAL LOCK, SNAPPER PRO 36-44 5402984D SWITCH PLATE, MOTION CONTROLS 5047004 MOUNT, CONTROL ARM 5025127 16 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL) 5025011X8 BOLT, 5/16-18 X 1 GD5 YZ 5025154 12 WASHER, 1/4 SAE 5021146...

  • Page 18: Parking Brake Group

    Parking Brake Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...

  • Page 19: Parking Brake Group

    Item Part No Description 5025010X5 BOLT, 1/4-20 X 5/8 GD5 YZ 5025391 NUT, 1/4-20 HEX NYLOCK FLANGE 5025013X18 BOLT, 3/8-16 X 2-1/4 GD5 YZ 5025394 NUT, 3/8-16 HEX NYLOCK FLANGE 5025213X8 PIN, CLEVIS, 5/16 X 1 YZ 5025211 PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ 5020047 COLLAR, 5/16"...

  • Page 20: Pump Drive Group

    Pump Drive Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...

  • Page 21: Pump Drive Group

    Item Part No Description 5042658 SPACER, .39 X .75 X 1.06 5020876B BUSHING, BRASS, 3/4 X 1 X 1 5101379 PULLEY, IDLER, STATIONARY 5101380 PULLEY, IDLER, ADJUSTABLE 5025013X22 BOLT, 3/8-16 X 2-3/4" GD5 YZ (S/N: 2013134300 & Below) 5047408 SPACER, .39 X .75 X .50 (S/N: 2013134300 & Below) 5025394 NUT, 3/8-16 HEX NYLOCK FLANGE 1715435...

  • Page 22: Hydraulic Group

    Hydraulic Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...

  • Page 23: Hydraulic Group

    Item Part No Description 5101024 TRANSMISSION, RH HYDRO-GEAR 5101025 TRANSMISSION, LH, HYDRO-GEAR 5101138 5101138, ROD, DUMP CONTROL LH 5101139 ROD, DUMP CONTROL, RH 5047408 SPACER, .39 X .75 X .50 5025011X22 BOLT, 5/16-18 X 2-3/4, GD 5, YZ 5025392 NUT, 5/16-18 HEX NYLOCK FLANGE 5025155 WASHER, 5/16 SAE 5025010X6...

  • Page 24: Rear Bumper Group

    Rear Bumper Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...

  • Page 25: Rear Bumper Group

    Item Part No Description 5025158 WASHER, 1/2 SAE 5025017X12 BOLT, 1/2-13 X 1-1/2 GD5 YZ 5025396 NUT, 1/2-13 HEX NYLOCK FLANGE 5025155 WASHER, 5/16 SAE 5025011X6 BOLT, 5/16-18 X 3/4 GD5 5025392 NUT, 5/16-18 HEX NYLOCK FLANGE 5403018D PLATE, CARB GUARD - RED 5403573D WELD, PLATE, BUMPER - RED 5403593D...

  • Page 26: Decals - Brand & Model

    Decals - Brand & Model Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 27 Item Part No Description 5102031 DECAL, LOGO, 500Z (Was 5101456 (LH) and 5101449 (RH)) 5101458 DECAL, 48-INCH MOWER 5101457 DECAL, 500Z 26HP MODEL 5101445 DECAL, SNAPPER, FRONT Footnotes: 26 & 27 HP HYDRO DRIVE 500Z Decals - Brand & Model Manual No.

  • Page 28: Decals - Safety & Operational

    Decals - Safety & Operational Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 29 Item Part No Description 5100710 DECAL, MAIN 1704277 DECAL, DANGER, MOWER DISCHARGE 1704276 DECAL, DANGER, MOWER 5020337 DECAL, WARNING 5100280 DECAL, THROTTLE CONTROL 5046503 DECAL, FUSE LOCATION 5100957 DECAL, HYDRAULIC OIL, SAE 20W50 5048970 DECAL, IGNITION SWITCH 5100342 DECAL, FUEL VALVE 5101649 DECAL, BELT &...

  • Page 30: Deck Lift Group

    Deck Lift Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...

  • Page 31: Deck Lift Group

    Item Part No Description 5025013X12 BOLT, 3/8-16 X 1-1/2 GD5 YZ 5403016D WELD, DECK HEIGHT ADJUSTMENT - RED 5023174 CLEVIS, 1/2-20, STEEL 5100634 PIVOT BLOCK, PLASTIC 5023257 BUSHING, .38 X .88 X .73 5402970D WELD, PULLER BAR - RED 5025396 NUT, 1/2-13 HEX NYLOCK FLANGE 5100548 WASHER, .390 X 1.50 X .109, YZ...

  • Page 32: Mower Deck Group - Pulleys, Belts & Idler Arm

    48" Mower Deck Group - Pulleys, Belts & Idler Arm Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 33 Item Part No Description 5023340 SPRING, EXTENSION, SWIVEL END 5023175 PULLEY, 5.72., 48 DECK 5025406 WASHER, 3/4 BELLEVILLE 5025405 NUT, 3/4-16 HEX 5047142 SPACER, .52 X 1.25 X .70 5021976 PULLEY, IDLER 6-3/4 5045106D WELD, IDLER ARM - RED - 5401621D (SV) (INCLUDES REF NOS 8 & 18) 5021541 BUSHING, FLANGE 5044673...

  • Page 34: Mower Deck Group - Housing, Covers, Spindles & Blades

    48" Mower Deck Group - Housing, Covers, Spindles & Blades Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 35 Item Part No Description 5403532D GUARD, 48" MOWER DECK, LH 5403531D GUARD, 48" MOWER DECK, RH 5022308 BODY CLIP 5/16-18 X 1/2" DEEP 5025155 WASHER, 5/16 SAE 5025011X6 BOLT, 5/16-18 X 3/4 GD5 5025159 WASHER, 5/8 USS 5025320X14 BOLT, 5/8-11 X 1-3/4 GR8 5401271D WELD, DISCHARGE BAFFLE, 48"...

  • Page 36: Mower Deck Group - Hanger Chains

    48" Mower Deck Group - Hanger Chains Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 37 Item Part No Description 5047503 HANGER, FRONT DECK - 2 LINKS 5050878X3 CHAIN, 5/16" GD30, 3 LINKS 5025158 WASHER, 1/2 SAE 5025038 NUT, 1/2-13 HEX 5025396 NUT, 1/2-13 HEX NYLOCK FLANGE 5025156 12 WASHER, 3/8 SAE 5025128 NUT, 3/8-16 HEX SERRATED FLANGE 5025084 NUT, 3/8-16 HEX JAM 5025013X14...

  • Page 38: Mower Deck Group - Rollers

    48" Mower Deck Group - Rollers Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 39 Item Part No Description 5041931 SPACER, .38 X .50 X 1.25 5025013X28 BOLT, 3/8-16 X 3-1/2 GD5 YZ 1714760 WHEEL, 2.00 WIDE 3.92 DIA 0.513 ID POLY 5047027 SPACER, .51 X .75 X .56 5025394 NUT, 3/8-16 HEX NYLOCK FLANGE 5025156 WASHER, 3/8 SAE Footnotes:...

  • Page 40: Instrument & Control Panel Group

    Instrument & Control Panel Group Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 41 Item Part No Description 1709188 PLUG, .820X1.44 HOLE, BLACK PLASTIC 5021887 CABLE, THROTTLE CONTROL, 45 5022180 SWITCH, BLADE ENGAGEMENT 5022222 RING, SWITCH RETAINER 5100996 HOUR METER, W/ SUPRESSOR 5402918A CONTROL PANEL, LEFT - BLK 5403274A CONTROL PANEL, RIGHT - BLK 1737853 SWITCH ASSEMBLY, IGNITION INDAK NO KEYS/HDWR 5022269...

  • Page 42: Wiring Schematic - 26Hp & 27Hp Briggs & Stratton

    Wiring Schematic - 26HP & 27HP Briggs & Stratton Manual No. 5101455 26 & 27 HP HYDRO DRIVE 500Z...
  • Page 43 Item Part No Description 5403426 HARNESS, Main Wiring Footnotes: 26 & 27 HP HYDRO DRIVE 500Z Wiring Schematic - 26HP & 27HP Briggs & Stratton Manual No. 5101455...
  • Page 48 Parts Manual for 26 & 27 HP HYDRO DRIVE MID-MOUNT ZTR 500Z IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs &...
