Grizzly g0566b Manual Insert

the Model g0531B/g0566B is the same as the Model g0566, except it has a magnetic brake motor, resaw
fence, and square fence rail. Besides the instructions, data sheet, circuit requirements, parts, and wiring
diagram in this insert, the content in the Model g0566 owner's manual is the same for both machines.
Before operating your new machine, you Must read and understand this insert and the entire Model g0566
manual to reduce the risk of injury from improper use or setup.
If you have any further questions about this manual insert or the differences between the Model g0531B/
g0566B and the Model g0566, contact our Technical Support at (570) 546-9663 or email techsupport@
grizzly.com.

machine inventory

after all the parts have been removed from the
crate, you should have the following items:

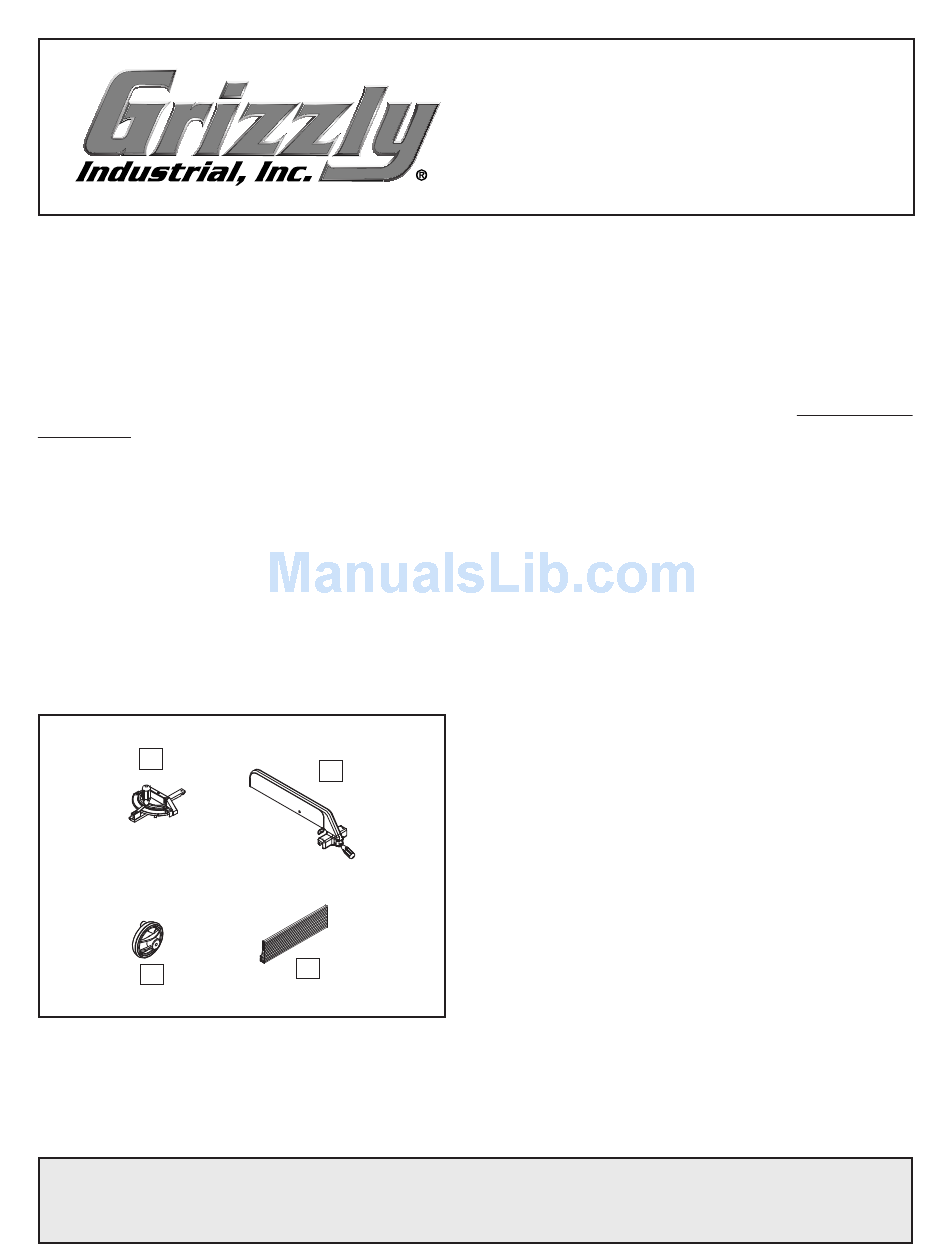

crate contents (figure 1):
a. Bandsaw (not shown) ................................. 1
b. Miter gauge ................................................ 1
c. Fence.......................................................... 1
d. resaw Fence ............................................. 1
e. guide post handwheel............................... 1
B
e
figure 1. g0531B/g0566B inventory.
Warning: no portion of this manual may be reproduced in any shape
or form Without the Written approval of grizzly industrial, inc.
Qty
C
d
Copyright © june, 2008 By grizzly industrial, inC.
#Bl10789 printed in taiWan
model g0531b/g0566b
21" bandsaW
w/motor braKe
manual insert
hardware and tools (not shown)
hex Wrench 5mm .............................................. 1
hex Wrench 6mm .............................................. 1
open end Wrench 10 x 13 ................................ 1
open end Wrench 17 x 19 ................................ 1
lifting rings ....................................................... 2
resaw Fence lock handle M8-1.25 x 44
(Fence) .............................................................. 1
Moving plate M8-1.25 (Fence) .......................... 1
Flat Washer 8mm (Fence) ................................ 1

installing fence

components and hardware needed:
Fence assembly ................................................ 1
resaw Fence assembly .................................... 1
resaw Fence lock handle M8-1.25 x 44 ......... 1
Moving plate M8-1.25 ....................................... 1
Flat Washer 8mm .............................................. 1
to install the fence:
1.
remove the cap screw, knobs, and washers
that hold the rail onto the table, then remove
the rail.
2. Flip the rail over and reinstall with the fast-
ners removed in step 1.
3. install the fence handle on the fence, if it is
not already installed.
Qty
Qty
