Grizzly G0568 User Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
The following changes were recently made to this machine since the owner's manual was printed:
G0568 Parts Revision for Machines Mfr Since 07/13
• Motor and wiring changed.
• Motor full-load amperage changed from 30A to 23A.
Aside from this information, all other content in the owner's manual applies and MUST be read and under-
stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.
For questions or help, contact our Tech Support at (570) 546-9663 or techsupport@grizzly.com.
REF PART # DESCRIPTION
23V3 P0568023V3 MOTOR 5HP 220V 1-PH V3.07.13
23V3-1 P0568023V3-1 FAN COVER
23V3-2 P0568023V3-2 FAN
23V3-3 P0568023V3-3 S CAPACITOR 300M 250V 1-3/4 X 3-13/16
23V3-4 P0568023V3-4 R CAPACITOR 45M 450V 2 X 4-3/8
23V3-5 P0568023V3-5 MOTOR JUNCTION BOX
23V3-6 P0568023V3-6 CONTACT PLATE
COPYRIGHT © JULY, 2013 BY GRIZZLY INDUSTRIAL, INC. REVISED MARCH, 2015 (BL)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

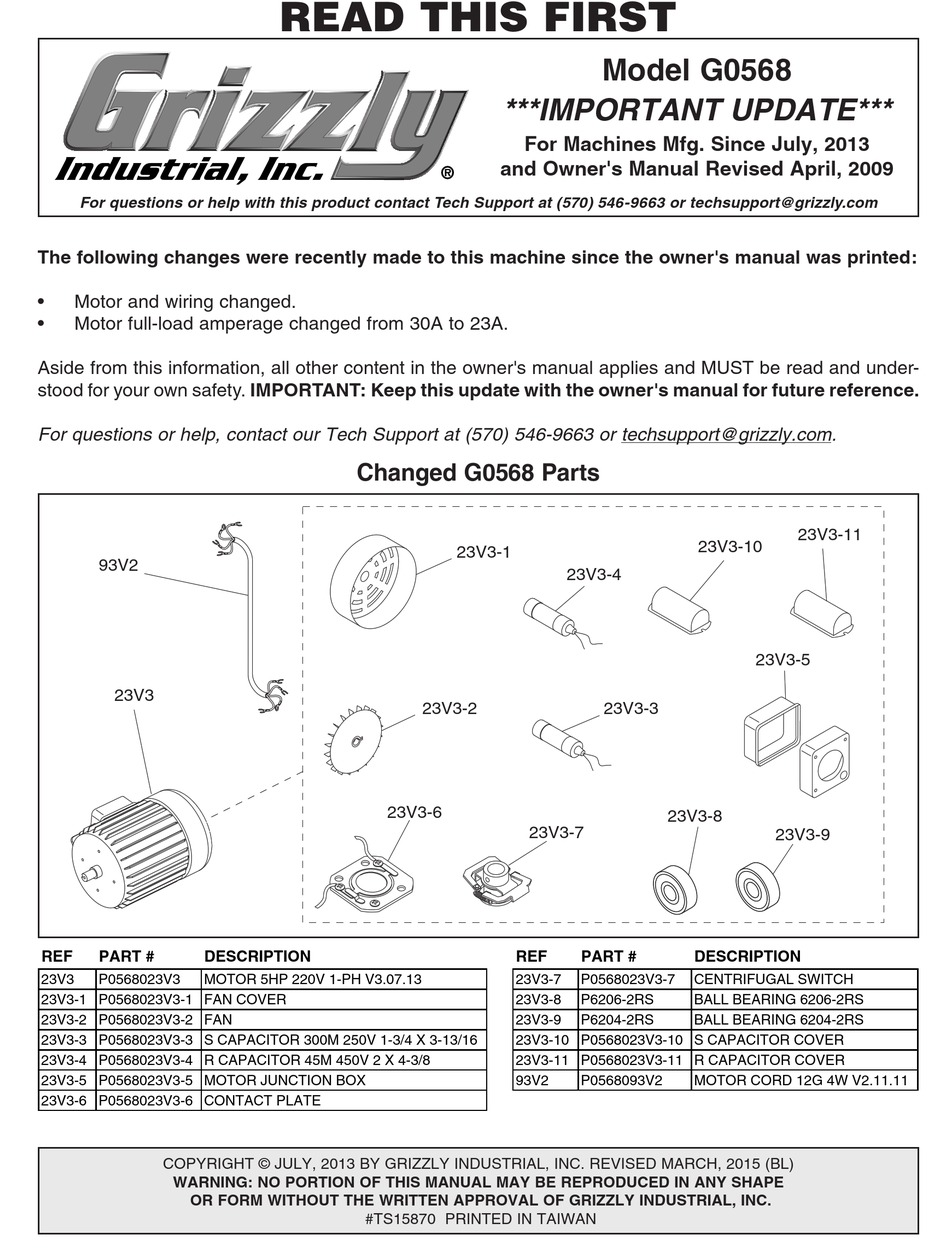

READ THIS FIRST
Changed G0568 Parts
23V3-1
23V3-2
23V3-6
#TS15870 PRINTED IN TAIWAN
Model G0568
***IMPORTANT UPDATE***
For Machines Mfg. Since July, 2013
and Owner's Manual Revised April, 2009
23V3-4
23V3-3
23V3-8
23V3-7
REF PART #
23V3-7 P0568023V3-7
23V3-8 P6206-2RS
23V3-9 P6204-2RS
23V3-10 P0568023V3-10 S CAPACITOR COVER
23V3-11 P0568023V3-11 R CAPACITOR COVER
93V2 P0568093V2
23V3-11
23V3-10
23V3-5
23V3-9
DESCRIPTION
CENTRIFUGAL SWITCH
BALL BEARING 6206-2RS
BALL BEARING 6204-2RS
MOTOR CORD 12G 4W V2.11.11
