Giant GXR Series Operating Instructions/ Repair And Service Manual

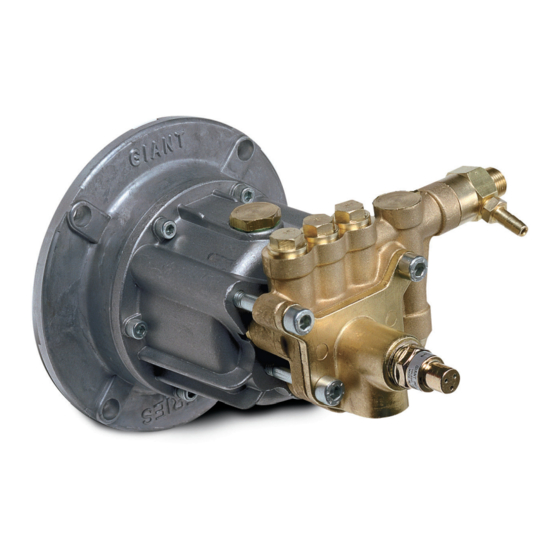

Triplex plunger pump
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Model
GXR Series
Triplex
Plunger Pump
Operating Instructions/
Repair Instructions
Manual
Consumer Pump
Horizontal/Vertical Pump
with built-in Regulator,
Thermal Relief Valve and
Siphon Injector
Contents:
Warranty Information:
page 3
page 4
page 5
page 5
pages 6-7
back page
back page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GXR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Giant GXR Series

Summary of Contents for Giant GXR Series

  • Page 1: Table Of Contents

    Triplex Plunger Pump Model Operating Instructions/ Repair Instructions Manual GXR Series Consumer Pump Horizontal/Vertical Pump with built-in Regulator, Thermal Relief Valve and Siphon Injector Contents: Installation Instructions: page 2 Pump Specifications: page 3 Exploded View/Kits: page 4 Parts List: page 5 Torque Specifications: page 5 Repair Instructions:...

  • Page 2: Installation Instructions

    INSTALLATION INSTRUCTIONS Installation of the Giant Industries, Inc., pump is not a complicated procedure, but there are some basic steps common to all pumps. The following information is to be considered as a general outline for instal- lation. If you have unique requirements, please contact Giant Industries, Inc. or your local distributor for assistance.

  • Page 3: Pump Specifications

    Specifications Model GXR Series GXR2224 ....................2.2 GPM @ 2400 PSI GXR2424 ....................2.4 GPM @ 2400 PSI Maximum Inlet Pressure...............Up to 90 PSIG RPM ......................3450 Plunger Diameter ..................16mm Stroke GXR2224 ..................4.7mm (6.1 angle) Stroke GXR2424 ..................5.1mm (6.3 angle) Crankcase Oil Capacity ................4.7 fl. oz. (4.1 fl.oz. horizontal) Temperature of Pumped Fluids ............Up to 80 Inlet Port ....................1/2"...

  • Page 4: Exploded View/Kits

    GXR SERIES EXPLODED VIEW Plunger Packing Kit Oil Seal Kit # 09465 # 09468 Item Part # Description Qty. Item Part # Description Qty. 06290 Support Ring 06316 Plunger Oil Seal 3 06315 V-Sleeve Regulator Repair Kit Valve Assembly Kit # 09534 # 09466 Item...

  • Page 5: Parts List

    GXR SERIES PARTS LIST GXR SERIES TORQUE SPECIFICATIONS Position Item# Description Torque Amount (ft.-lbs) 06299 Socket Bolt 100 in.-lbs. 06302 Stud Bolt 150 in.-lbs.

  • Page 6: Repair Instructions: Pages

    REPAIR INSTRUCTION - GXR SERIES 1. With a 14mm socket wrench, 3. With a crescent wrench, re- 2. Remove the valve spring remove the three discharge move the injector retainer (18) and valve cone (36) valve plugs (27). Inspect (47). Inspect the o-ring (46) from the manifold (35).
  • Page 7 13. Reassemble in reverse order. Fill the crankcase with the pump, contact your local distributor or proper amount of oil (see Giant Industries at: 419/531-4600 specifications page The pump is now ready for operation. NOTE: Contact Giant Industries for Service School Information. Phone: (419)-531-4600...

  • Page 8: Dimensions

    GXR Series Dimensions (inches) GIANT INDUSTRIES LIMITED WARRANTY GIANT INDUSTRIES, INC., 900 N. Westwood Ave., P.O. Box 3187, Toledo, Ohio 43607 PHONE (419) 531-4600, FAX (419) 531-6836, www.giantpumps.com 08/2001 GXR.PM6 Ó Copyright 2001 Giant Industries, Inc.
