Unpacking the Touchmonitor
Open the carton and verify the following items are present:
 Touchmonitor with protective sheet for its face
 Elo TouchTools CD
 Quick Install Guide
 Japanese language regulatory information pamphlet
 DVI cable
 VGA cable
 USB cable
 Audio cable
 AC-DC power adapter
 North America, Europe/Korea, United Kingdom, Taiwan, China, Korea, & Japan power cables
 3-pin to 2-pin adapter for Japan power cable

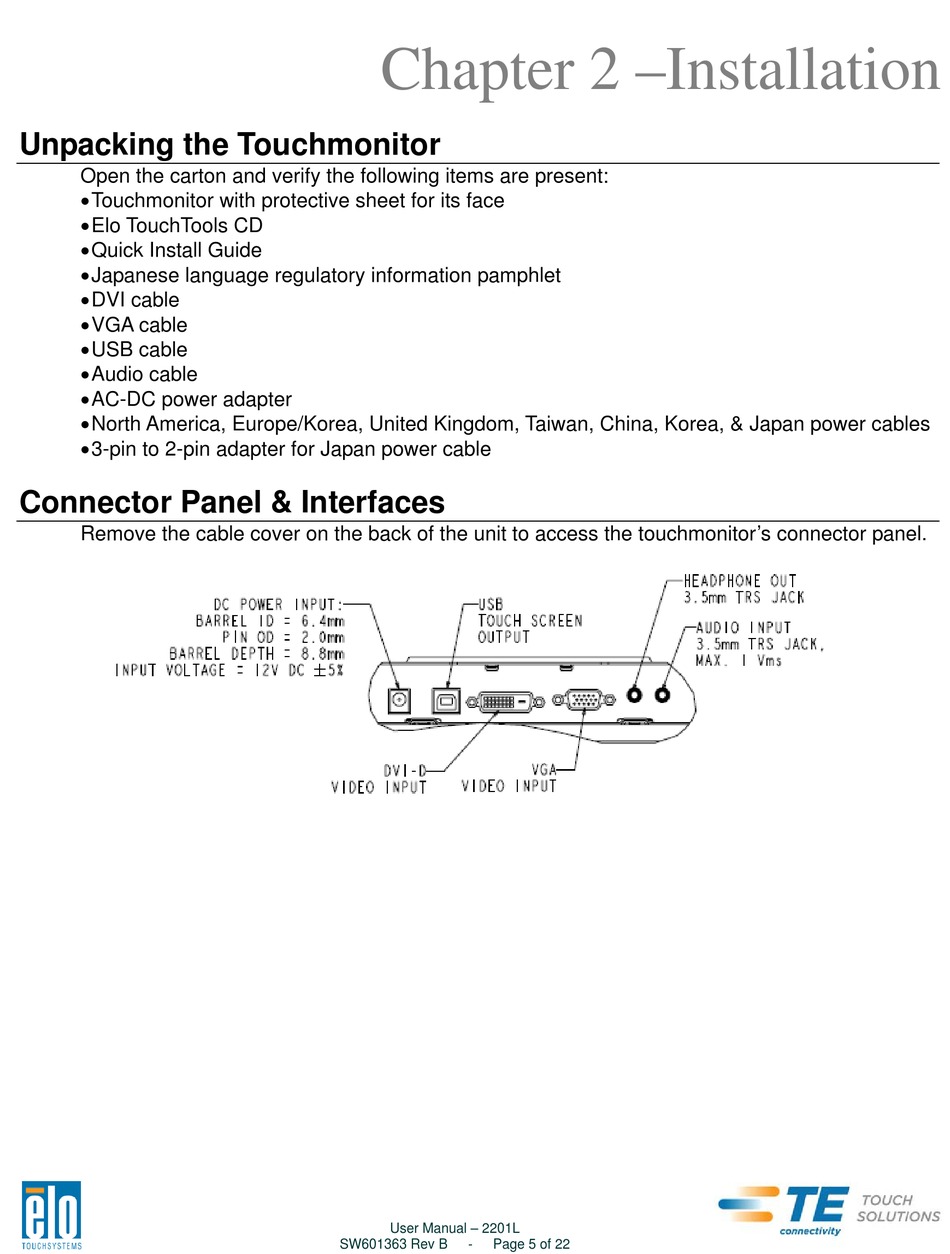

Connector Panel & Interfaces
Remove the cable cover on the back of the unit to access the touchmonitor's connector panel.
