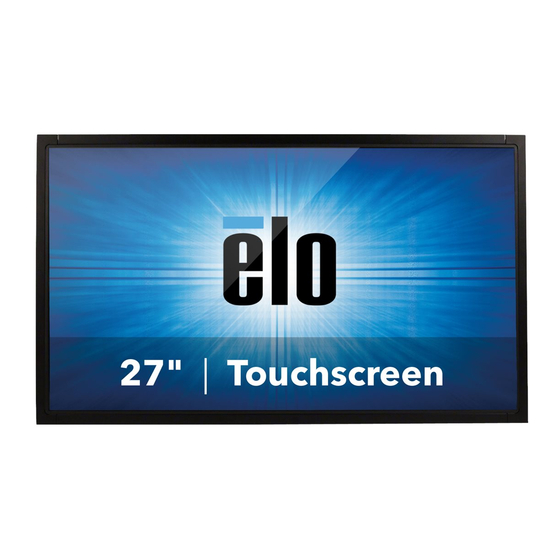

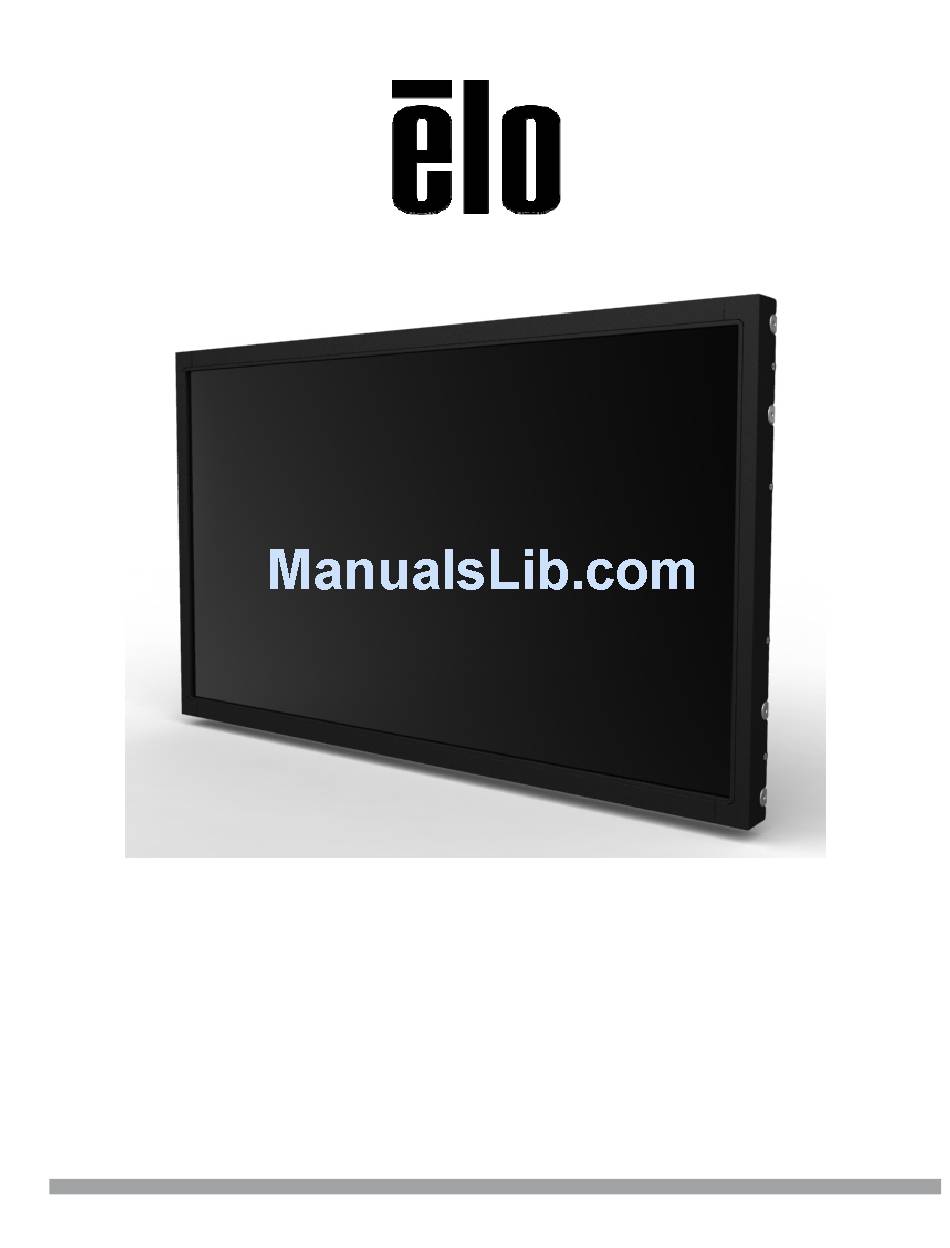

- Page 1 USER MANUAL Elo Touch Solutions 2740L Touchmonitors SW602096 Rev A...
- Page 2 Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Afffiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
-
Page 3: Table Of Contents
Chapter 4: Operation ..................... 12 Chapter 5: Technical Support ................17 Chapter 6: Safety & Maintenance ..............19 Chapter 7: Regulatory Information ..............21 Chapter 8: Warranty Information ............... 25 User Manual: 2740L SW602096 Rev A, Page 3 of 27... -
Page 4: Chapter 1: Introduction
Chapter 1: Introduction Product Description Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch products with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between a user and the touchmonitor. -
Page 5: Chapter 2: Installation
• Japanese language regulatory information pamphlet • Quick Install Guide • VGA cable • DVI cable • USB cable (not available for ET2740L-0NXX models) • Mounting brackets • OSD remote User Manual: 2740L SW602096 Rev A, Page 5 of 27... -
Page 6: Touchmonitor Connections
(Not applicable for ET2740L-0NXX models) 3. Connect a 12VDC power supply to the monitor’s input power jack. 4. The touchmonitor ships in an ON state, video should be displayed on your monitor already. User Manual: 2740L SW602096 Rev A, Page 6 of 27... - Page 7 • Additional touch driver information • Detailed touch driver installation guides • Touch drivers for other operating systems Select the applicable driver from the Elo Touch Solutions website and download: User Manual: 2740L SW602096 Rev A, Page 7 of 27...
- Page 8 For Windows XP installations, install the “USB Touchscreen Drivers” when prompted: User Manual: 2740L SW602096 Rev A, Page 8 of 27...
- Page 9 For Windows 7 installations, check the “Install driver” box under “Elo USB Interfaces – Other Touchscreens” After accepting the end-user license agreement, the drivers will finish installing. Reboot your computer after the install is complete. User Manual: 2740L SW602096 Rev A, Page 9 of 27...
-
Page 10: Chapter 3: Mounting
The OSD text can be rotated through the OSD menu to better suit your mounting orientation. Side Bracket Mount Threaded holes are provided on the sides of the monitor for mounting using the provided brackets. Rear VESA Mount User Manual: 2740L SW602096 Rev A, Page 10 of 27... - Page 11 A four-hole 200x100mm mounting pattern for M4 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-E, C. User Manual: 2740L SW602096 Rev A, Page 11 of 27...
-
Page 12: Chapter 4: Operation
When connected to Windows 7 computers, the touchmonitor can report two simultaneous touches. The IntelliTouch Plus touchscreen can be re-calibrated to your displayed video image, if needed, through the Calibration function in the Elo driver control panel. User Manual: 2740L SW602096 Rev A, Page 12 of 27... - Page 13 To use multiple IntelliTouch Plus monitors, double click on the EloConfig desktop shortcut to open up the Elo Touchscreen Configuration screen. Select “Match Touch to Display…” to calibrate multiple monitors. User Manual: 2740L SW602096 Rev A, Page 13 of 27...
-
Page 14: Gesture Support
Preset Video Modes. On-Screen Display (OSD) Four OSD buttons are located on a wired control box. These can be used to adjust various display parameters. User Manual: 2740L SW602096 Rev A, Page 14 of 27... - Page 15 Moves the image horizontally on the display in single-pixel increments. H-position Default: centered. Only applicable for VGA input video Moves the image vertically on the display in single-pixel increments. Default: centered. V-position Only applicable for VGA input video User Manual: 2740L SW602096 Rev A, Page 15 of 27...
- Page 16 This feature saves you from having to reset your choices every time the touchmonitor is unplugged or powered off and on. If there is a power failure, the touchmonitor settings will not default to the factory specifications. User Manual: 2740L SW602096 Rev A, Page 16 of 27...
- Page 17 Press and hold the “Menu” and “Down” buttons for two seconds to enable/disable the Power Locking feature. When the Power Locking is enabled, pressing the power switch will have no effect on the system. User Manual: 2740L SW602096 Rev A, Page 17 of 27...
-
Page 18: Chapter 5: Technical Support
If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Worldwide technical support phone numbers are available on the last page of this use manual. -
Page 19: Technical Assistance
Visit www.elotouch.com/products for technical specifications for this device Visit www.elotouch.com/go/websupport for online self-help. Visit www.elotouch.com/go/contactsupport for technical support. See this user manual’s last page for worldwide technical support phone numbers. User Manual: 2740L SW602096 Rev A, Page 19 of 27... -
Page 20: Chapter 6: Safety & Maintenance
Never apply the cleaner directly to the touchscreen. Do not use alcohol (methyl, ethyl or isopropyl), thinner, benzene, or other abrasive cleaners. Ensure the environmental temperature and humidity are maintained within specification and do no block ventilation slots. Monitors are not designed for outdoors. User Manual: 2740L SW602096 Rev A, Page 20 of 27... - Page 21 Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual: 2740L SW602096 Rev A, Page 21 of 27...
-
Page 22: Chapter 7: Regulatory Information
This Information Technology Equipment (ITE) is required to have a CE Mark on the Manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark User Manual: 2740L SW602096 Rev A, Page 22 of 27... - Page 23 (Removing or cutting the line cord ground may in crease RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. User Manual: 2740L SW602096 Rev A, Page 23 of 27...
- Page 24 X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this component is above the limit requirement in SJ/T11363-2006. For items marked with X, exemptions were taken according to EU RoHS. User Manual: 2740L SW602096 Rev A, Page 24 of 27...
- Page 25 Operating Conditions: Temperature: 0°C - 40°C Humidity: 20% to 80% (non-condensing) Altitude: 0 to 3,048m Storage Conditions: Temperature: -20°C - 60°C Humidity: 10% to 90% (non-condensing) Altitude: 0 to 12,192m User Manual: 2740L SW602096 Rev A, Page 25 of 27...
-
Page 26: Chapter 8: Warranty Information
Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability, claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable to Buyer’s products or representations or warranties concerning same. User Manual: 2740L SW602096 Rev A, Page 26 of 27... -
Page 27: Specifications
• Upcoming events • Press releases • Software drivers Getting in Touch with us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Tel 800-ELO-TOUCH...
