Chamberlain CSW200UL8 Manual

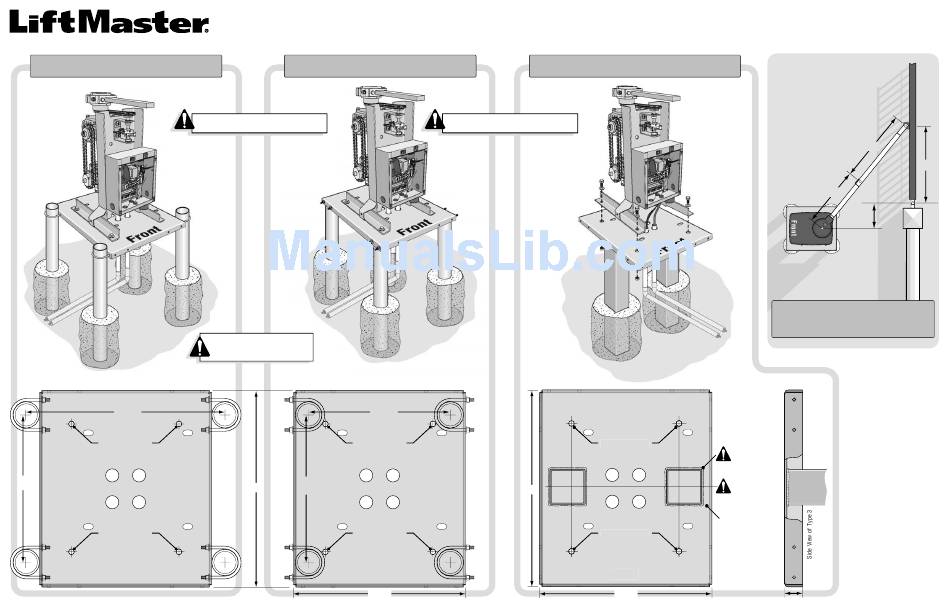

Type 1
3" Posts mounted on Outside
3" O.D. Heavy Walled Posts and U-Bolts
Top View of Type 1
22 ¼"
Mounting Holes
16 ½"
Mounting Holes
Front
Type 2
3" Posts mounted on Inside
Plate MUST be Level!
Cement posts in place. Depth
of posts determined by soil
conditions and local codes.
Power and control
wiring should be run
in separate conduits.
Distance between
posts are critical!
Not Provided
Top View of Type 2
15 ¾"
Mounting Holes
16 ½"
22"
Mounting Holes
Front
19 ¼"
Type 3
4" Square Posts welded on Inside
Plate MUST be Level!
Cement posts in place. Depth
of posts determined by soil
conditions and local codes.
Power and control
wiring should be run
in separate conduits.
Top View of Type 3
Mounting Holes Mounting Holes
22"
Mounting Holes
Front
19 ¼"
CSW200UL™ Series Mounting Plate
Model #MPEL
35.5"
Hinge
29.5"
Center
11"
Note: Refer to the instruction
manual for different installation
setups. Dimensions will vary.
Top View of Typical

Standard Installation

4" O.D. Heavy Walled
Square Posts
Not Provided
Weld Completely
around posts
Center posts
between
mounting holes.
Keep the posts
close to the
plate edge.
2"
46"
