Tube Component Assembly
BAFFLE INSTALLATION
1. Determine which baffle to use (See Chart).
2. Lift side discharge chute (H, Figure 1).
3. Insert baffle (F) through discharge opening and posi-
tion baffle into place.
4. Tighten carriage bolts (A) and Iocknut(s) (E) on baffle (F).
5. Tighten carriage bolt (B) and Iocknut(s) (E) on baffle (F).
6. Position baffle (G) into place.
7. Tighten carriage bolts (C) and Iocknut(s) (E) on baffle (G).
8. Tighten carriage bolts (D) and Iocknut(s) (E) on baffle (G).
44" Mower Deck 50" Mower Deck
RH side RH side
"A"
26-1/4" long 29-3/4" long
LH side LH side
"B"
24-7/8" long 27-3/4" long
A. Carriage Bolts,
5/16-18 x 518
B. Carriage Bolt,
5/16-18 x 518
C. Carriage Bolts,
5/16-18 x 518
D. Carriage Bolts,
5/16-18 x 518
E. Locknuts, 5/16-18
F. Right Hand Baffle
G. Left Hand Baffle
H. Discharge Chute

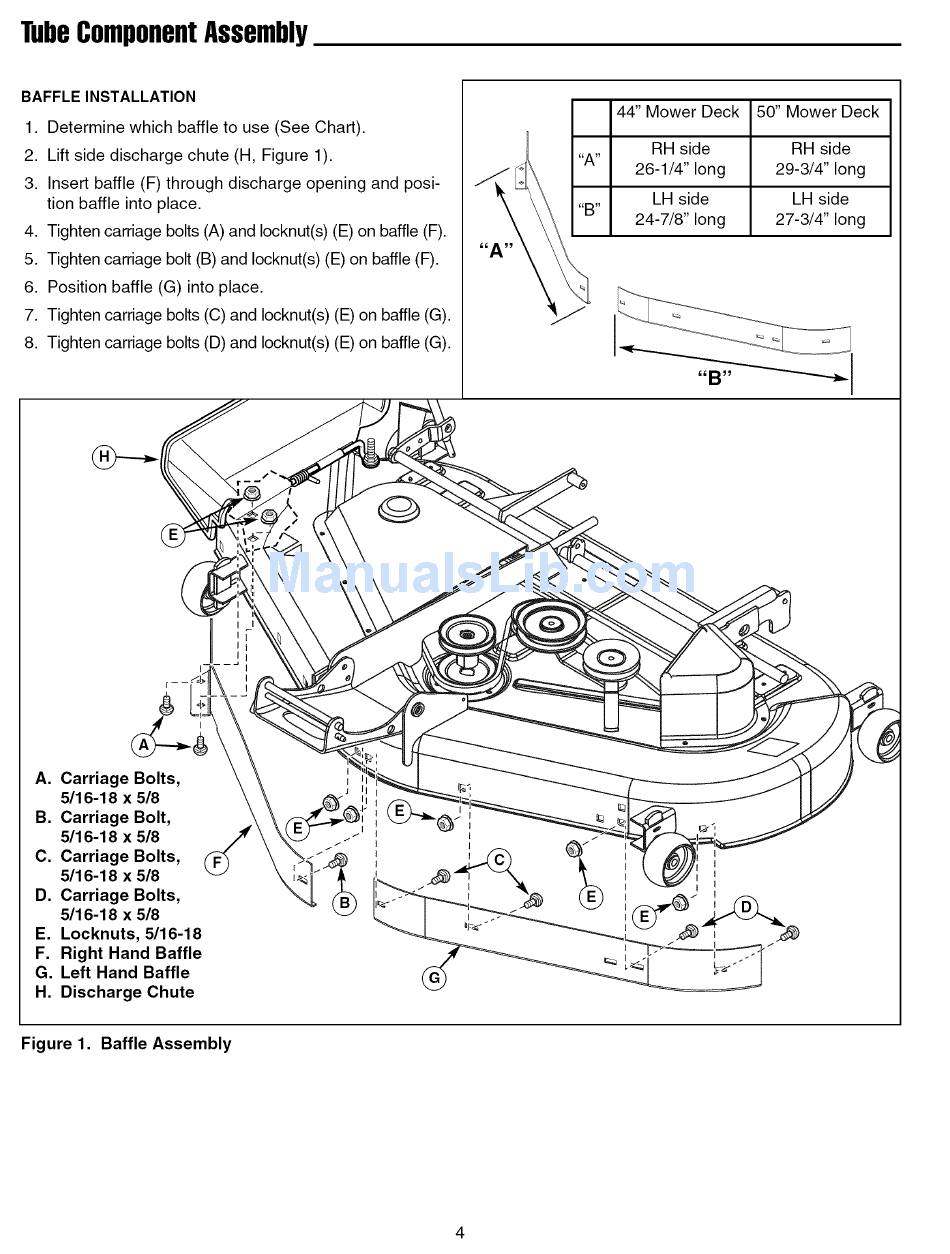

Figure 1. Baffle Assembly
