CollectorInstallation andRemoval
A. Hitch Support Assembly J. Deflector
B. Cover K. Nut & Capscrew
C. Pins L. Mounting Plate
D. Hair Pins M. Lower Chute Rod
E. Bag N. Lower Chute
F. Grass Bag Hanger O. Pin
G. U Tube P. Strap, Middle
H. Middle Tube Q. Ridge
I. Strap, Boot R. Ridge Cutout

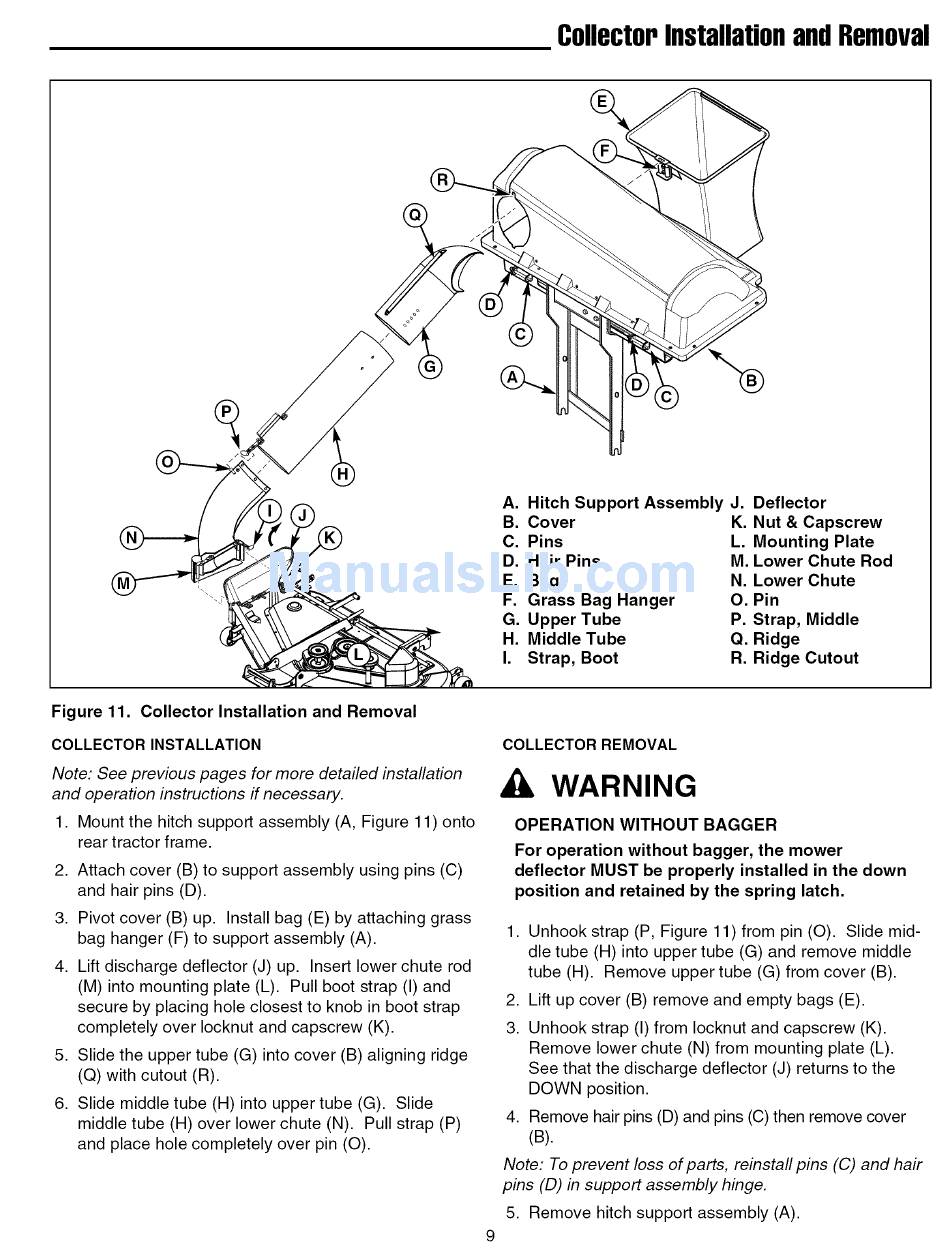

Figure 11. Collector Installation and Removal
COLLECTOR INSTALLATION
Note: See previous pages for more detailed installation
and operation instructions ff necessary,
1. Mount the hitch support assembly (A, Figure 11) onto
rear tractor frame.
2. Attach cover (B) to support assembly using pins (C)
and hair pins (D).
3. Pivot cover (B) up. Install bag (E) by attaching grass
bag hanger (F) to support assembly (A).
4. Lift discharge deflector (J) up. Insert lower chute rod
(M) into mounting plate (L). Pull boot strap (I) and
secure by placing hole closest to knob in boot strap
completely over Iocknut and capscrew (K).
5. Slide the upper tube (G) into cover (B) aligning ridge
(Q) with cutout (R).
6. Slide middle tube (H) into upper tube (G). Slide
middle tube (H) over lower chute (N). Pull strap (P)
and place hole completely over pin (0).
COLLECTOR REMOVAL
WARNING
OPERATION WITHOUT BAGGER
For operation without bagger, the mower
deflector MUST be properly installed in the down
position and retained by the spring latch.
9
1. Unhook strap (P, Figure 11) from pin (0). Slide mid-
dle tube (H) into upper tube (G) and remove middle
tube (H). Remove upper tube (G) from cover (B).
2. Lift up cover (B) remove and empty bags (E).
3. Unhook strap (I) from Iocknut and capscrew (K).
Remove lower chute (N) from mounting plate (L).
See that the discharge deflector (J) returns to the
DOWN position.
4. Remove hair pins (D) and pins (C) then remove cover
(B).
Note: To prevent loss of parts, reinstall pins (C) and hair
pins (D) in support assembly hinge,
5. Remove hitch support assembly (A).
